—————— TPD32-EV ——————
44

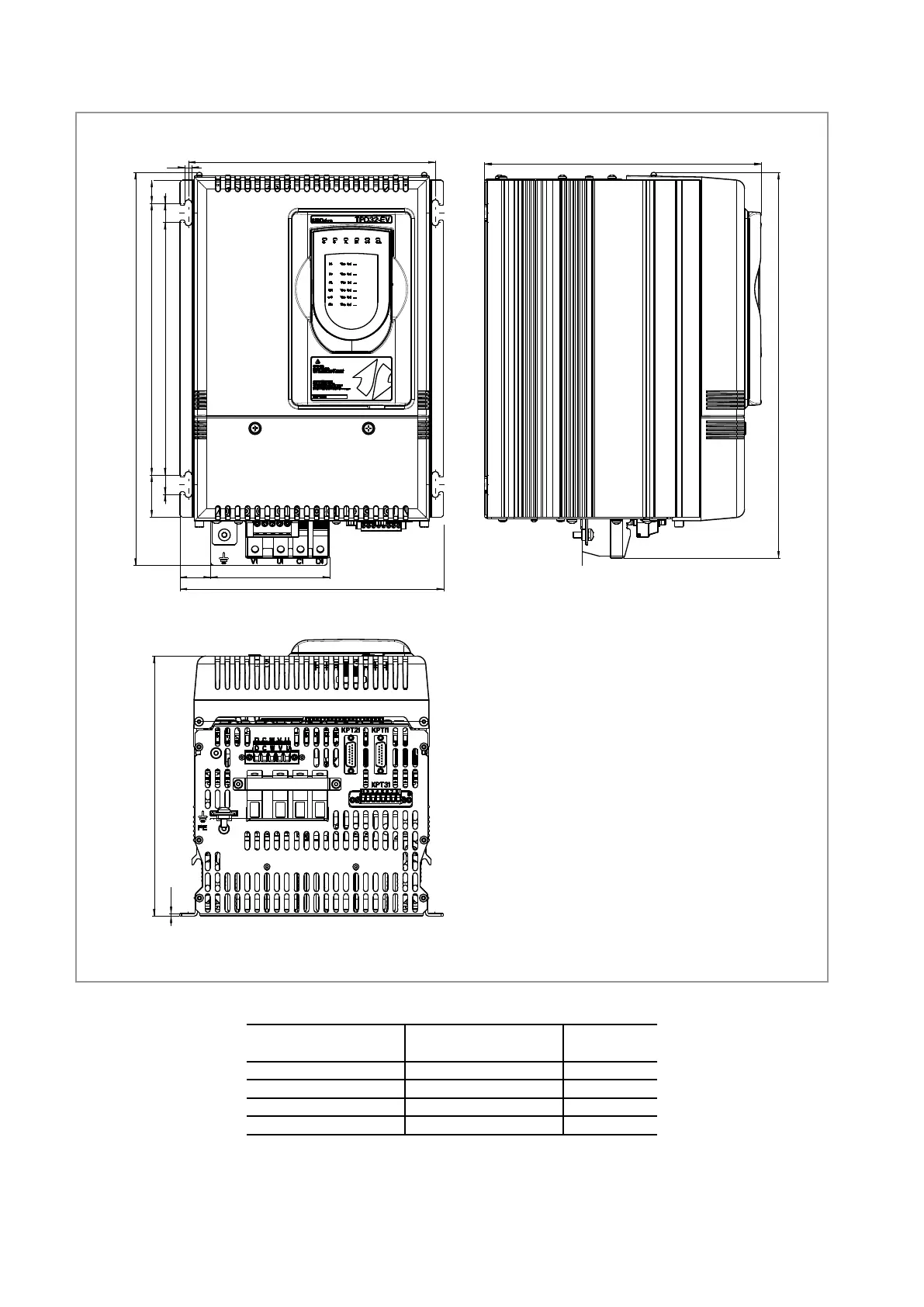

Figure 2.4.8: TPD32-EV-CU-... dimensions, External bridge control unit
7mm
250mm [9.8”]
19.5mm294.5mm
19.5mm
267mm [10.5”]
280mm [11”]
397.9mm [15.7”]
31mm 120.4mm
390.5mm
42.75mm 275mm
23.25mm
263mm
2.5mm
Model Type Weight
kg [lbs]
TPD32-EV-CU-.../...-THY1-40 A1 8.4 [18.5]
TPD32-EV-CU-.../...-THY2-40 A1 8.4 [18.5]
TPD32-EV-CU-.../...-THY1-70 A1 8.4 [18.5]
TPD32-EV-CU-.../...-THY2-70 A1 8.4 [18.5]
