2. Model Description

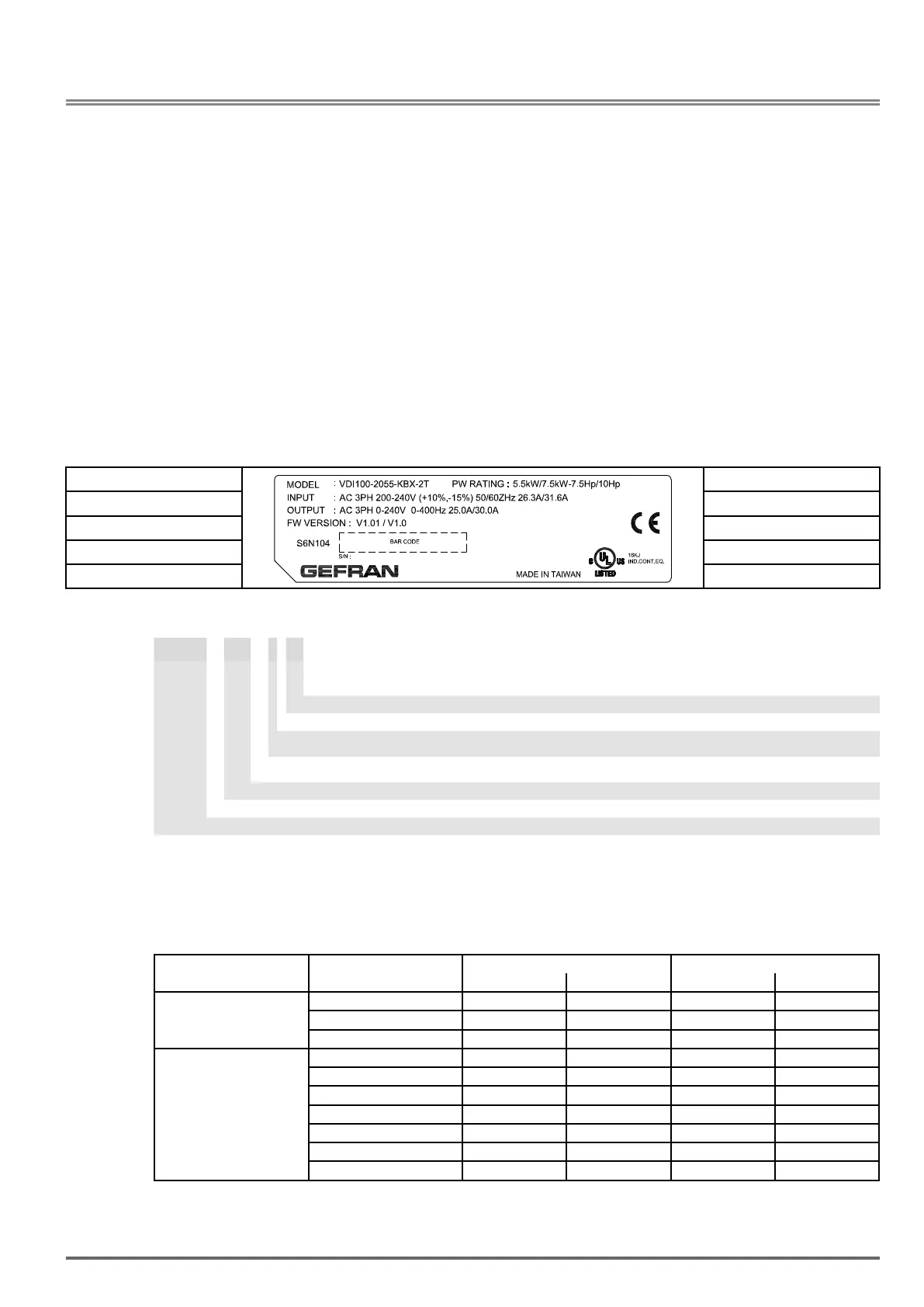

2.1. Nameplate Data
It is essential to verify the VDI100 inverter nameplate and make sure that the VDI100 inverter has the correct
rating so it can be used in your application with the proper sized AC motor.
Unpack the
VDI100 inverter and check the following:
(1) The
VDI100 inverter and start-up and installation manual are contained in the package.
(2) The
VDI100 inverter has not been damaged during transportation there should be no dents or parts miss-
ing.
(3) The
VDI100 inverter is the type you ordered. You can check the type and specications on the main name-
plate.
(4) Check that the input voltage range meets the input power requirements.
(5) Ensure that the motor
kW (HP) matches the motor rating of the inverter.
HD: Heavy Duty (Constant Torque); ND: Normal Duty (Variable Torque) (1HP = 0.746 kW)
Drive model ->
<- Power rating
Input and output data ->
<- Approvals
Serial number ->
ModelIdentication
VDI100-X XXX -KXX -X-Y
EMC Filter: F = included; [Empty] = not included
Rated voltage: 2T = 230 Vac,
(1ph)
(1)
/
3ph; 4 = 400 Vac , 3ph
Software: X = standard
Braking unit:
B = included; X = not included
Keypad: K = Integrated (LED keypad with 5-digits 7-segment
display)
Drive power, in kW
Mechanical drive sizes
VDI100 drive series
(1)
1ph / 3ph, VDI100-1007-KBX-2T ... VDI100-2022-KBX-2T only.
2.2. InverterModels–MotorPowerRating(HD–HeavyDuty)
230V Class
Voltage VDI100 Model Applied Motor Filter
(HP) (kW) with without
1ph / 3ph,
200~240V +10%/-15%,
50/60Hz
VDI100-1007-KBX-2T 1 0.75 •
VDI100-1015-KBX-2T 2 1.5 •
VDI100-2022-KBX-2T 3 2.2 •
3ph, 200~240V
+10%/-15%
50/60Hz
VDI100-2037-KBX-2T 5 3.7
•
VDI100-2055-KBX-2T 7.5 5.5 •
VDI100-3075-KBX-2T 10 7.5 •
VDI100-4110-KBX-2T 15 11 •
VDI100-4150-KBX-2T 20 15 •
VDI100-4185-KBX-2T 25 18.5 •
VDI100-5220-KXX-2T 30 22 •
Short Circuit Rating: 230V Class: 5kA
VDI100 • Instruction manual 11
