12 - Monitoring Parameters
Code Parameter Name / Range
12-00 Display screen selection (LED)
Highest
digit => 0 0 0 0 0 <= lowest digit
The value range of each digit is 0~7 from the highest to the lowest,
0: Default display (frequency&parameters)
1: Output current
2: Output voltage
3: DC bus voltage
4: Heatsink temperature
5: PID feedback
6: Analog Signal Input. (AVI)
7: Analog Signal Input. (ACI)
Note: The highest bit is used for power-up monitor. The 4 least significant bits can be used to customize the display se-
quence see chapter 4.1.3.
Code Parameter Name / Range
12-01 PID feedback display mode (LED)
0: Display the feedback value in integer (xxx)
1: Display the feedback value with one place after the decimal point (xx.x)
2: Display the feedback value (x.xx) with two places after the decimal point
12-02 PID feedback display unit setting (LED)
0: xxxxx (no unit)
1: xxxPb (pressure)
2: xxxFL (flow)

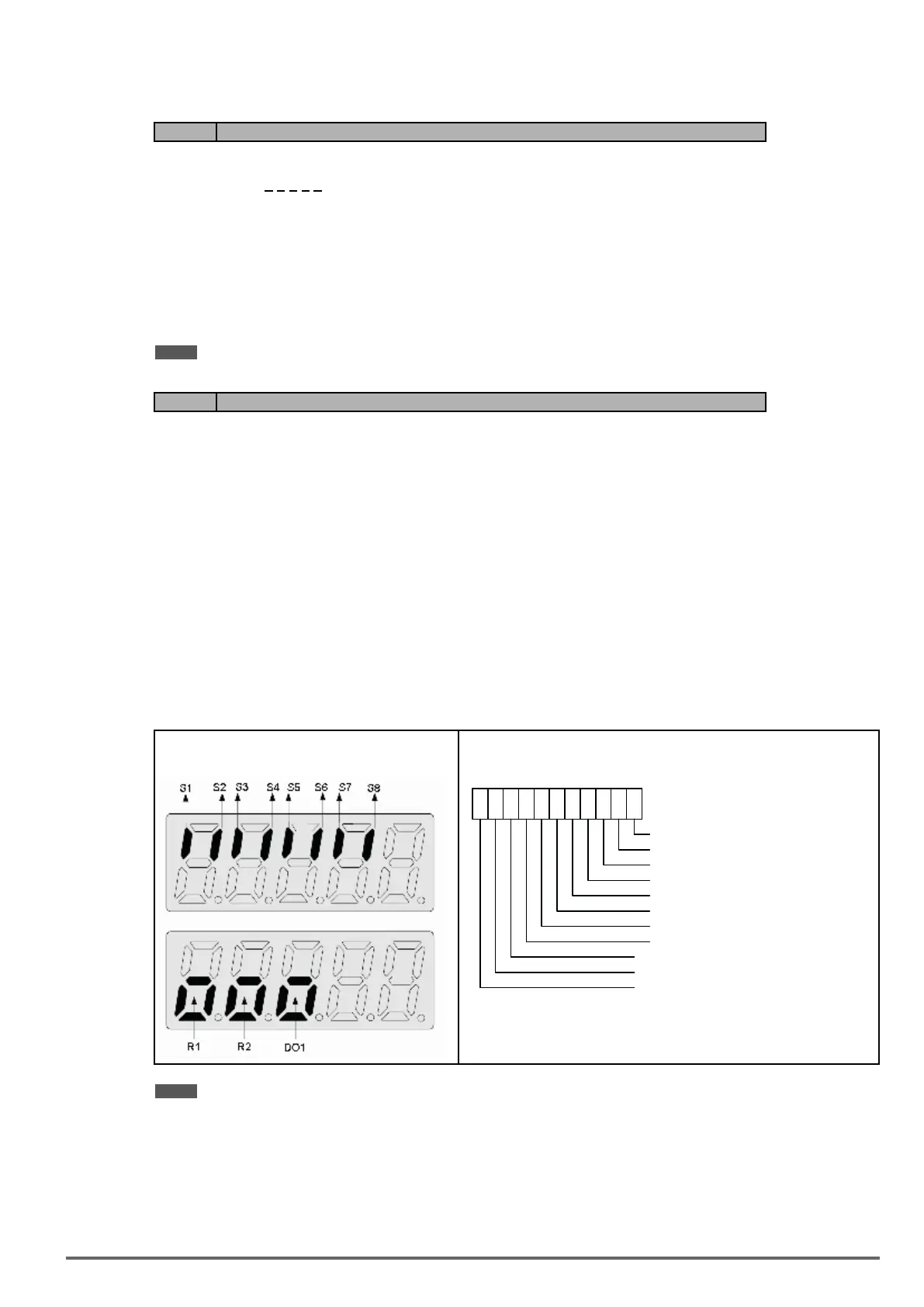

12-05 Status display of digital input terminal (LED / LCD)
Read-only
Terminals S1-S8 are represented using two segments of each digit. Segment turns on when input is active.
The bottom segments of each of the rst three digits are used to represent the digital outputs (R1, R2, DO1).
Segments turn on when output is active.
Example1:
S1~S8, R1, R2 and DO1 are ON
Example 2:
S1~S8, R1, R2 and DO1 are OFF
00 00 00 0 0
Input Terminal(S8)
Input Terminal(S7)
Input Terminal(S6)
Input Terminal(S5)
Input Terminal(S4)
Input Terminal(S3)
Input Terminal(S2)
Input Terminal(S1)
0: OPEN
1: CLOSE
000
Output Terminal(DO1)
Output Terminal(R2)
Output Terminal(R1)
Note: Refer to section 4.3 for monitors 12-11~12-64.
Monitoring parameter 12-66: Encoder Angle
Encoder PG pulse (20-27) is set to correct connection with the encoder wiring. Make the motor rotate forwardly
at non-run state and the angle will accumulate to 360°at two times; if make the motor rotate reversely, the angle
will regress to 360° at two times.
Monitoring parameter 12-67: Cumulative Energy (kWHr) & 12-68: Cumulative Energy (MWHr)
VDI100 • Instruction manual 239
