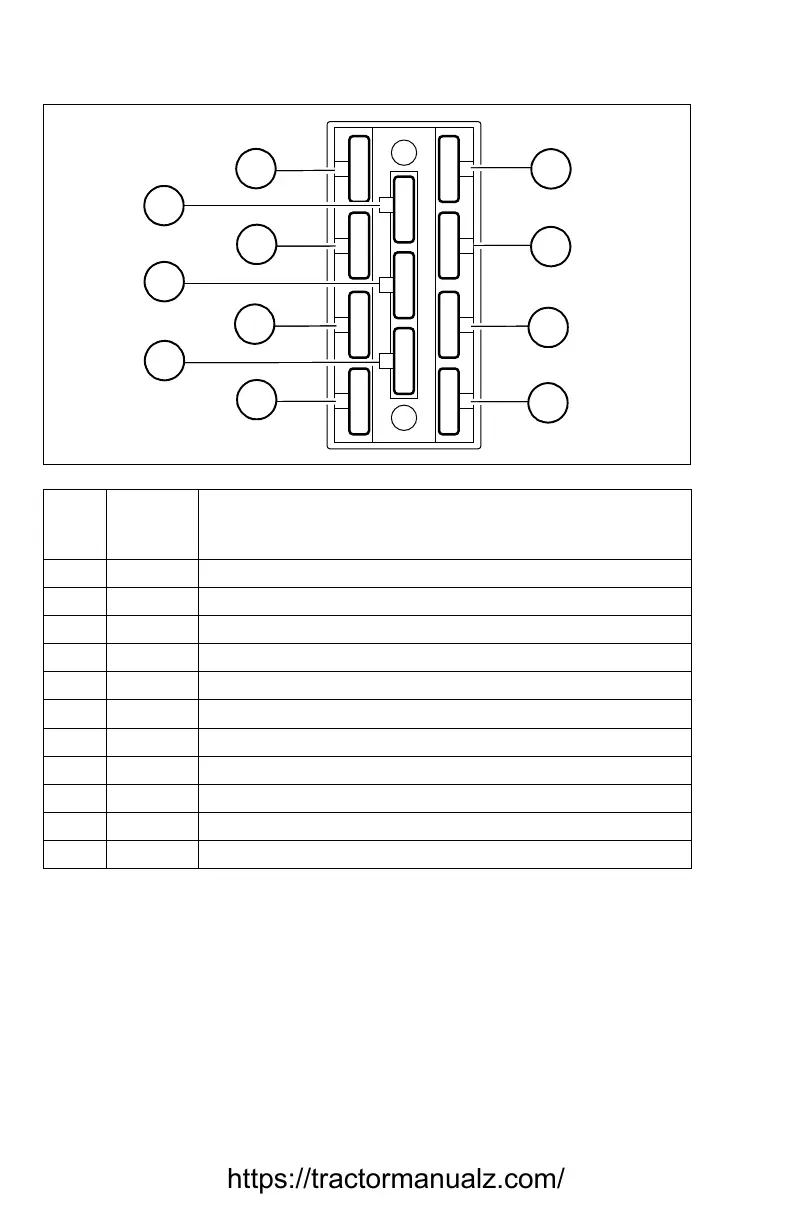

Steering Column Fuses – AL 100 Series and AL 200 Standard
Fuse
No.
Rated
Current
(Amp)
Protected Circuit
1.
5 Instrument panel, drive forward and reverse relays
2.
5Joystick
3.
5 Fuel pump, glow module, fuel solenoid hold
4.
7.5 Horn, beacon
5.
5 Steering column switch lights
6.
10
Power-A-Tach
®
system
7.
5 Starter relay
8.
20 Ignition switch
9.
10 Rear work light
10.
10 Front work light
11.
7.5 12V accessory power outlet
1
2
3
4
5
6
7
8
9
10
11
3
2
4
1
5
6
7
8
11
10
9
