Maintenance
50940411/G0219 146 Printed in U.S.A.
16. Once the track tension cylinder has returned to
the operating (extended) position, re-install
cylinder stop (K, Fig. 156).
17. Operate the track drive forward/back to ensure
the track is properly seated. Adjust track
positioning if necessary.
18. Remove blocking and lower the machine to the
ground.

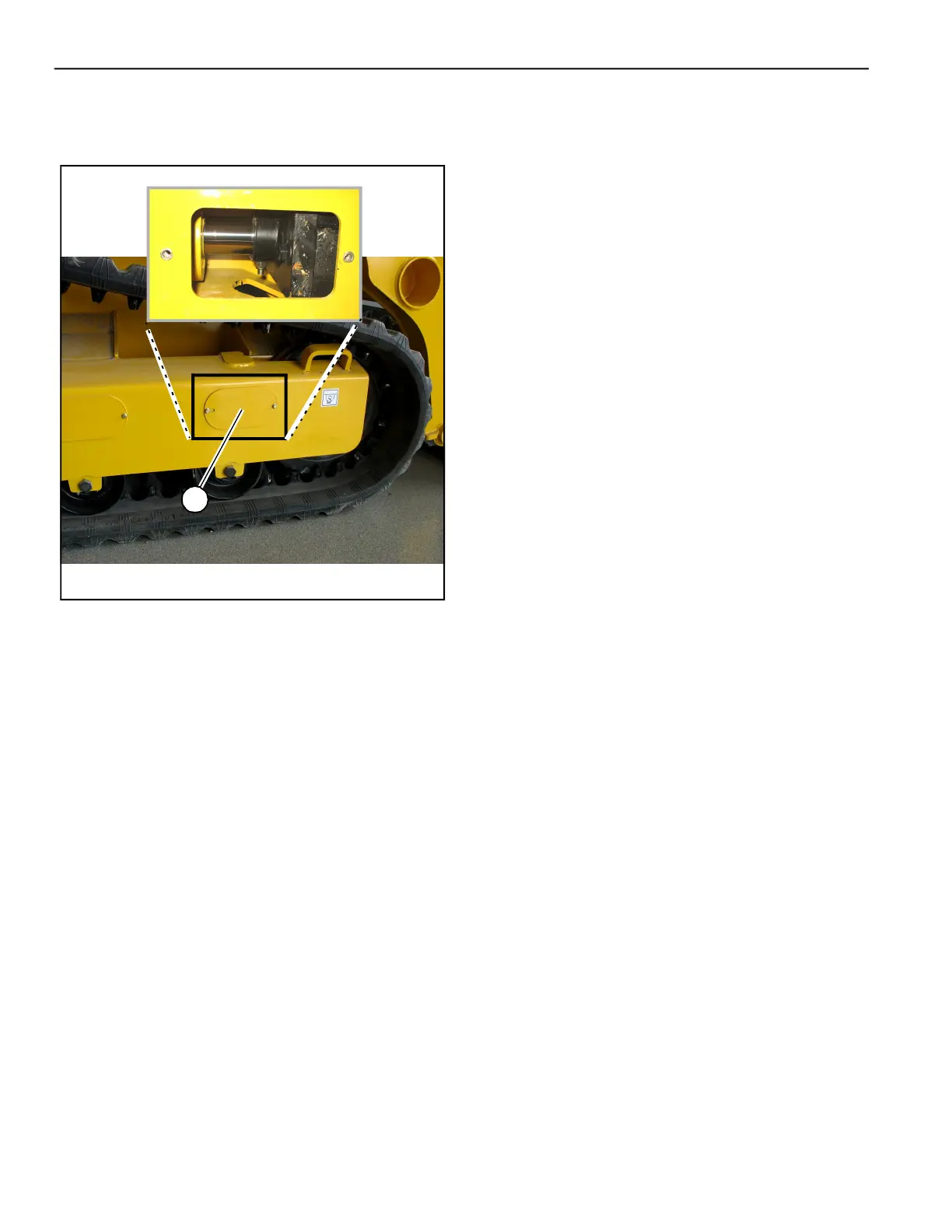

Fig. 156 – Tension Cylinder Stop
K
