SERVICE
Before servicing the machine, unless expressly
instructed to the contrary, exercise the
MANDATORY SAFETY SHUTDOWN
PROCEDURE
(page 7).
After service has been performed, be sure to restore all guards, shields
and covers to their original positions before resuming loader operation.
This Service chapter details procedures for performing routine maintenance
checks, adjustments and replacements. Most procedures are referred to in the
Troubleshooting and Maintenance Schedule chapters of this manual. Refer to
the separate engine manual provided for engine-related adjustments,
lubrication and servicing procedures.
Note: All service procedures, except those described under the “Dealer
Services” topic are owner-operator responsibilities.
Important: More frequent service than the recommended intervals may be
required under severe operating conditions. You must decide if your
operation requires more service.
Important: Always dispose of waste lubricating oils and hydraulic fluids
according to local regulations or take to a recycling center for disposal. Do
not pour onto the ground or down the drain.
Dealer Services
The following areas of component service, replacement and adjustments
require special tools and knowledge for proper servicing and should be
performed only by your authorized Gehl skid steer loader dealer: Hydrostatic
Components, Hydraulic System Gear Pump, Valves, Cylinders, Electrical
Components (other than the battery, circuit breakers) .
41 908268/BP0904
WARNING

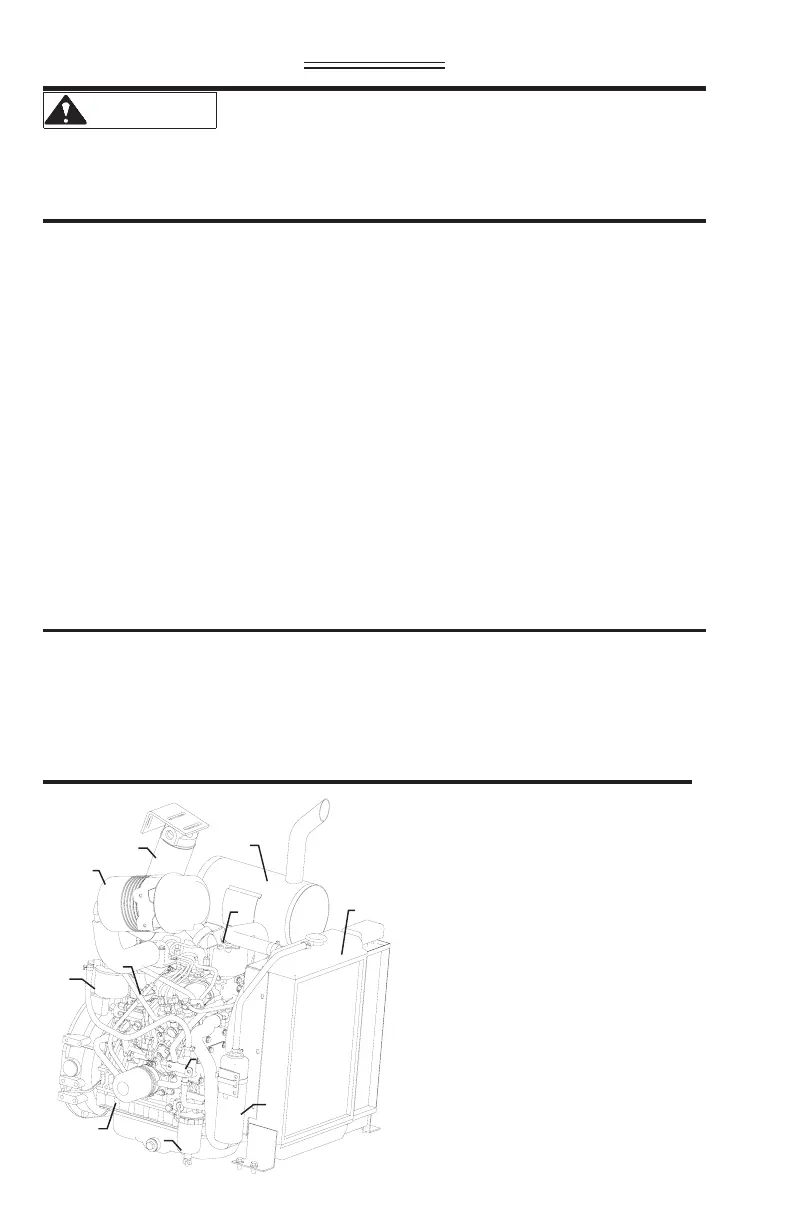

Fig. 24: Engine Compartment
1. Air Cleaner
2. Muffler
3. Radiator/Cooler
4. Coolant Recovery Tank
5. Hydraulic Oil Filter
6. Engine Oil Dipstick
7. Engine Oil Fill Cap
8. Engine Oil Filter
9. Fuel Filter
10. Fuel Pump
11. Water Trap
1
2
3
4
5
6
7
8
9
10
11
