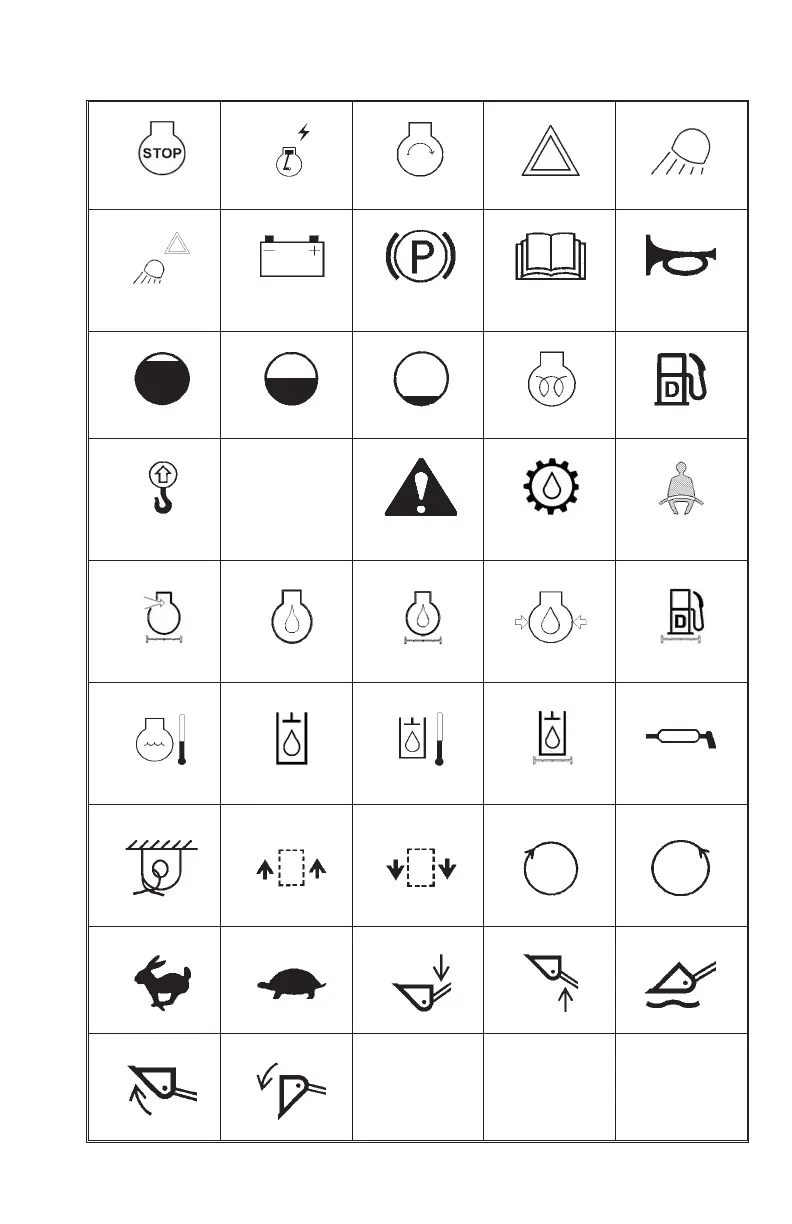

Control/Indicator Symbols
Power Off Power On Engine Start Hazard Flasher Worklight
Worklight
w/Flasher Battery Charge Parking Brake
Read Operator’s
Manual Horn
Volume - Full Volume- Half Full Volume - Empty Pre-Heat Diesel Fuel
Lift Point Neutral Safety Alert Chaincase Oil
Seatbelt - Lap
Only
Engine Air Filter Engine Oil Engine Oil Filter
Engine Oil
Pressure Fuel Filter
Engine Coolant
Temperature Hydraulic System
Hydraulic Oil
Temperature
Hydraulic Oil
Filter
Grease
Lubrication Point
Tie-Down
Machine Travel -
Forward
Machine Travel -
Reverse
Clockwise
Rotation
Counterclockwise
Rotation
Fast Slow Bucket - Lower Bucket - Raise Bucket - Float
Bucket - Rollback Bucket - Dump
