Gehl SL3635 - Page 73

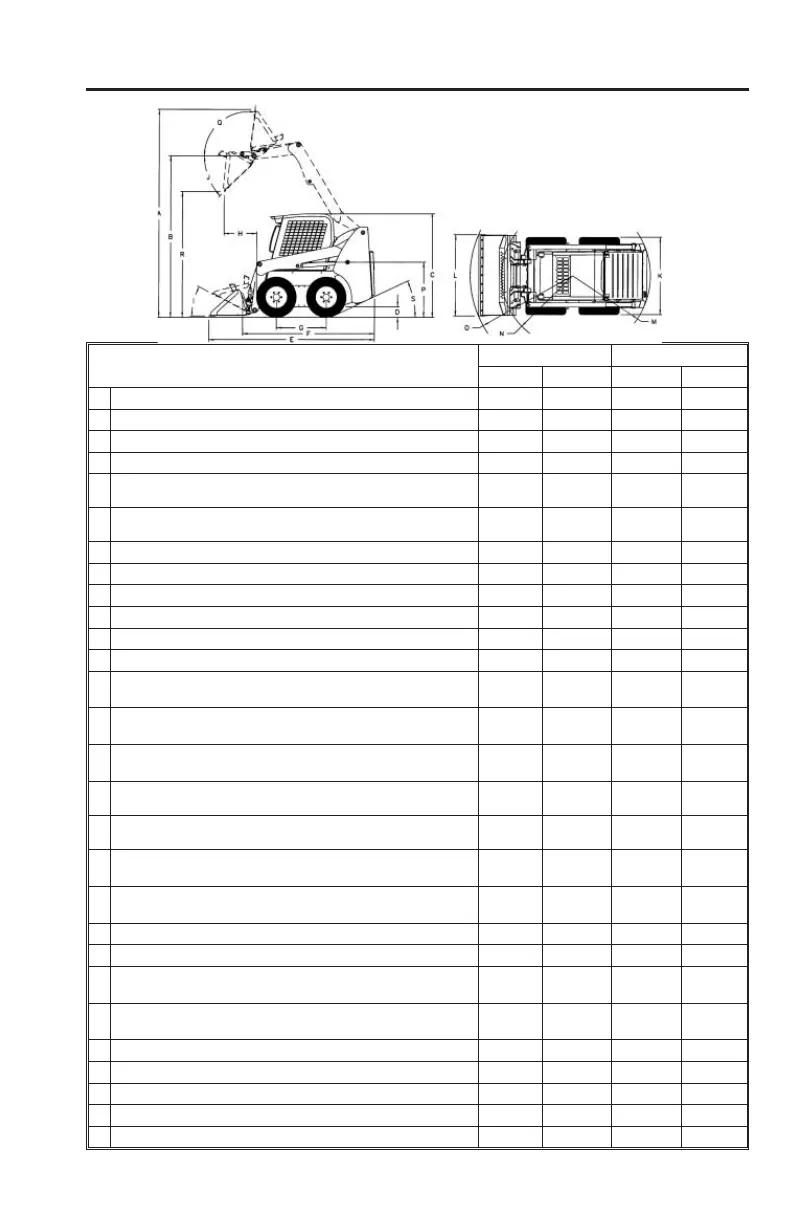

Dimensional Specifications
3635 3935
Inches (mm) Inches (mm)
A
Overall Operation Height - Fully Raised
139.8 (3550) 141.8 (3600)
B
Height to Hinge Pin - Fully Raised
108.0 (2743) 110.0 (2794)
C
Overall Height - Top of ROPS
70.3 (1784) 72.3 (1835)
D
Ground Clearance - to Chassis (Between Wheels)
6.0 (152) 8.0 (203)
E
Overall Length
w/54" (1372 mm) Dirt/Const. Bucket
114.0 (2896) 116.0 (2946)
Overall Length
w/60" (1524 mm) Dirt/Const. Bucket
117.0 (2972) 119.0 (3023)
F
Overall Length (less Bucket)
88.0 (2235) 90.0 (2285)
G
Wheel Base
34.4 (874) 36.3 (922)
H
Dump Reach - w/54" (1372 mm) Dirt/Const. Bucket
22.8 (578) 20.8 (528)
Dump Reach - w/60"(1524 mm) Dirt/Const. Bucket
- - 25.0 (635)
I
Rollback at Ground
28° 28°
J
Dump Angle at Full Height
42° 42°
K
Overall Width - less Bucket
w/27 x 8.50 x 15 HD Tires
48.3 (1226) - -
Overall Width - less Bucket
w/27 x 10.50 x 15 HD Tires
52.4 (1331) 52.4 (1331)
Overall Width - less Bucket
w/10.00 x 16.5 HD Tires
- - 51.9 (1318)
L
Bucket Width
48" (1219 mm) Dirt/Const. Bucket - Overall
49.3 (1252) 49.3 (1252)
Bucket Width
54" (1372 mm) Dirt/Const. Bucket - Overall
55.3 (1403) 55.3 (1403)
Bucket Width
60" (1524 mm) Dirt/Const. Bucket - Overall
61.0 (1549) 61.0 (1549)
Bucket Width
65" (1651 mm) Dirt/Const. Bucket-Overall
- - 67.0 (1702)
M
Clearance Circle - Rear
52.9 (1344) 53.8 (1367)
N
Clearance Circle - Front (less Bucket)
42.0 (1067) 43.2 (1097)
O
Clearance Circle - Front
w/54” (1372 mm) Dirt/Const. Bucket
68.7 (1745) 69.0 (1753)
Clearance Circle - Front
w/60" (1524 mm) Dirt/Const. Bucket
71.1 (1806) 71.1 (1806)
P
Seat to Ground Height
32.3 (819) 34.3 (870)
Q
Rollback at Full Height
100° 100°
R
Dump Height - w/54" (1372 mm) Dirt/Const. Bucket
84.5 (2146) 86.5 (2197)
Dump Height - w/60" (1524 mm) Dirt/Const. Bucket
- - 86.3 (2191)
S
Departure Angle
23° 26°
908268/BP0904 70
