T-Bar/Joystick Controls
Your loader may be equipped with the
Gehl T-Bar/Joystick control option. The
left T-Bar controls the drive and the right
joystick controls the lift/tilt.
Drive Controls
Forward, reverse, speed and turning
maneuvers are accomplished by move-
ment of the left T-Bar. To go forward, push
the control forward; for reverse, pull the
control rearward. To turn right, turn the
control clockwise; to turn left, turn the
control counterclockwise. For gradual
turns, move the T-Bar forward or rearward and turn slightly. For sharp turns, turn
the control clockwise or counterclockwise.
Moving the T-Bar farther from neutral increases the speed steadily to the max-
imum travel speed. Tractive effort decreases as speed increases. To get maximum
tractive effort, move the T-Bar only slightly away from the neutral position. The
engine will stall if the control is moved too far forward when loading the bucket.
Be sure the T-Bar controls are in neutral
before starting the engine. Operate the con-
trols gradually and smoothly. Excessive speed and quick control
movements without regard for conditions and circumstances are
hazardous and could cause an accident.

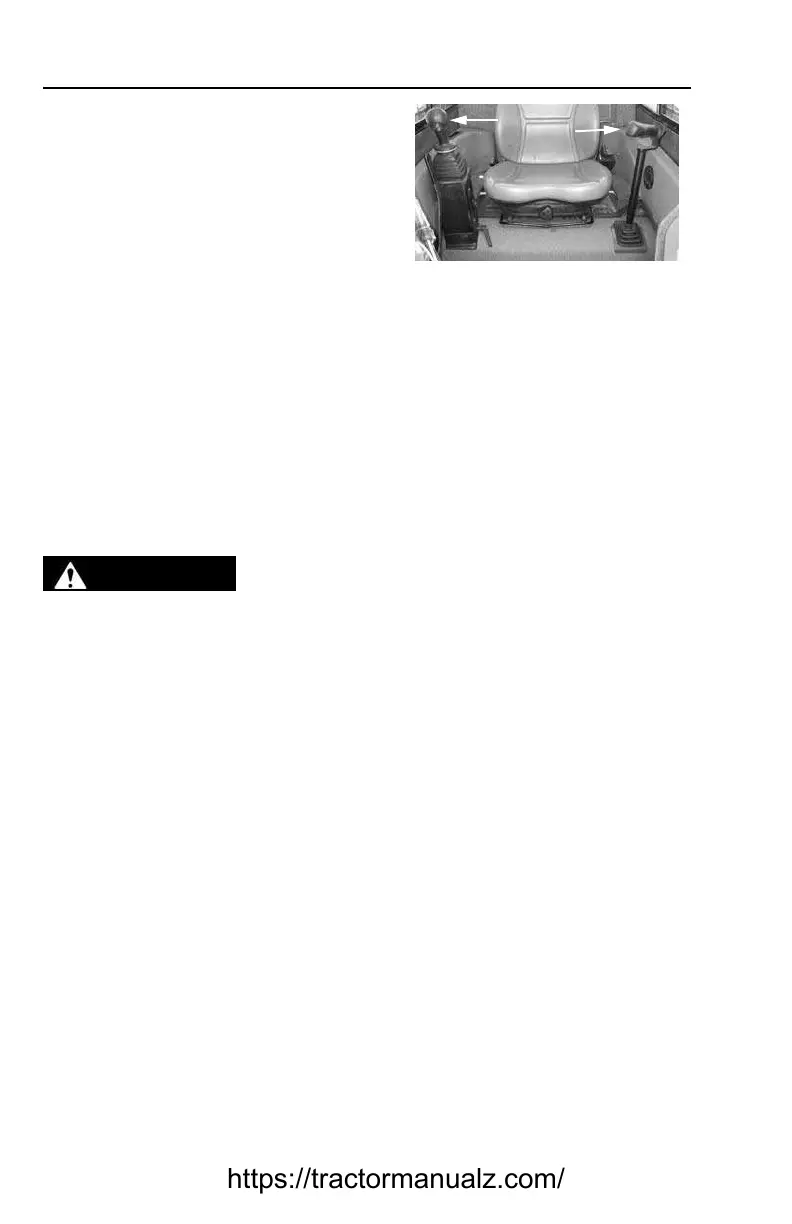

Figure 13 T-Bar/Joystick
Controls
1. Lift/Tilt Control
2. Drive Control
1
2
WARNING
