Hand/Foot Controls
Your loader may be equipped with the
hand/foot control option. The handles
control the drive and the foot pedals con-
trol the lift/tilt.
Drive Controls
Forward, reverse, speed and turning
maneuvers are accomplished by move-
ment of the control handles. To go for-
ward, push both handles forward; for
reverse, pull both handles rearward. For
turning, move one handle farther forward
or rearward than the other handle. Turn
direction is determined by which handle
is moved farther forward; to turn left,
move the right handle farther forward than the left handle; to turn right, move the
left handle farther forward than the right handle. For sharp turns, move the han-
dles in opposite directions.
Moving the handles farther from neutral increases the speed steadily to the max-
imum travel speed. Tractive effort decreases as speed increases. To get maximum
tractive effort, move the handles only slightly away from the neutral positions. The
engine will stall if the handles are moved too far forward when loading the bucket.
Be sure the controls are in neutral before
starting the engine. Operate the controls
gradually and smoothly. Excessive speed and quick control move-
ments without regard for conditions and circumstances are haz-
ardous and could cause an accident.

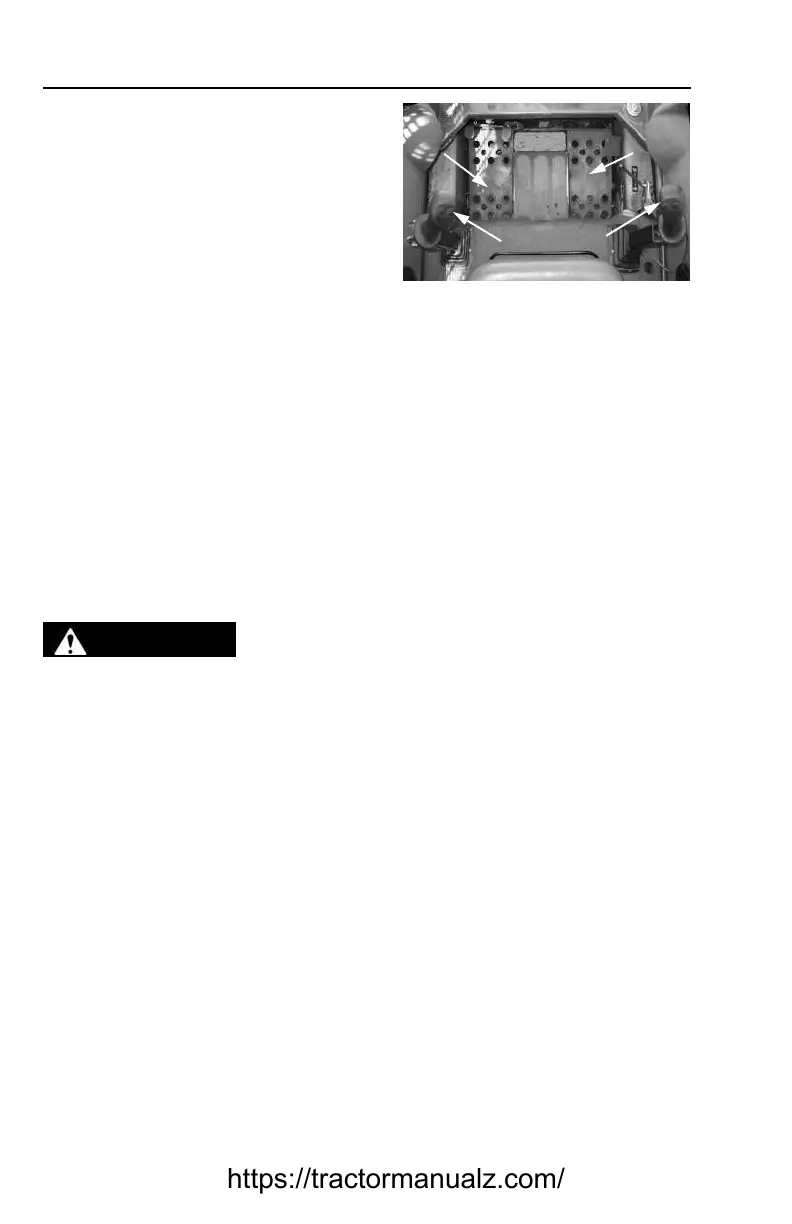

Figure 14 Hand/Foot Controls
1. Left Drive Control Handle
2. Right Drive Control Handle
3. Lift Control Pedal
4. Tilt Control Pedal
1
2
3
4
WARNING
