54 917001/CP0905
Chaincases
There is a chaincase on each side of the loader. Refer to the Maintenance Interval
Chart (page 75) for change intervals. Refer to the Lubrication chart (page 53).
Checking and Adding Oil
1. Park the loader on a level surface. Stop the
engine.
2. Remove the fill and check plug (Figure 34) from
each chaincase cover. The oil level should be at
the plug level or no more than 1/4 in. (6 mm)
below.
3. If the level is low, add fluid through the fill and
check plug; (Figure 34) until the oil level reaches
the check plug hole. Reinstall the plug.
Draining Oil
1. Park the loader on a level surface, or on a slop-
ing surface with the loader facing downhill and
the tires blocked.
2. Remove the drain plug on each chaincase and
drain the oil (Figure 35) into a suitable container.
3. Reinstall and tighten the drain plugs.
4. Refill the chaincases at the fill plugs.
Drive Chains
Drive chains are located in the chaincase on each side of the machine. Refer to
the Maintenance Interval Chart (page 75) for tension check interval.

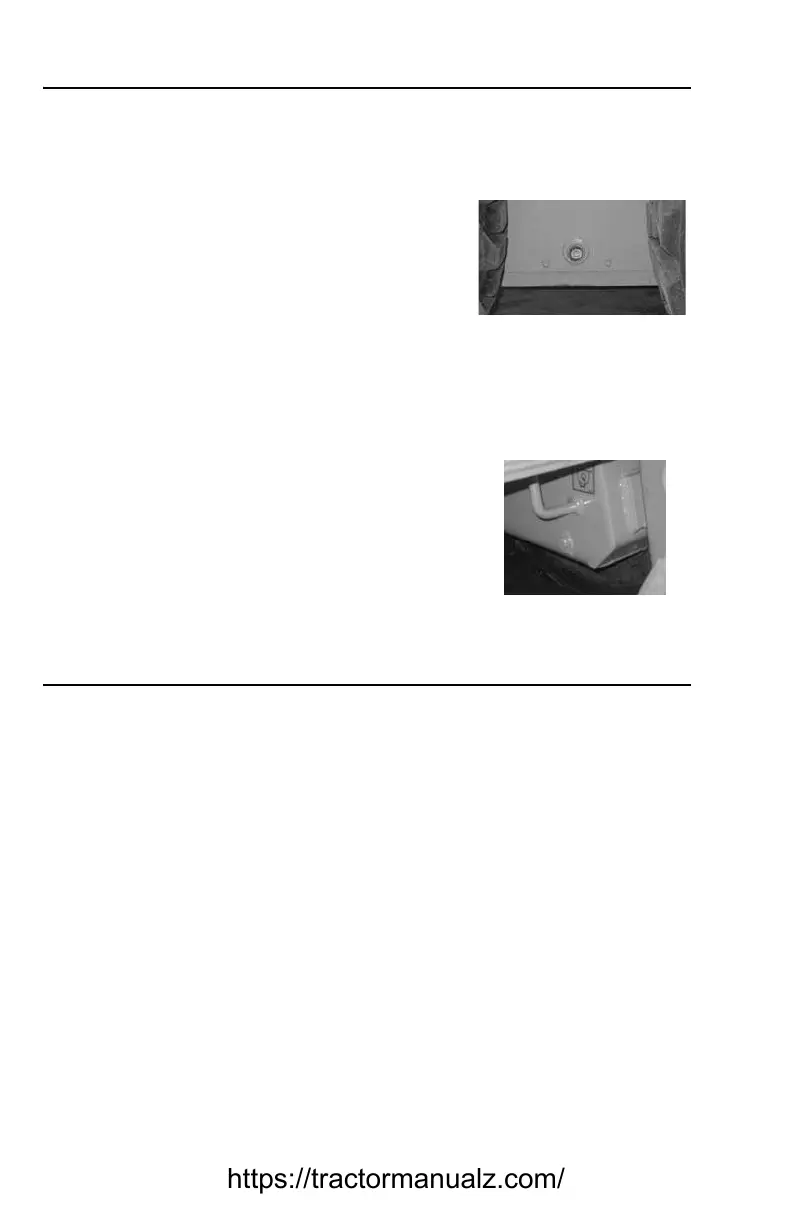

Figure 34 Fill and
Check Plug Location
Figure 35 Drain Plug
