Pos

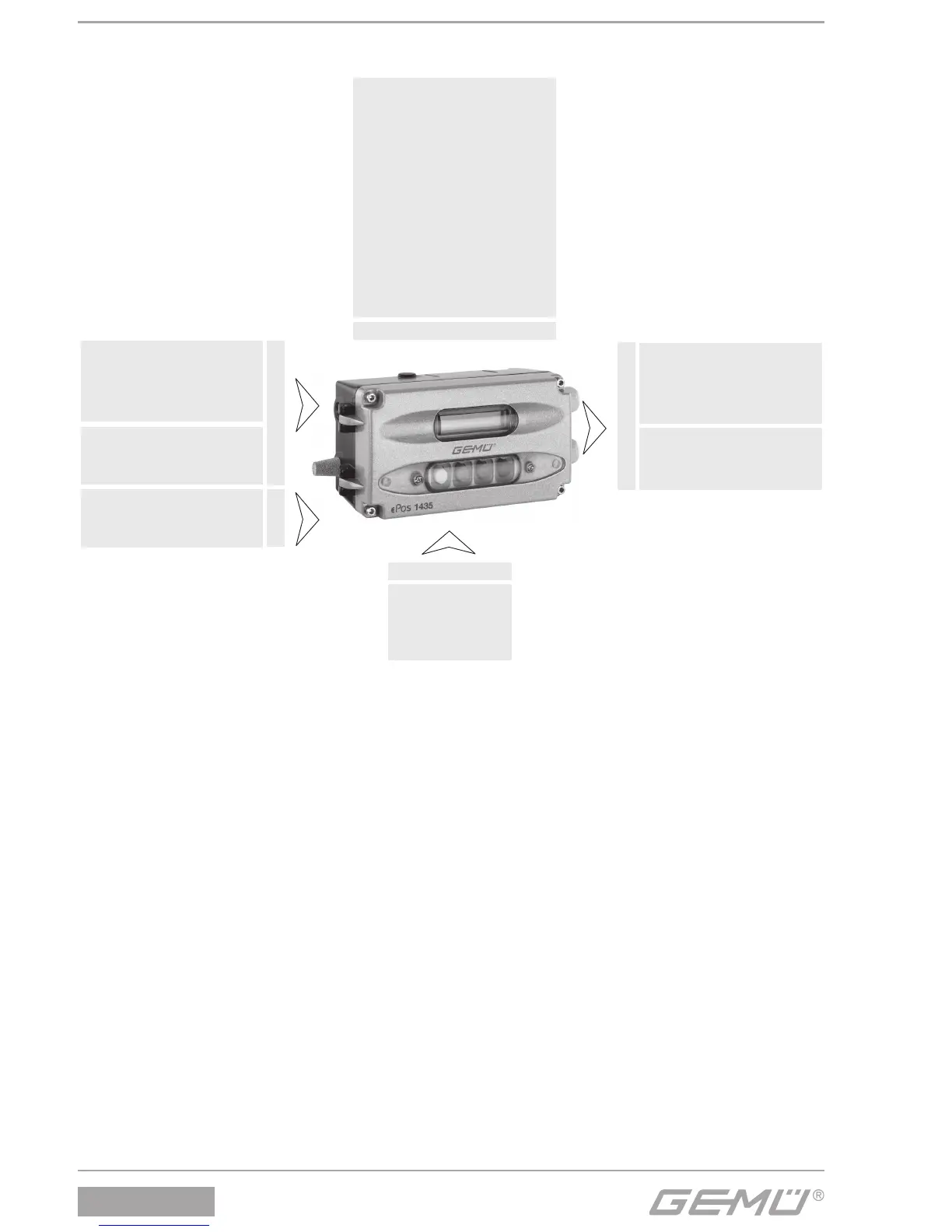

3 Diagrammatic view of the inputs and outputs
Additional functions of the
positioner:
Automatic initialisation
Easy to understand help texts
for operating in system mode
"ADVANCED"
Stroke limiter and seal adjuster
Close tight function
Selectable or settable
characteristic curve
Safety position "fail safe"
Freely programmable alarm
outputs
Etc.
Operating parameters
Set value input for positioning
0-10 V
0-20 mA
4-20 mA
Actual value input for position
control using the travel sensor
Supply voltage
24 V DC
InputsSupply
Actual value output of
positioner
0-10 V
4-20 mA (optional)
Binary outputs
24 V DC
Outputs
Operation
Keypad
