Section 2: Unpacking and Inspection
8 Installation Guidelines For 60 Hz Air-cooled Generators
Figure 2-3. Circuit Breaker Box and Keys (As
Shipped)
5. There are two locks securing the lid, one on each
side. To properly open the lid, press down, on the
lid, above the side lock and unlock the latch.
6. Repeat for the other side. If pressure is not applied
from the top, the lid may appear stuck.
NOTE: Always verify that the side locks are unlocked
before attempting to lift the lid.
7. Once the lid is open, remove the front access
panel by lifting it up and out. Also remove the black
panel, indicated by the arrow, over top of the cus-
tomer connection area. See Figure 2-4
8. Perform a visual inspection for any hidden freight
damage. If damage is present, contact the freight
carrier.

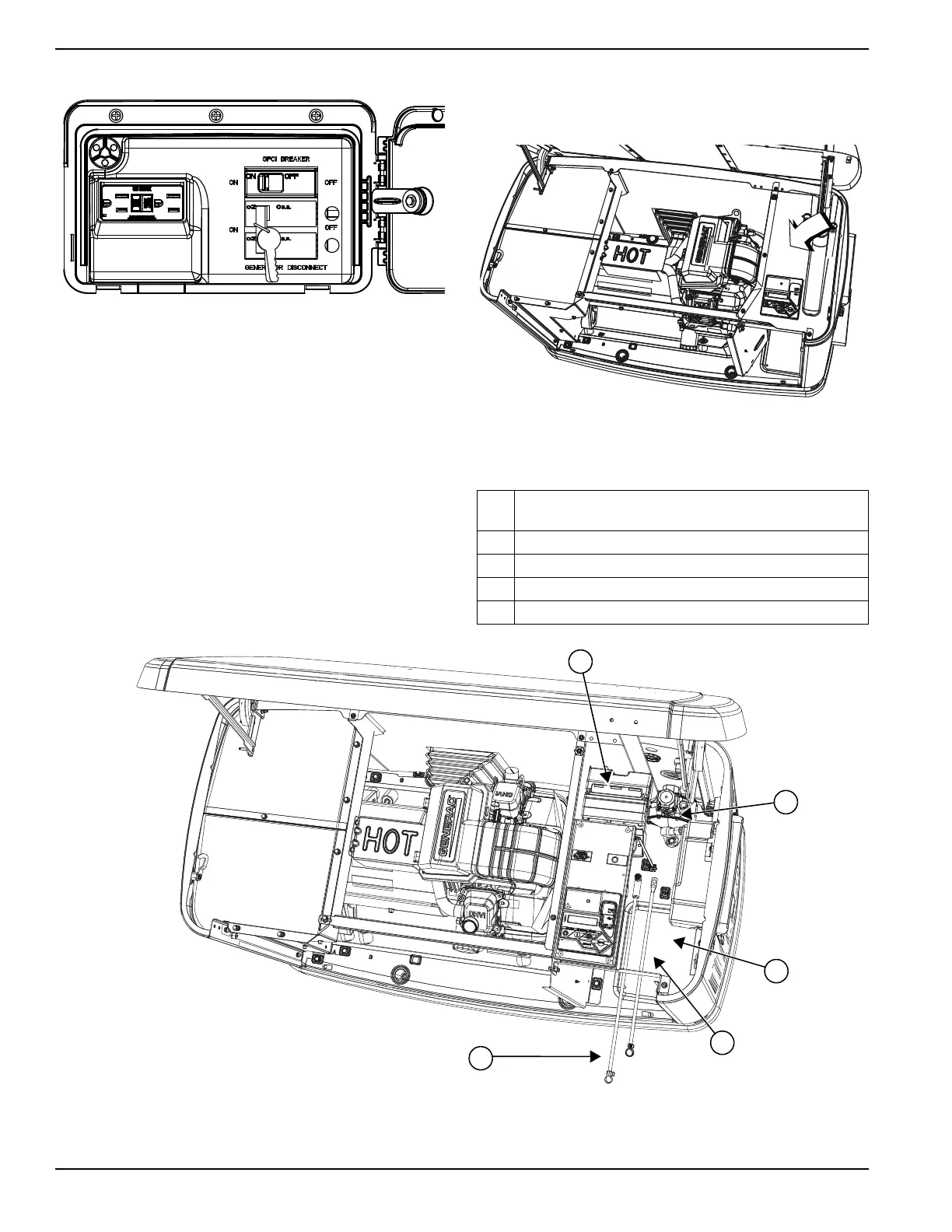

Figure 2-4. Inspect for Damage
9. Figure 2-5 illustrates the following:
Figure 2-5. Customer Connection Area and Loose Parts Location
000932
A Customer connection area (underneath and behind
the control panel)
B Fuel regulator
C Battery compartment
D Positive (+) and Negative (-) Battery Cables
E Location of “Loose Shipped Parts”
