Models FL3100/3101
6
NOTE -
General Monitors does not recommend the use of cable shoes or crimps
on any junction box or housing wiring terminals. Poor crimping can cause a bad
connection when the unit experiences temperature variations. Good practice is
to just terminate unused cable wires following insulation removal.

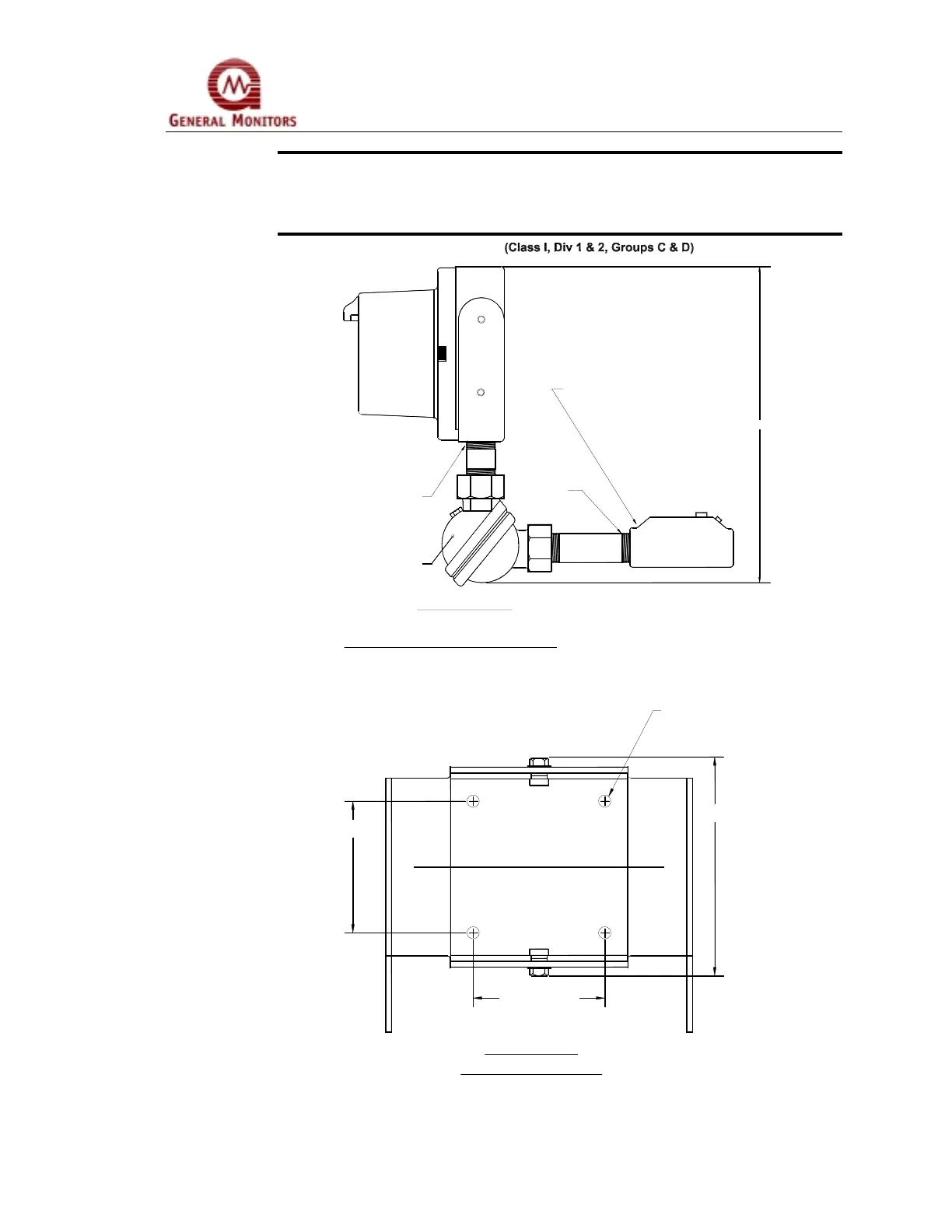

Figure 3-B 961-004 Swivel Elbow Drawing (Class I, Div 1 & 2, Groups C & D)
Figure 3-C 71072 Mounting Bracket Drawing (Class I, Div 1 & 2, Groups B, C & D or Zone 1
and 2)
EP SWIVEL MOUNTING HARDWARE
P/N 961-003
3/4-14 NPT
360° SWIVEL ELBOW
DF/IR UNIT SHOWN
(FL3102)
3/4 CONDUIT
12.5[317.5]
CONDUIT SEAL MUST BE
WITHIN 18'' OF UNIT
WALL MOUNTING
REAR VIEW
2.80[71.12]
2.80[71.12]
4.66[118.4
]
4X Ø.26[6.6]
REF HOLE :
