General Monitors FL3100 - Final Assembly Procedures

Models FL3100/3101
25
6.2 Final Assembly

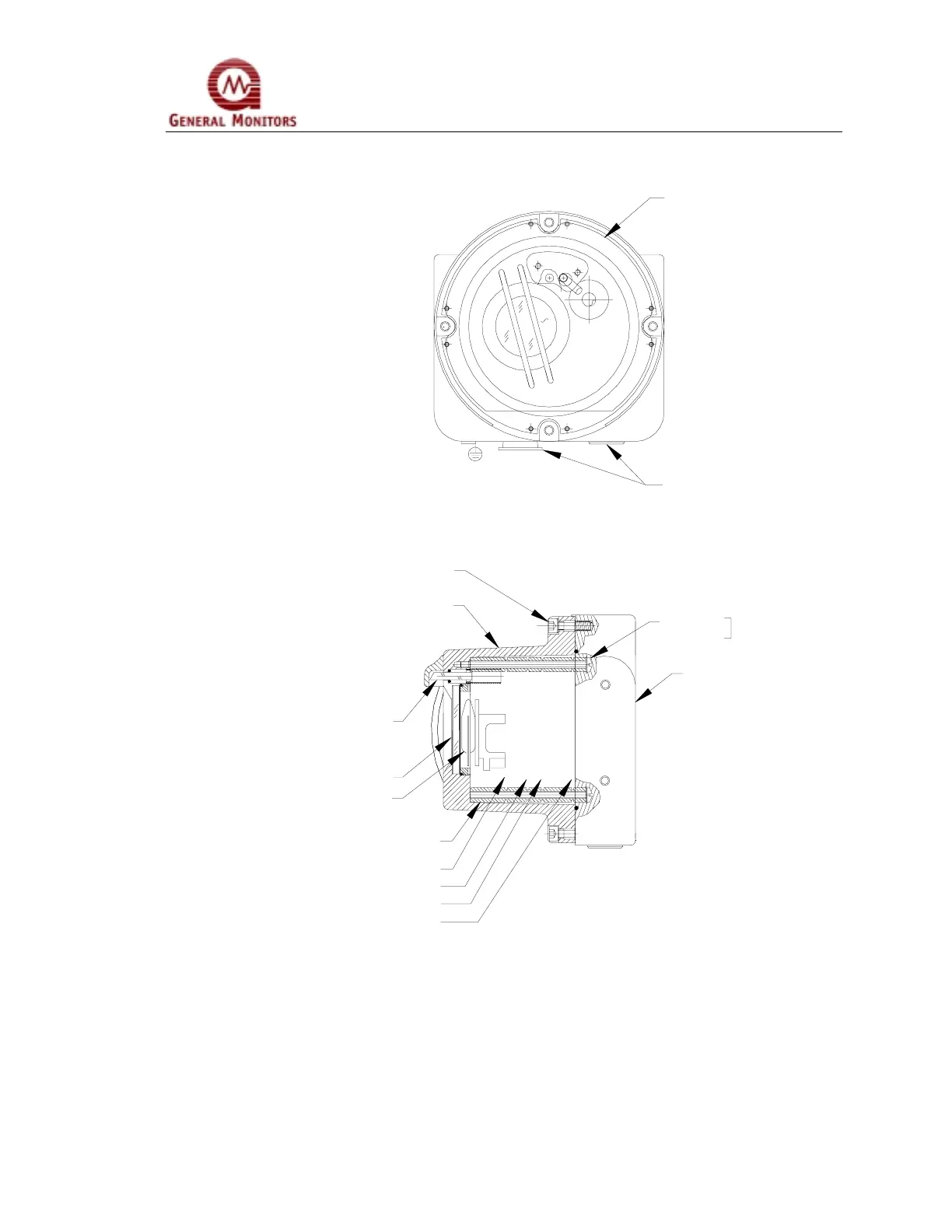

Figure 6-A 71100 FL3100 (UV/IR), Final Assembly
LIGHT ROD
LENS
UV DETECTOR
STANDOFF
CCA DETECTOR BD
CCA CONTROL BD
COMM BD, SINGLE/DUAL MOBUS
CA POWER BD
3 PL
UV/IR, HOUSING
SUBASSY
SCR, M6 SOC HD
4 PL
SCR, 8-32
WASHER, #8
3 PL
ASSY, BASE
PLUG
NAMEPLATE
