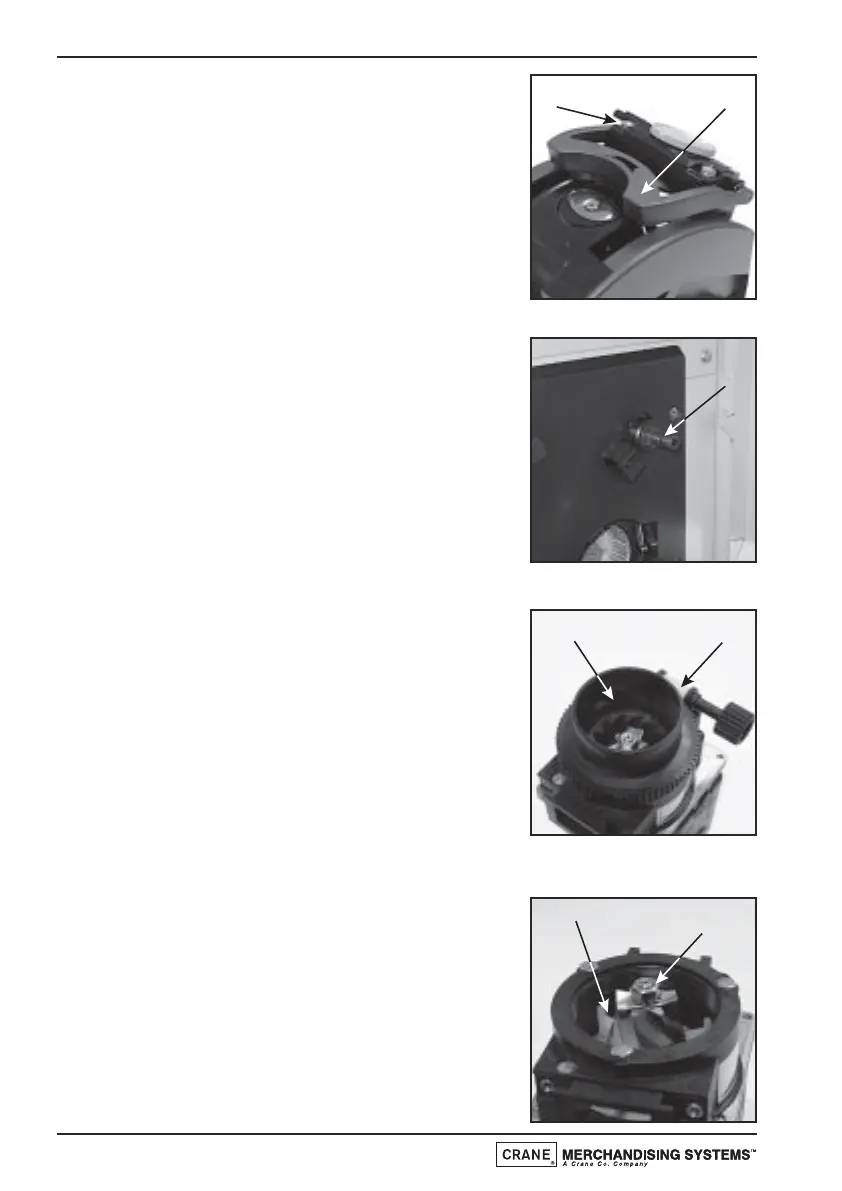

14. Re-assemble the wiper arm (d) to the filter
holder assembly
Ensure that the wiper arm is located under
the coffee outlet pipes as shown (e).
15. Moving to the machine, remove the ‘O’ ring
(a) from the water inlet pipe and discard. Fit
the ‘O’ ring included in the service kit onto
the inlet pipe. Ensure that the new ‘O’ ring is
seated correctly.
Refit the CoEx® brewer unit into the
machine. Slide the unit into place until it
‘clicks’ into position. Refit the coffee dispense
pipe to the brewer outlet.
16. Replacing The Grinder Blades
Push in the bean canister shut-off to close
the fresh beans outlet. Carefully remove the
fresh beans canister from the machine and
place it to one side.
Pull up and remove the grinder adjusting
wheel assembly (b) from the rear of the
grinder body.
Unscrew the grinder body (c) anti-clockwise
and remove it from the blade housing.
Note: Grinder mechanism removed from the machine for clarity
17. Unscrew and remove the nut, star washer
and agitator (d) from the drive shaft.
Note: Nut is fitted with a left hand thread.
Remove the grinder blade block (e) and
discard. Replace with the new grinder blade
block included with the service kit.
Refit the agitator, star washer and nut.
Ensure that the nut is tightened securely.
To Next Page
