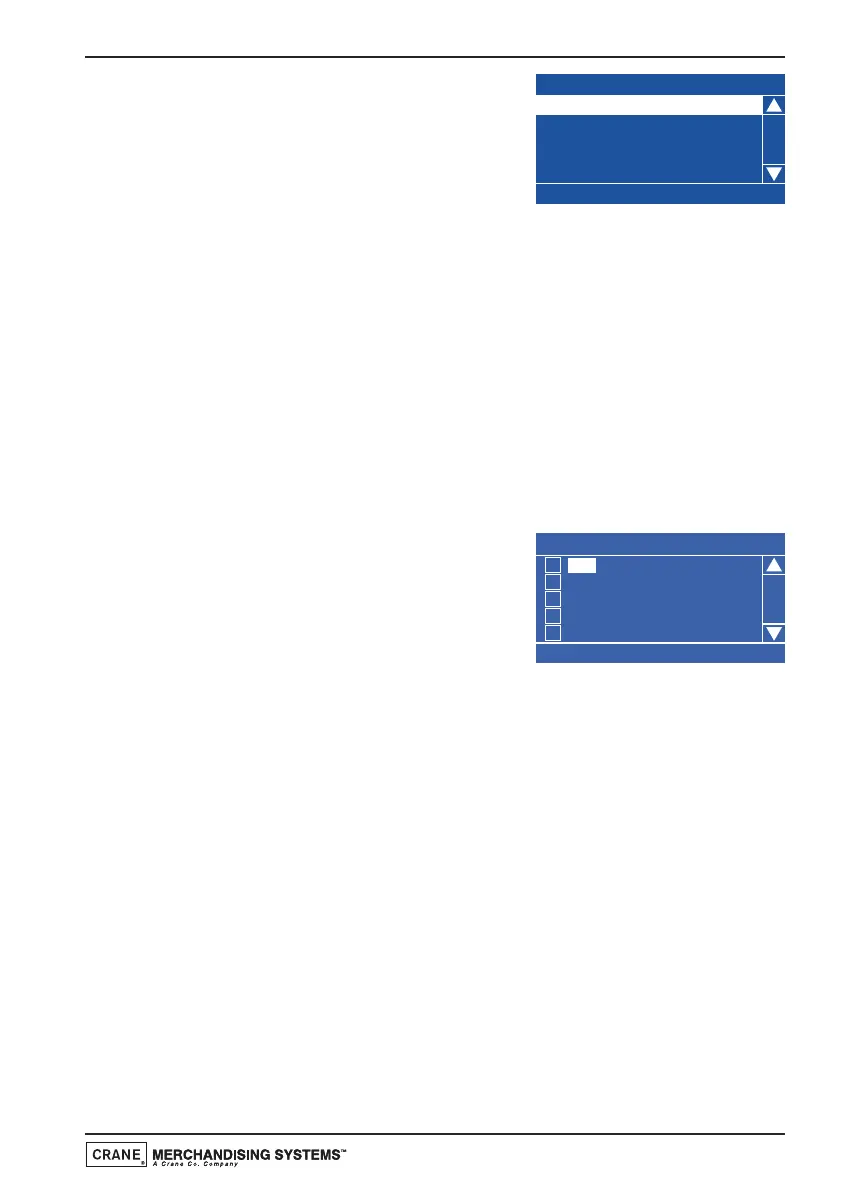

DTS Standby Mode: Scroll down and
highlight DTS from the System Settings
menu. Press the ↵ (Edit) key to access the
menu. The LCD will display the screen as
shown. The first sub-menu DTS Standby
Mode is highlighted with its current state
(DDCMP) shown in the bottom line.
The machine is factory set to enable data transfer via the optical DDCMP
link. To change this to the DEX setting, press the ↵ (Edit) key to access
the menu and the ▲ (up) key to select DEX (indicated by the filled radio
button. Press the ↵ (Edit) key to save the selection.
N.B. Even if the default is set to DDCMP, once the controller detects a
DEX activity, it will automatically switch to the other mode. However,
setting the default to the correct protocol will speed up response time.
The engineer can now download data from the machine by plugging a DEX
enabled device into the DEX port (J36) on the I/O board, located on the
rear of the door.
DTS Audit List: From this sub-menu the
engineer can select which data is
transferred from the machine to a
DEX/DDCMP data carrier. Scroll down
and highlight DTS Audit Data. Press the ↵
(Edit) key to access the menu. The LCD
will display the screen as shown.
All data and events fields within a vending machine are assigned a unique
code determined by the Standard. From this sub-menu the engineer can
choose to allow all fields to be available for download by pressing the
START/? key or scrolling through the list and adding an X to the required
fields.
CA304 Data Type: This sub-menu determines whether the the data will
be displayed as currency or numerical, for example, assuming that the
value of pound coins in the machine is £3.00, when set to currency CA304
will read 300 in the DEX/DDCMP report. When set to numeric it will
read 3.
Data Reset Mode: This field can be set to either AUTO or SAVE from
within the sub-menu. When set to AUTO, all resettable data will be reset
after a successful read.
Event Reset Mode: This field can be set to either AUTO or SAVE from
within the sub-menu. When set to AUTO, all event data will be reset after
a successful read.
DTS Audi t List
Start
(
?
)
=Set or Clear All
ID 1
ID 2
ID 3
ID 4
ID 5
X
X
X
X
X
DTS
DDCMP
DTS Standby Mode
DTS Audit L ist
CA304 Data Type
Data Reset Mode
Event Reset Mode
Printer Ba ud Rate
Technical Manual
57
