Valve Block T Piece

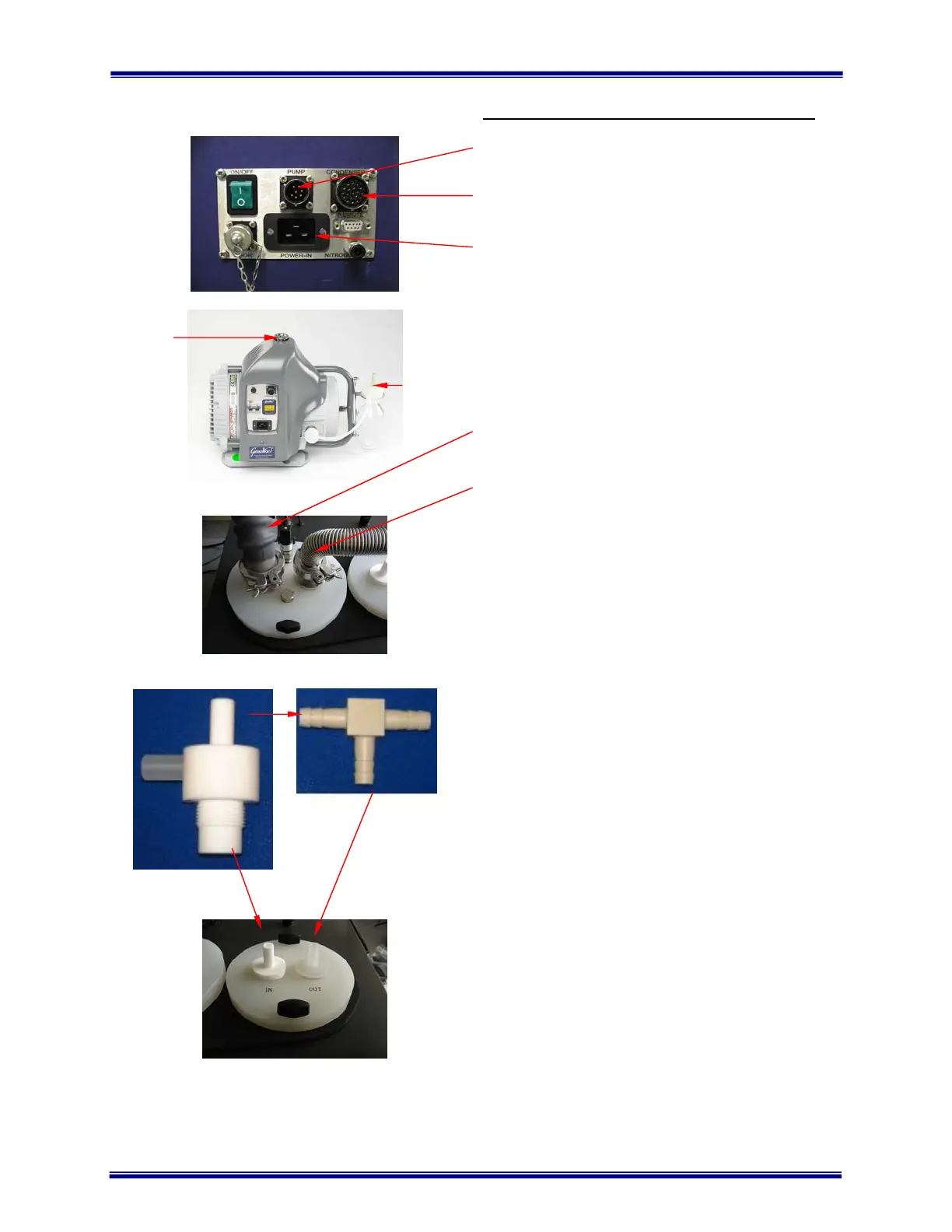

If you have a Scroll Pump refer to the following:
Connect the other end of the lead from the pump to
this socket on the chamber
Connect the control lead from the chamber to the
condenser.
Connect the power lead to the chamber.
Connect the pump exhaust to the condenser exhaust
inlet port.
Connect the condenser solvent drain pipes to the to
the outlets indicated.
It is wise at this stage to inspect the seals and
clamps and replace them if necessary.
Connect the heated inlet tube from the chamber to
the condenser port.
Connect the vacuum pump outlet to the condenser
vacuum inlet port.
Connect Valve block to IN on the condenser exhaust
pot.
Connect the T piece centre connection to the
condenser OUT exhaust port.
Connect a pipe between the valve block top
connection and the T piece.
Connect a pipe between the other connection on the
T piece and your fume hood.
Connect a pipe between the valve block side
connection and the catchpot
Connect the system to the mains, close the door and
start the system.
If the system is taking a long time to get to full
vacuum, it is possible that there is a leak.
Refer to Section 8 Fault Finding for assistance.
Vacuum
outlet
Catchpot
