8 Genie DPL Super Series Part No. 82799
Operator’s Manual Second Edition • First Printing

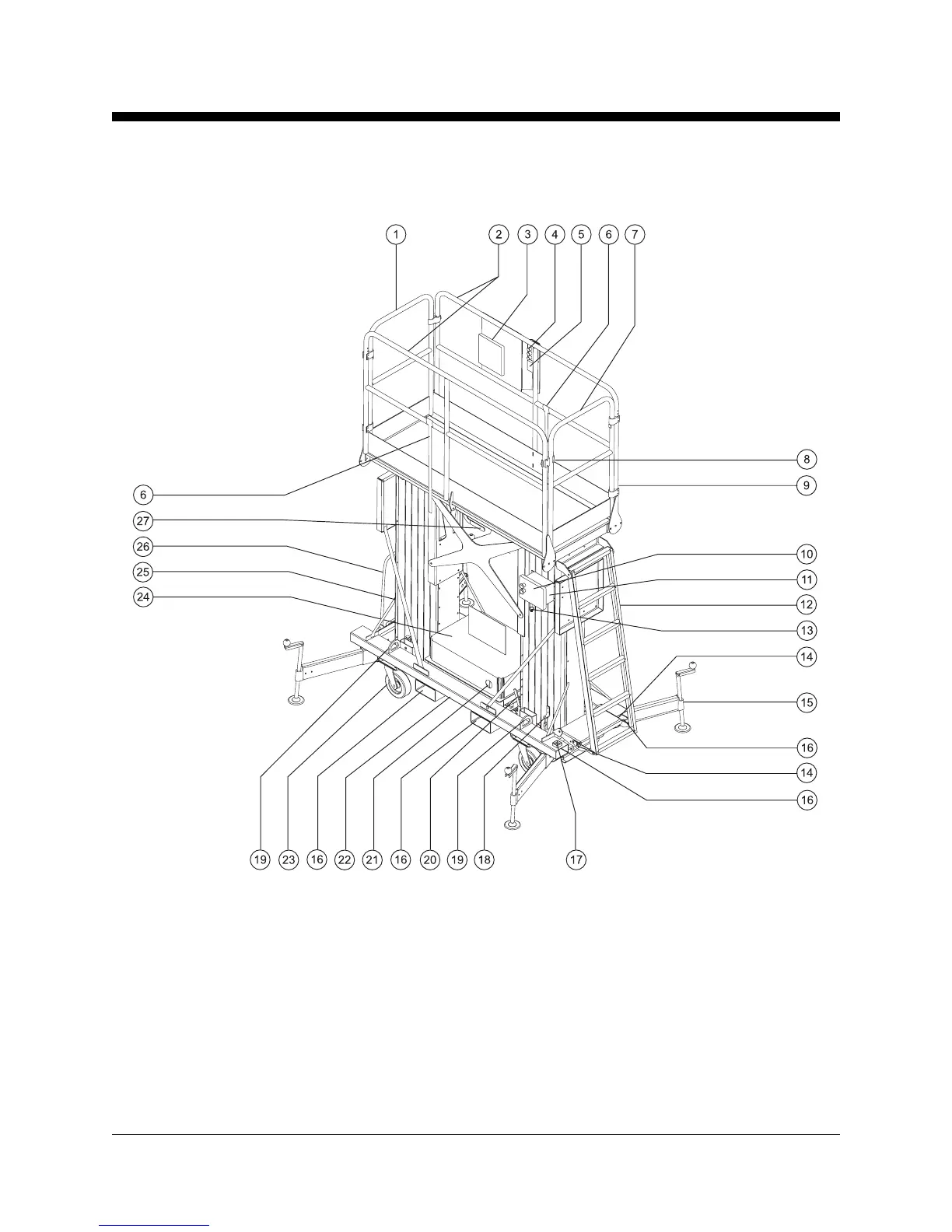

1 Platform end guard rail
2 Platform side guard rail
3 Manual storage container
4 Platform controls
5 AC outlet
6 Guard rail lifting arm
7 Platform entry gate
8 Platform end gate latch
9 Platform
10 Interlock display
11 AC models: Circuit breaker
12 Platform entry ladder
13 AC models: Power supply for
machine
DC models: AC power to
platform
14 Platform entry ladder lock pin
15 Outrigger with leveling jack
16 Forklift pocket
17 Bubble level
18 Sequencing cable
19 Transport tie-down
20 Manual lowering lever
21 Battery charger plug-in
22 Base
23 Caster with swivel lock
24 Base cover
25 Mast
26 Steer handle
27 Platform guard rail locking
handle
