Genie DPL Super Series User Manual

Part No. 82799 Genie DPL Super Series 23
Operator’s ManualSecond Edition • First Printing
Observe and Obey:
Only qualified riggers should rig and lift the
machine.
Be sure the crane capacity, loading surfaces
and straps or lines are sufficient to withstand
the machine weight. See the serial plate for the
machine weight.
Lifting Instructions
Fully lower the platform. Be sure the controls and
covers are secure. Remove all loose items on the
machine.
Determine the center of gravity of your machine
using the table and the picture on this page.
Attach the rigging only to the designated lifting
points on the machine. There are two lifting points
on each side of the machine.
Adjust the rigging to prevent damage to the
machine and to keep the machine level.

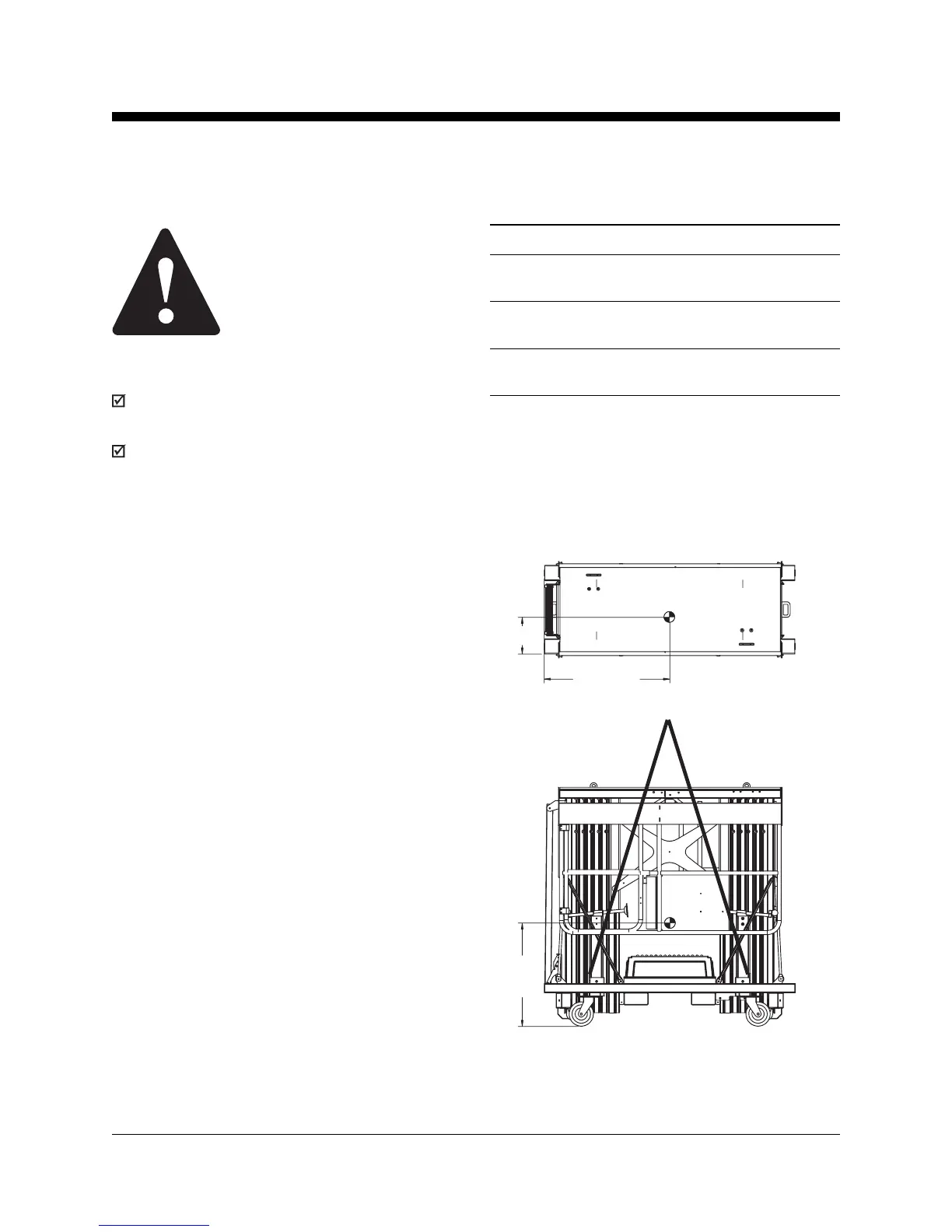

TRANSPORT AND LIFTING INSTRUCTIONS
Center of gravity X Axis Y Axis Z Axis
DPL-25 40.5 in 13.15 in 32.9 in
1.03 m 34.3 cm 83.6 cm
DPL-30 40.5 in 13.15 in 33 in
1.03 m 34.3 cm 83.8 cm
DPL-35 40.5 in 13.15 in 33.11 in
1.03 m 34.3 cm 84.1 cm
Y Axis
X Axis
Z Axis
