Genie ZX-135/70 with Jib-Extend User Manual

Third Edition • First Printing Operator's Manual

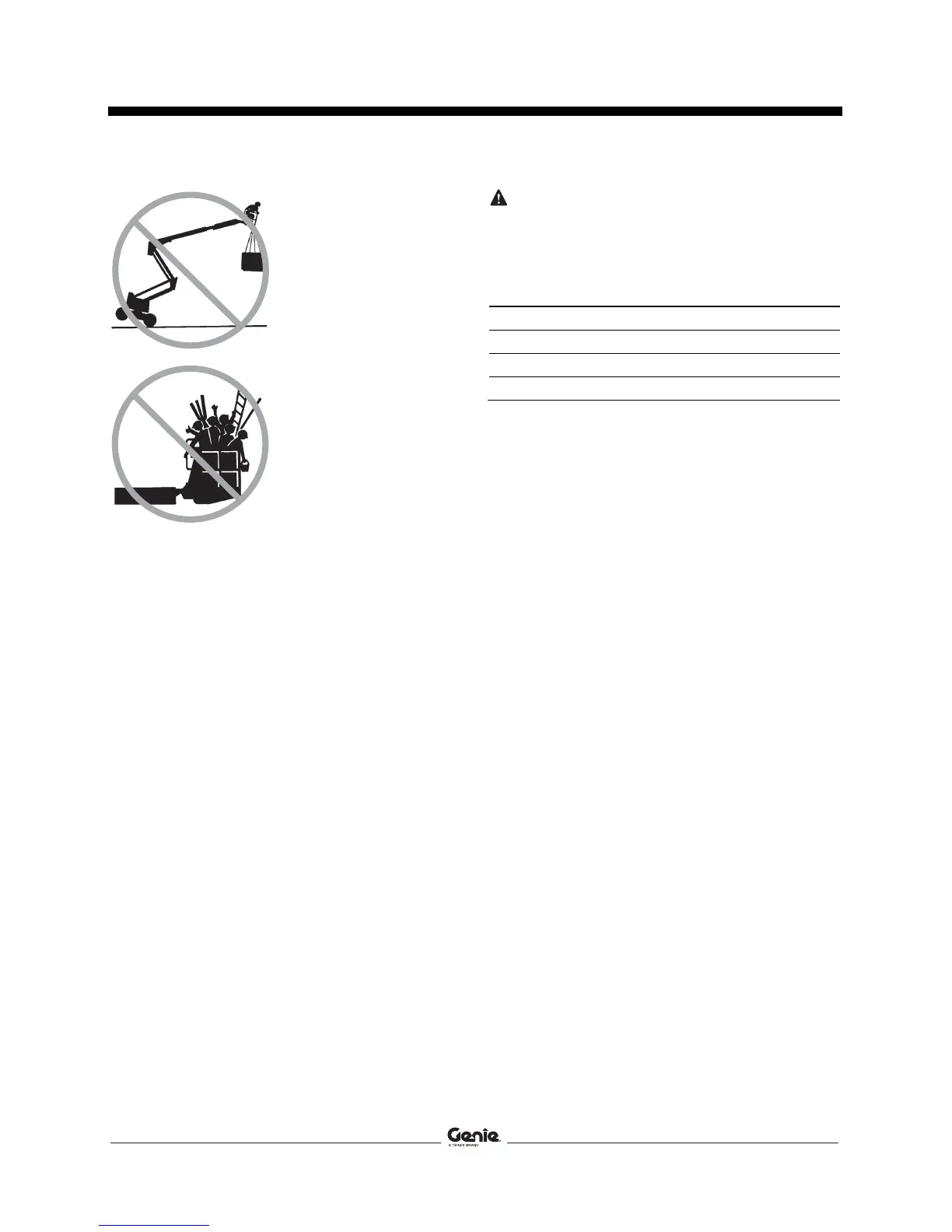

Work Area Safety
Part No. 1272823GT ZX-135/70 13
Do not place or attach
fixed or overhanging loads
to any part of this
machine.
Do not place ladders or
scaffolds in the platform or
against any part of this
machine.
Do not transport tools and materials unless they
are evenly distributed and can be safely handled by
person(s) in the platform.
Do not use the machine on a moving or mobile
surface or vehicle.
Be sure the tires are in good condition and the lug
nuts tightened.
Operation on Slopes Hazards
Do not drive the machine on a slope that exceeds
the maximum uphill, downhill or side slope rating of
the machine. Slope rating applies only to machines
in the stowed position.
Maximum slope rating, stowed position
Platform downhill 45% (24°)
Platform uphill 30% (17°)
Side slope 25% (14°)
Note: Slope rating is subject to ground conditions
with one person in the platform and adequate
traction. Additional platform weight may reduce
slope rating. See Driving on a Slope in the
Operating Instructions section.

Genie ZX-135/70 with Jib-Extend Specifications

General

Turntable Rotation	360° continuous
Platform Rotation	160°
Gradeability	45%
Maximum Platform Height	135 ft
Engine Power	74 hp
Fuel Type	Diesel
Stowed Height (ft)	10 ft
Max Working Height	141 ft
Platform Height	135 ft
Max Horizontal Reach	70 ft
Platform Capacity	600 lbs
Machine Width	8 ft 2 in
Stowed Height	10 ft
Drive Speed - Stowed	3.5 km/h
Jib Length	12 ft
Horizontal Reach	70 ft
Platform Capacity (lbs)	600 lbs
Drive Speed	3.5 km/h
Stowed Length	43 ft 2 in / 13.16 m
Stowed Width	8 ft 2 in
