Operator's Manual Third Edition • First Printing
Controls
24 ZX-135/70 Part No. 1272823GT
Platform Control Panel
1 Horn button
Press this button and the horn will sound.
Release the button and the horn will stop.
2 Platform not level indicator light
Level the platform until the light is off. The
platform level toggle switch will only work in the
direction that will level the platform.
3 Machine not level indicator light
Light is on when the platform is raised and the
machine is on a severe slope. The drive
function in one or both directions will not
operate. The turntable rotate may also be
disabled.
4 Lower primary boom indicator light
Lower the primary boom until the light is off.
5 Lower / retract secondary boom indicator light
Lower/retract the secondary boom until the
light is off.
6 Used for optional equipment
7 Generator switch with indicator light (if
equipped)
Move the generator switch to turn the
generator on. Move the switch again to turn the
generator off.
8 Emergency power switch with indicator light
Use emergency power if the primary power
source (engine) fails.
Simultaneously move the emergency power
switch and activate the desired function. The
indicator light will be on when emergency
power is being used.
9 Gasoline/LPG models:Choke switch with
indicator light
Move this switch to activate the choke.
OR
Diesel models: automatic glow plug light or
glow plug switch
Glow plug switch with indicator light
Move this switch and hold 3 to 5 seconds to
activate the glow plugs.
Automatic glow plug indicator light
Amber light indicates glow plugs are on.
10 Engine start switch with indicator light
Move the engine start switch and the engine
will start. The engine start indicator light will be
on when the switch is Moved.

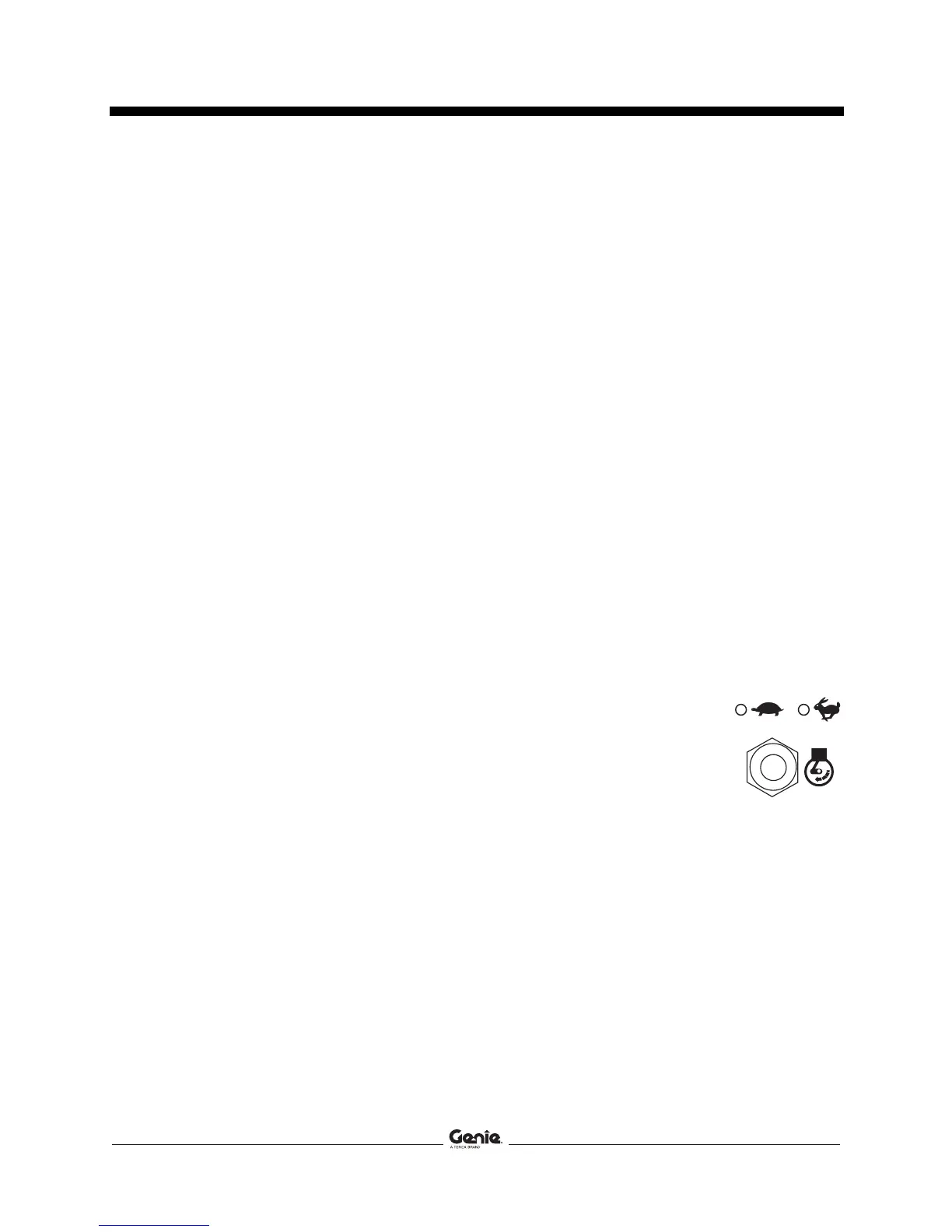

11 Engine idle select switch with indicator light:
Move this switch to select
engine idle setting. Rabbit
symbol light on indicates high
idle is selected. Turtle symbol
light on indicates low idle is
selected.
