Genie ZX-135/70 with Jib-Extend User Manual

Third Edition • First Printing Operator's Manual

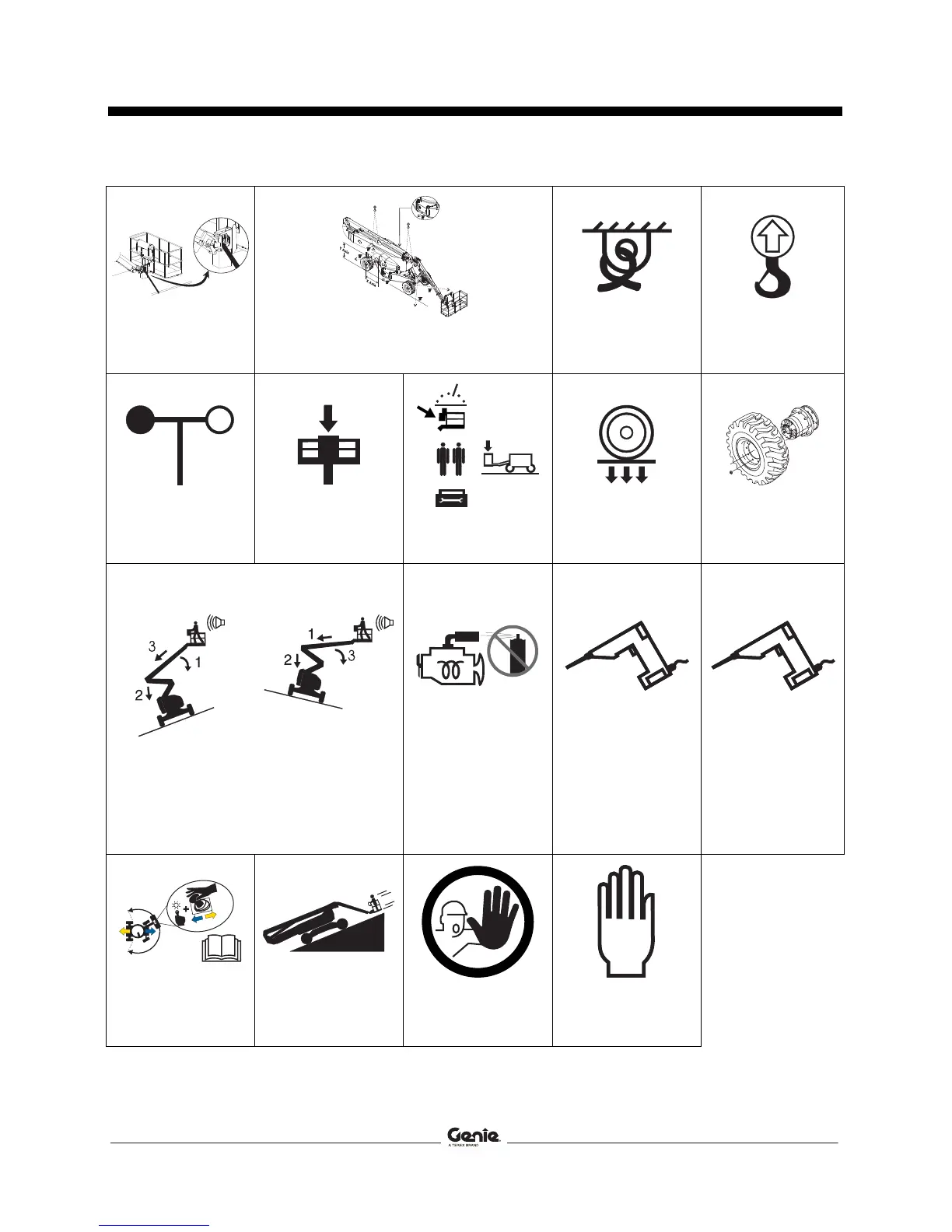

Symbol and Hazard Pictorials Definitions
Part No. 1272823GT ZX-135/70 5
Platform tie-down
instructions
Lifting & tie down instructions Tie-down point Lifting point
Wind speed Maximum capacity
Weight of welder
reduces capacity
Wheel load Tire specifications
Recovery procedure if tilt alarm sounds while
elevated
Platform uphill:
1 Lower primary
2 Retract/lower
secondary
3 Retract primary
Platform downhill:
1 Retract primary
2 Retract / lower
secondary
3 Lower primary
Do not use ether or
other high energy
starting aids on
machines equipped
with glow plugs.
Voltage rating for
power to platform
Pressure rating for
air line to platform
Color Coded
Direction Arrows
Runaway Hazard
Access by trained
and authorized
personnel only
Manual force
+
+

Genie ZX-135/70 with Jib-Extend Specifications

General

Turntable Rotation	360° continuous
Platform Rotation	160°
Gradeability	45%
Maximum Platform Height	135 ft
Engine Power	74 hp
Fuel Type	Diesel
Stowed Height (ft)	10 ft
Max Working Height	141 ft
Platform Height	135 ft
Max Horizontal Reach	70 ft
Platform Capacity	600 lbs
Machine Width	8 ft 2 in
Stowed Height	10 ft
Drive Speed - Stowed	3.5 km/h
Jib Length	12 ft
Horizontal Reach	70 ft
Platform Capacity (lbs)	600 lbs
Drive Speed	3.5 km/h
Stowed Length	43 ft 2 in / 13.16 m
Stowed Width	8 ft 2 in
