BLIZZARD 400-800 C ENC 18 532104 - Rev.A
8.8.
M
{
{
-
-
+
N
L
PE
24 V
"
500 mA max
24 V
"
/15 W max
230 V~
115 V~ *
OPEN A
OPEN B
STOP
BUS
BUS
LAMP
LAMP
W.L. -
W.L. +
OUT -
+24V
MOT
MOT
1 2 3 4 5 6
DISPLAY
J4
J6
J7
IC14
DL10
DL9
DL8
DL2
DL7
DL3
DL5
+ - F
DL1
J10
F1
J17
DL6
DL4
J9 J15 J13
J18
J2
28
Translation of the original instructions
ENGLISH

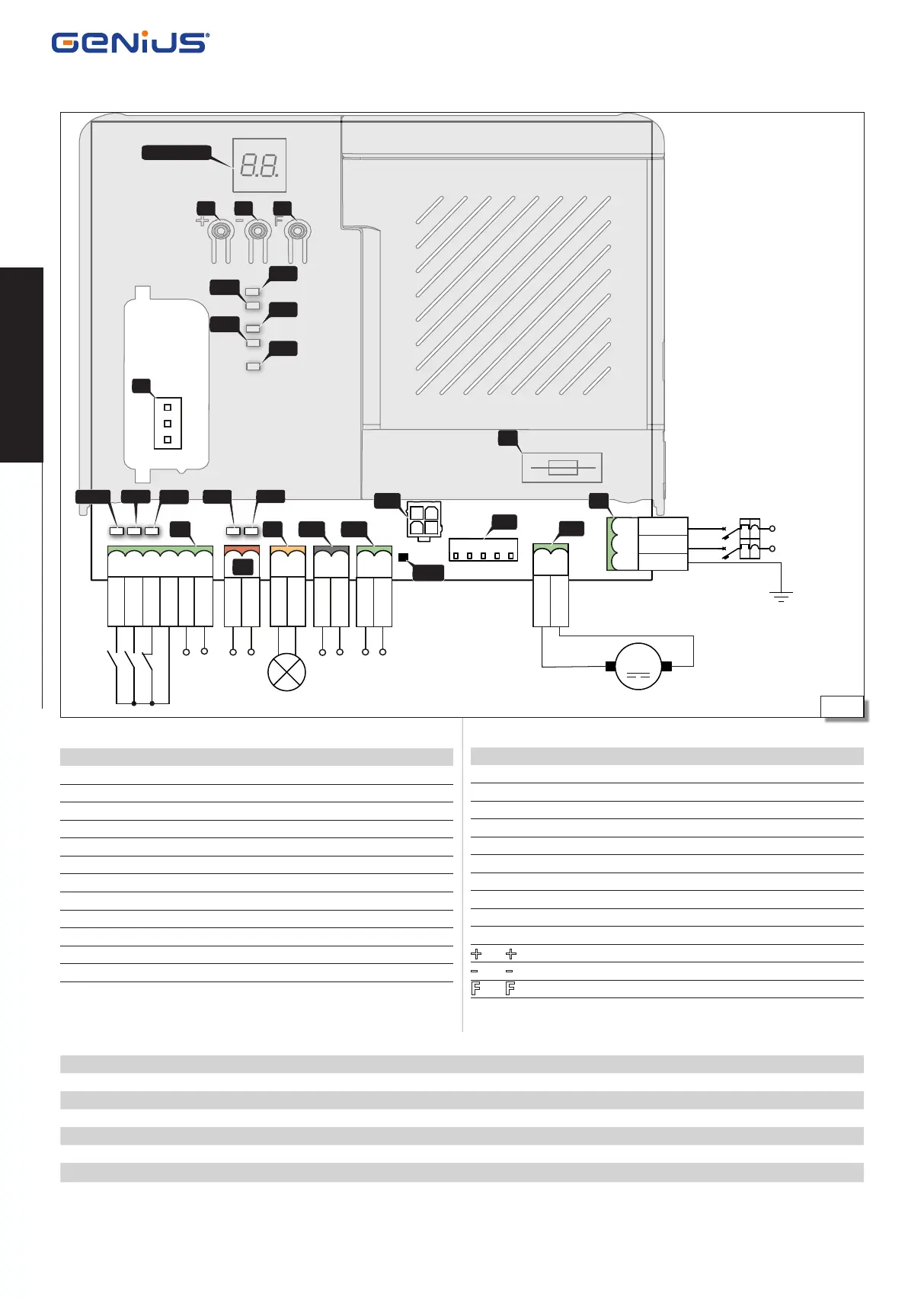

6. SPRINT M24 BOARD
KEY:
J2 Power supply terminal board
J4 Terminal board for Bus G-Way
J6 Terminal board for accessories
J7 Connector for GENIUS RQFZ radio module
J9 Terminal board for flashing light
J10 Connector for GENIUS battery kit
J13 Terminal board for output OUT
J15 Terminal board for output W.L.
J17 Connector for encoder
J18 Terminal board for motor
IC14 Limit switch sensor
F1 Mains power supply fuse
KEY:
DL1 Signalling LED Bus G-Way device active - “BUS”
DL2 Diagnostic LED Bus G-Way - “BUS MON.”
DL3 Signalling LED RADIO1
DL4 Signalling LED RADIO2
DL5 Signalling LED - radio memory full
DL6 Status LED FCC (Closing limit switch)
DL7 Status LED FCA (Opening limit switch)
DL8 Status LED STOP
DL9 Status LED OPEN B
DL10 Status LED OPEN A
+ + button
- -
button
F F button
9 Technical data
SPRINT M24 SPRINT M24 115V
Power supply voltage 210-250 V~ 50/60 Hz 105-125 V~ 50/60 Hz
Fuse F1 2.5 A T 5 A T
Max power 150 W 150 W
Max accessories load 24 V
"
500 mA 500 mA
Ambient operating temperature -20 °C - +55 °C -20 °C - +55 °C
Flashing light 24 V
"
- 15 W 24 V
"
- 15 W
* The mains power supply can be
230 V~ or 115 V~, depending on
the model of the board.
