3.7 TECHNICAL SPECIFICATIONS
Electromechanical grease-lubricated gearmotor, supplied with a
pinion for the rack.
Irreversible system The integrated release device has to be used in
order to move the gate manually.
SPRINT M24 board The built-in electronic board is equipped with a
display, programming buttons and a protective plastic cover.
Incremental encoder The encoder integrated in the electric motor
determines the position of the leaf and the speed of movement.
Obstacle detection The electronic board detects the presence of an
obstacle via the encoder and the current supplied to the motor. The
automation reverses partially or totally if an obstacle is detected
during opening or closing.
Force limitation The maximum force exerted by the gearmotor is
regulated by the electronic board.
Adjustable speed The opening and closing speeds of the gate can be
regulated independently.
Magnetic limit switches To be fixed to the rack to set the opening and
closing stop positions.
End of travel slowdown Adjustable electronic slowdown near to the
open and closed positions.
Bus G-Way Bus G-Way accessories can be connected to the electronic
board.
Master-Slave It is possible to operate two opposite opening lea-
ves. To do this, two BLIZZARD 400-800 C ENC units have to be
installed in a MASTER-SLAVE configuration: the first (referred to as
the MASTER) controls the second (referred to as the SLAVE).
Radio The radio decoding system integrated in the electronic board
allows up to 256 GENIUS RC and JLC radio codes to be stored. To do
this, you have to purchase the optional RQFZ radio module.
Battery kit An optional GENIUS battery kit can be connected in order
to operate the gate if there is a mains power supply failure.
Li
Revision 1 battery kits are not compatible: the revision number must
be 1A or higher. Check the revision number on the label of the battery
kit board.
3.4 EMERGENCY USE
3.6 PRODUCT IDENTIFICATION
5 Technical data
BLIZZARD 400 C ENC BLIZZARD 800 C ENC
Power supply voltage 210-250 V~ 50/60 Hz 105-125 V~ 50/60 Hz 210-250 V~ 50/60 Hz 105-125 V~ 50/60 Hz
Electric motor Brush motor 24 V
"
Brush motor 24 V
"
Brush motor 24 V
"
Brush motor 24 V
"
Max power 150 W 150 W 150 W 150 W
Stand-by power without accessories 5 W 5 W 5 W 5 W
Max thrust force 310 N 310 N 410 N 410 N
Pinion Z16 Module 4 Z16 Module 4 Z16 Module 4 Z16 Module 4
Max leaf length 15 m 15 m 15 m 15 m
Max leaf weight 400 kg 400 kg 800 kg 800 kg
Max leaf speed 12 m/min 12 m/min 12 m/min 12 m/min
Stopping space 35 mm 35 mm - -
Ambient operating temperature -20 °C - +55 °C -20 °C - +55 °C -20 °C - +55 °C -20 °C - +55 °C
Type of use Residential buildings/
Apartment complexes
Residential buildings/
Apartment complexes
Residential buildings/
Apartment complexes
Residential buildings/
Apartment complexes
Continuous use time (ROT) continuous continuous continuous continuous
Protection rating IP44 IP44 IP44 IP44
Dimensions (LxDxH) 297x170x256 297x170x256 297x170x256 297x170x256
Gearmotor weight 7 kg 7 kg 7 kg 7 kg
Electronic board SPRINT M24 SPRINT M24 115V SPRINT M24 SPRINT M24 115V
3.5 PRODUCT WARNINGS
Risk of fingers and hands being trapped between the rack, pinion and
casing (2).

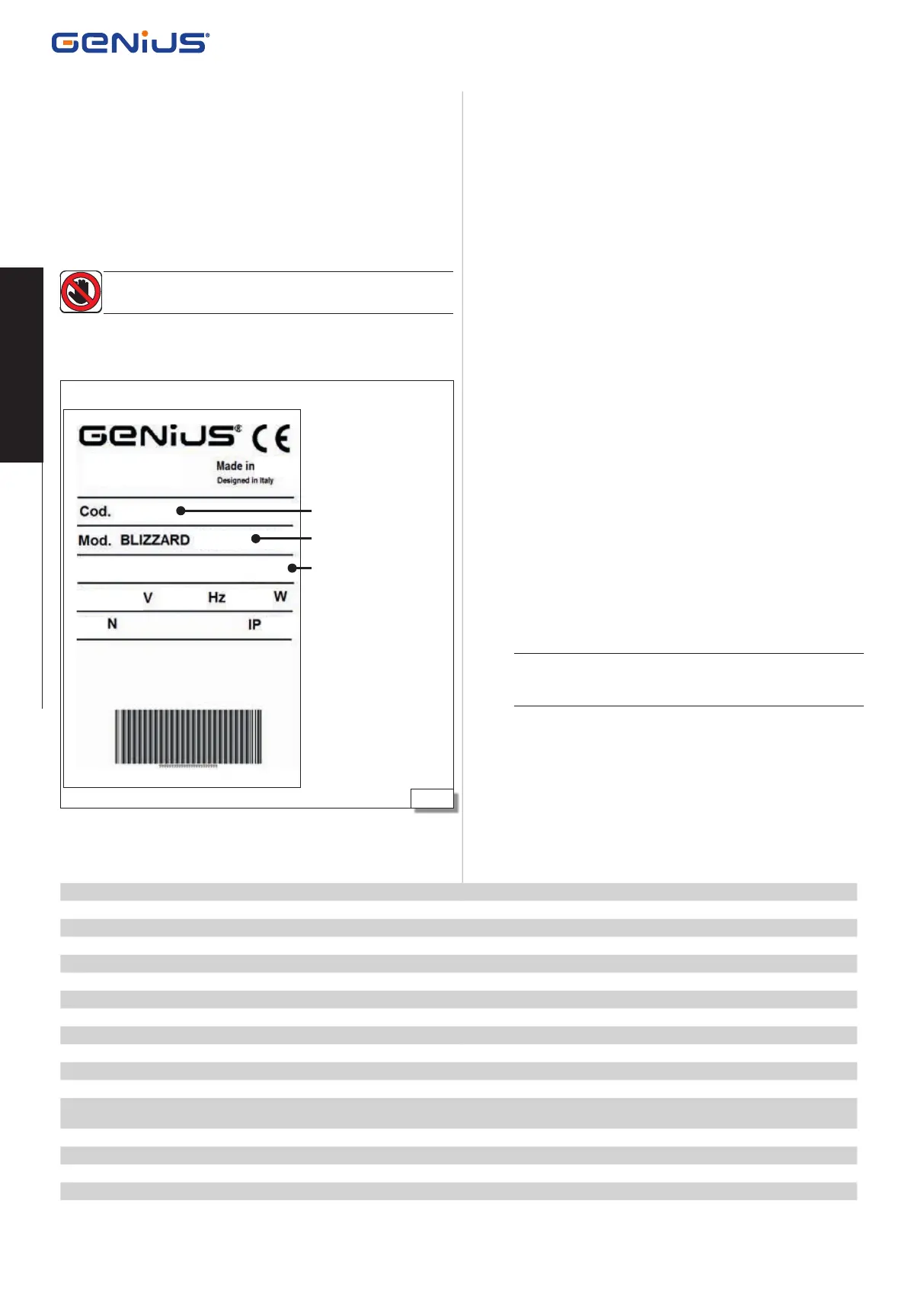

Sale code
Product name
IDENTIFICATION NUMBER
Month/year of production +
progressive number for the
month of production
Example:
0115 0001
In any case the beam is not behaving properly, in emergencies or
if there is a fault, turn off the power supply to the automation and
disconnect the buffer batteries if there are any. If the leaf can be
moved safely by hand, use the MANUAL OPERATION mode; otherwise
place the automation out of service until it has been reset/repaired.
In the case of a breakdown, the automation must be reset/repaired
exclusively by the installer/maintenance technician.
To Next Page
