BLIZZARD 400-800 C ENC 19 532104 - Rev.A
29
1 2 3 4 5 6
OPEN A
OPEN B
STOP
-
-
+
2.5
J6
24 V
"
15 W max
LAMP
LAMP
2.5
J9
24 V
"
100mA max
W.L. -
W.L. +
2.5
J15
24 V
"
100mA max
OUT -
+24V
2.5
J13
30
31
32
33
Translation of the original instructions
ENGLISH

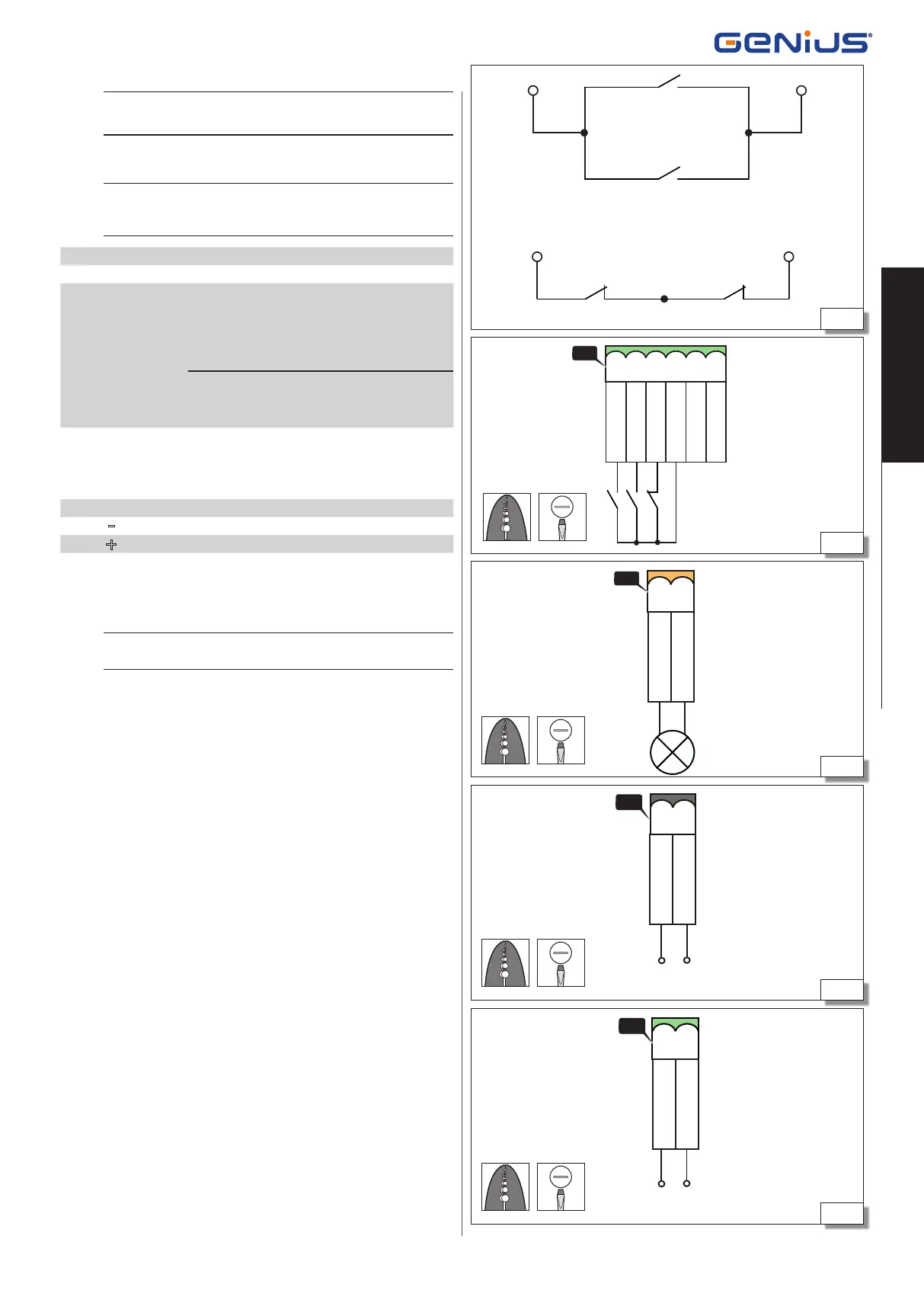

6.1 CONNECTIONS
Li
If using a MASTER-SLAVE configuration, first read § 10.
Do not exceed the maximum load of the outputs.
TERMINAL BOARD FOR ACCESSORIES (30).
Li
Multiple N.O. contacts on the same input must be connected in paral-
lel. Multiple N.C. contacts on the same input must be connected in
series (29).
INPUTS:
1 OPEN A N.O. contact: if active, commands the total opening of the gate.
2 OPEN B
N.O. contact: if active, commands the partial opening of the gate.
Can be configured in Advanced Programming (
Ob) as:
SAFE - N.C. contact for opening edges.
CLOSE - N.O. contact: if active, commands the closing of the gate.
Li
If logic b or C are used, the input OPEN B must be
configured as CLOSE in Advanced programming
(
Ob = 02).
3 STOP N.C. stop contact.
Can be configured in Advanced Programming (
SP) as:
SAFE - N.C. contact for closing edges.
OUTPUTS:
4-5
-
Accessories negative (500 mA max).
6
+ Accessories positive 24 V
"
(500 mA max).
Example of N.O. contacts connected in parallel
Example of N.C. contacts connected in series
TERMINAL BOARD FOR FLASHING LIGHT (31)
Li
The flashing light, if connected to the board, indicates that the auto-
mation is moving.
Terminal board for connecting the flashing light 24 V
"
.
Max load: 15 W.
TERMINAL BOARD FOR OUTPUT W.L. (32)
Output can be configured as a LED or as a timed output in Advanced
Programming (
OL).
When active, it supplies 24 V
"
.
Max load: 100 mA.
TERMINAL BOARD FOR OUTPUT OUT (33)
Output can be configured in Advanced Programming. The condition
under which it is activated is set in function
O1.
When active, it supplies 24 V
"
.
Max load: 100 mA.
