Translation of the original instructions
ENGLISH
!
During operation there is a risk of fingers and hands being trapped
between the rack, pinion and cover.

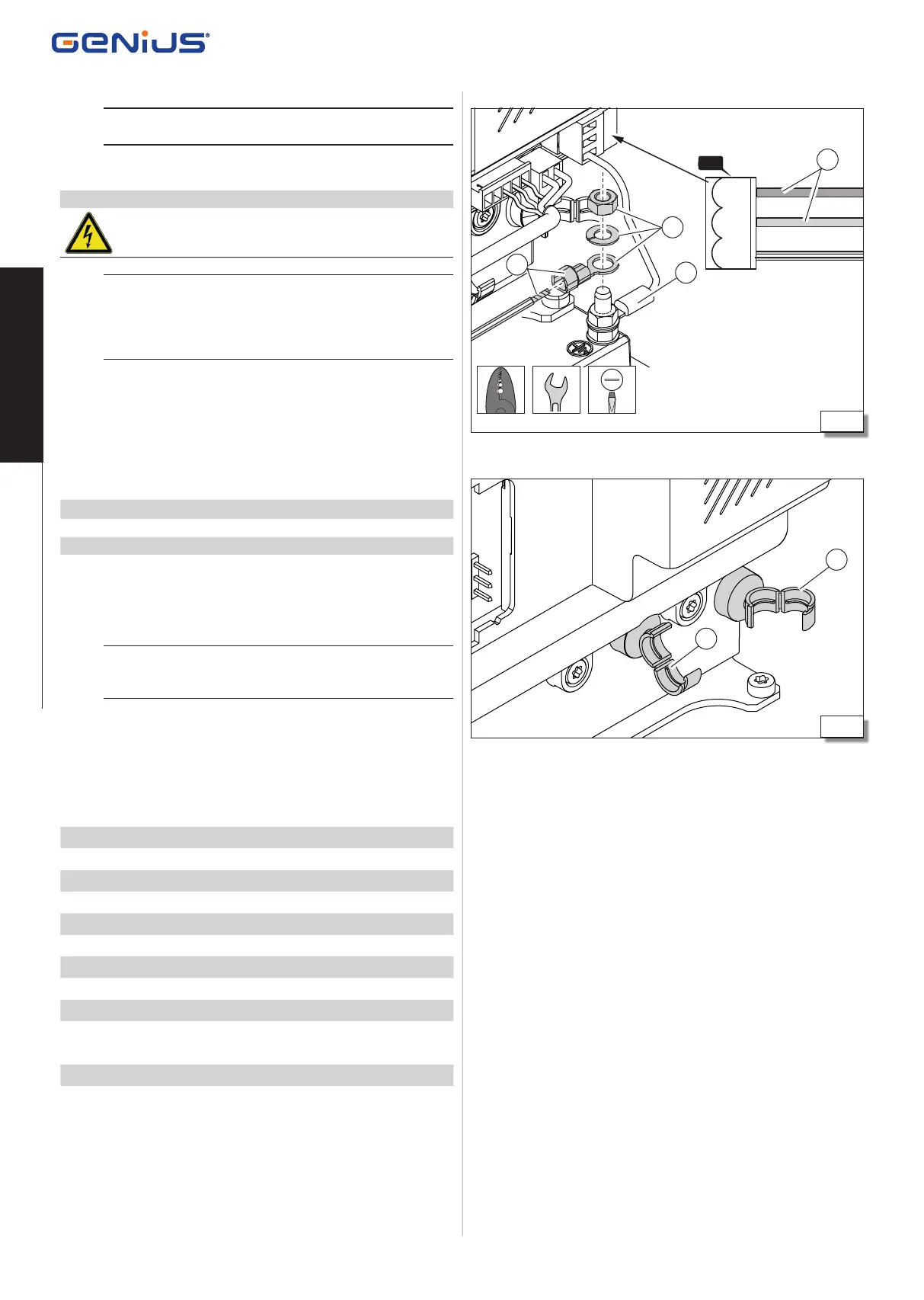

7.1 POWER SUPPLY AND EARTHING
RISKS
F
Disconnect power to the system before making the connections and
before removing the plastic cover of the electronic board. Before
switching power on, make sure that you have replaced the plastic
cover. Do not remove the earth wire that is connected to the electronic
board (41-1).
1. Crimp the earth wire of the power cable to the cable lug provided.
(41-2).
2. Install the cable lug, M5 washer and nut on the gearmotor earth
connection (41-3). Tighten the nut.
3. Connect the phase wires and neutral to terminals L and N respec-
tively of J2 (41-4).
7. START-UP
10 Mains power supply
PE Earth: do not remove the wire.
N Neutral
L Phase
4. Secure the mains power cable using the appropriate clamp
(42-1).
5. Secure the other cables in the appropriate clamp (42-2).
6. Switch on power to the system.
Li
When first switched on, the board display shows the firmware version
and then the S0 code flashes: this means that the Setup procedure
must be carried out.
7.2 LEDS CHECK
1. Move the gate to its half-travel position.
2. Check that the status of the LEDS is the same as that shown in
11. If it is not, check the connections.
11 LEDs check
STATUS MEANING
DL1 BUS § 7.6 “Bus device active” signalling LED
DL2 BUS MON. § 7.6 Bus diagnostics LED
DL3 RADIO1
First radio channel not active
DL4 RADIO2
Second radio channel not active
DL5 ERROR
Radio memory available
DL6 FCC
Closing limit switch disengaged
DL7 FCA
Opening limit switch disengaged
DL8 STOP
STOP or CLOSE not active
DL9 OPEN B
1)
2)
1)OPEN B or CLOSE not active
2)SAFE not active
DL10 OPEN A
Total opening command not active
Key:
= LED off
= LED on
