BLIZZARD 400-800 C ENC 30 532104 - Rev.A
-
-
+
OPEN A
OPEN B
STOP
BUS
BUS
1 2 3 4 5 6
-
-
+
OPEN A
OPEN B
STOP
BUS
BUS
1 2 3 4 5 6
N
L
PE
L
N
N
L
PE
L
N
1 12 2
SPRINT M24 MASTER SPRINT M24 SLAVE
J6
J2J4
J6
J2J4
49
48
Translation of the original instructions
ENGLISH

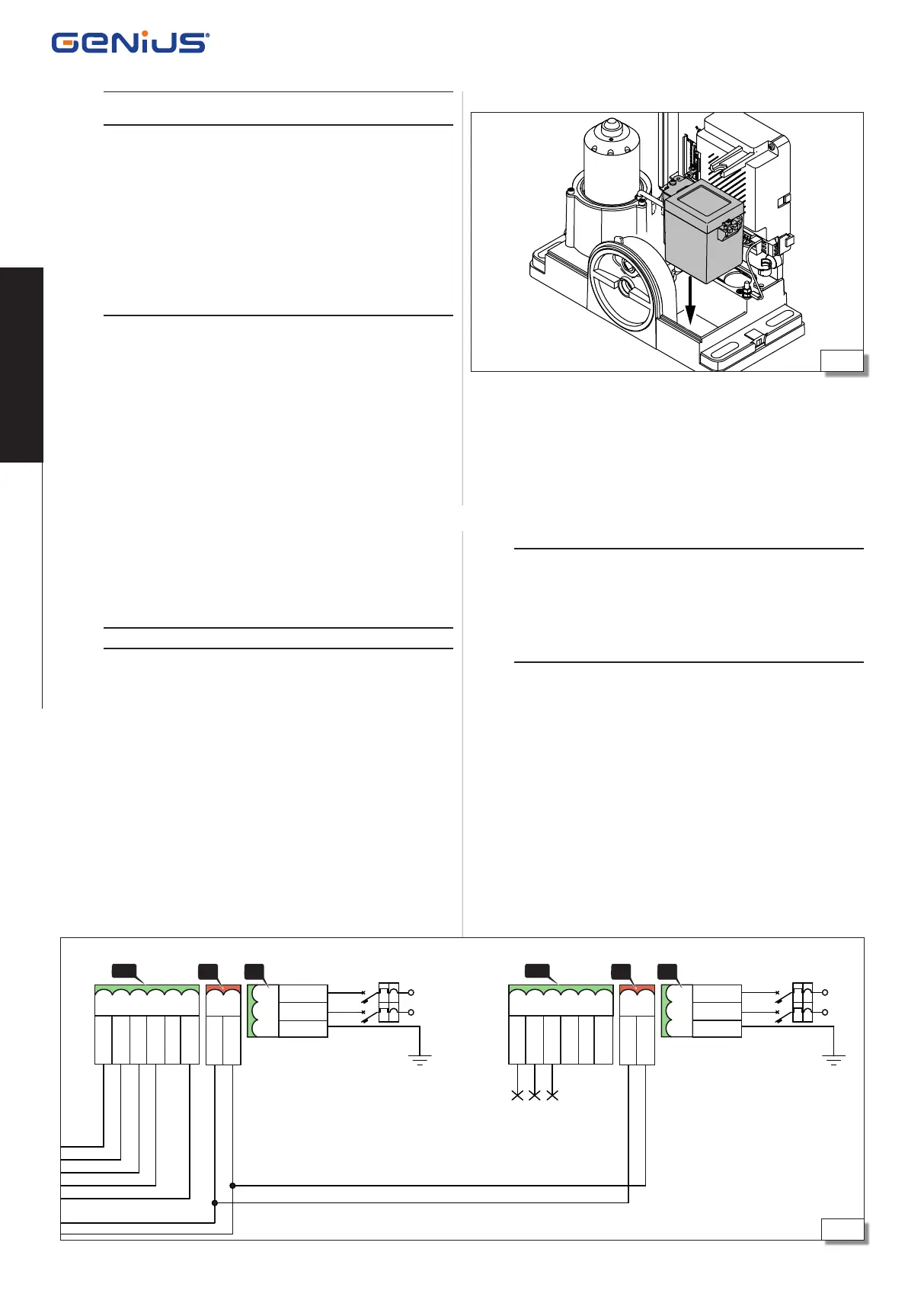

9.2 BATTERY KIT
!
Disconnect the battery kit if the automation is taken out of service.
Li
Battery kits with revision 1 are not compatible: the revision number
must be A1 or higher. Check the revision number on the label of the
battery kit board.
Recharge the battery kit by connecting it to the SPRINT M24, before
starting up the system. The full charging cycle of the battery kit is
72 hours.
The battery kit ensures that the automation is powered if there is a
mains power failure. The number of cycles that can be carried out
by the battery depends on the condition of the automation system (the
state of charge of the battery, the time elapsed since the mains power
failure, the ambient temperature, structure of the gate etc.).
1. Switch off power to the system.
2. Place the battery kit in its housing (48).
3. Connect the battery kit to connector J10 on the electronic board.
4. Switch on power to the system.
10. MASTER-SLAVE
If installing systems that have two opposite opening leaves, two
BLIZZARD 400-800 C ENC must be installed. The first (referred to as
the MASTER) controls the second (referred to as the SLAVE). It is up
to the installer to decide which is the MASTER and which is the SLAVE.
F
Cut the power to the system before making the connections.
1. Install one gearmotor for each leaf (§ 5).
2. Connect all the accessories to the MASTER (§ 6). The only ac-
cessory that can be connected to the SLAVE is the flashing light.
3. Install a pair of wires to connect the MASTER and SLAVE together
via the Bus. For the moment, do not connect the MASTER and
SLAVE via the Bus.
4. Carry out the Start-up and Set-up procedure for the MASTER and
SLAVE independently (§ 7).
5. Set the
Ct = MA function on the MASTER.
6. Set the
Ct = SL function on the SLAVE.
7. Connect the MASTER and SLAVE together via the Bus. Follow
the polarity indicated in 49.
8. Carry out the final operations (§ 8).
Li
If there is a fault, after having replaced the electronic board:
- Set the
Ct function with the Bus line disconnected
- Connect the MASTER and SLAVE together via the Bus. Follow the
polarity indicated in 49
- Carry out the Setup procedure from the MASTER: in this way, the Setup
procedure will also be carried out for the SLAVE.
