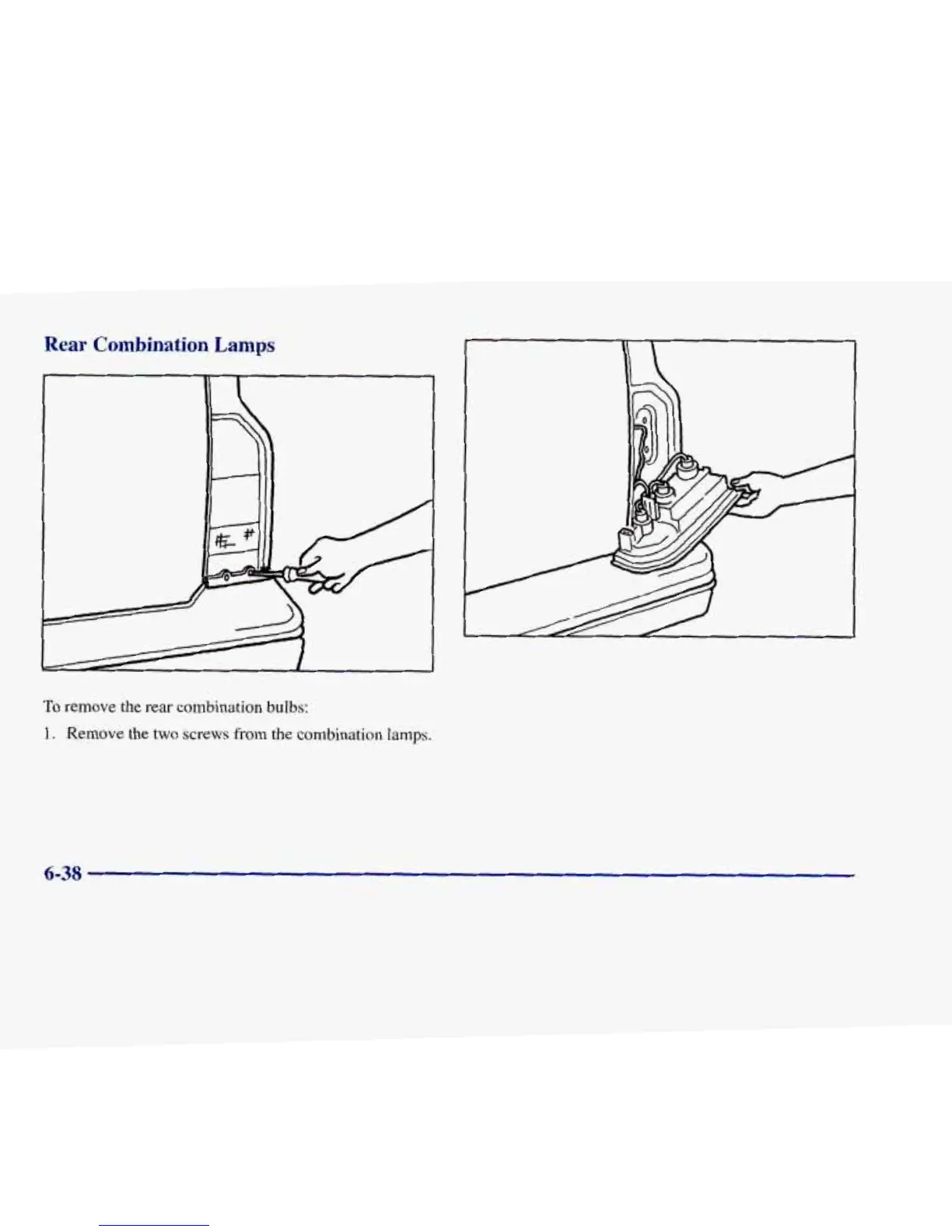

Rear

Combination

Lamps

remove the rear combination

bulbs:

Remove the

two

screws from

the

combination

lamps.

6-38
