GeoVision GV-AS100 Quick Start Guide

October 29, 2015 5

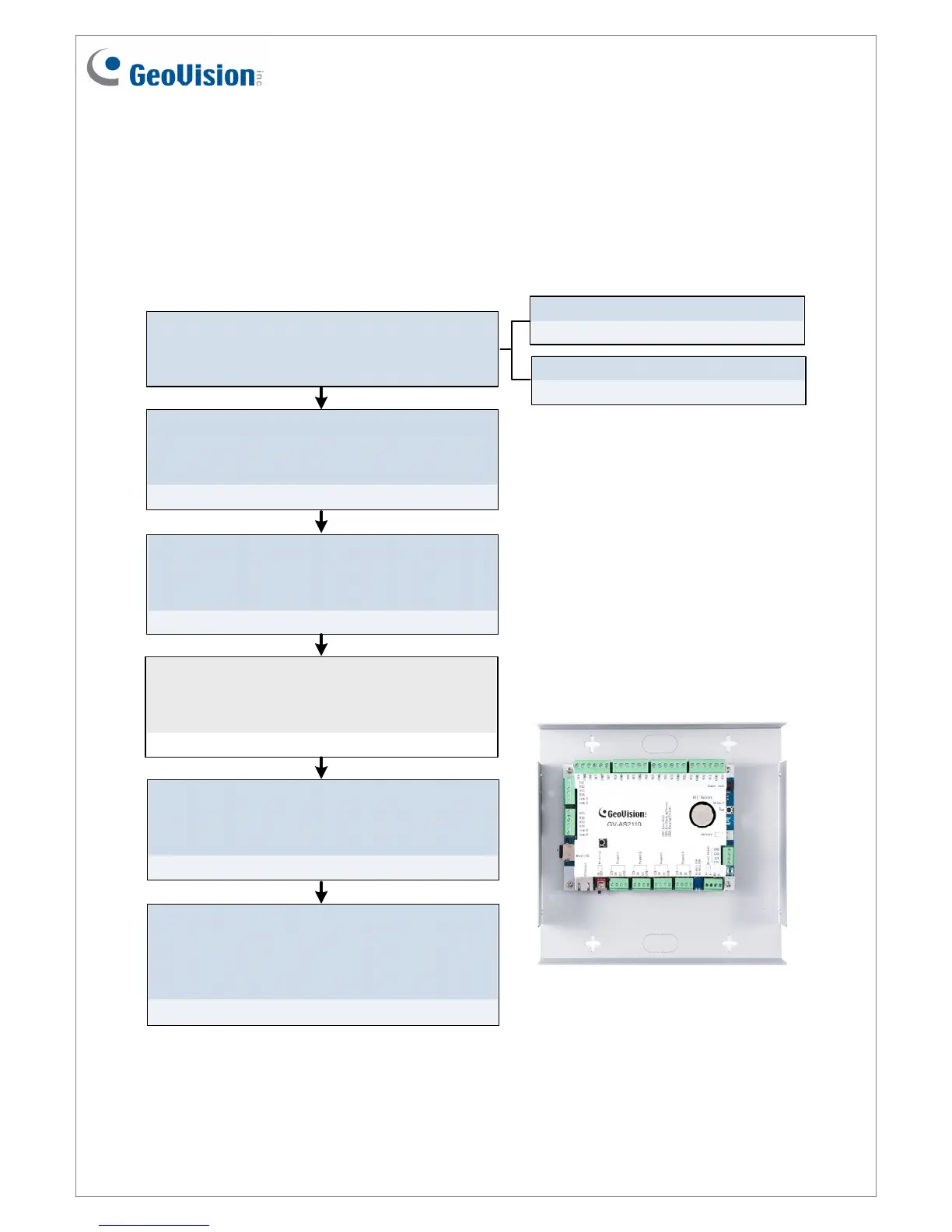

2. Physical Wiring for GV-AS210 / 2110 / 2120 / 410 / 4110 /
810 / 8110 and GV-EV48
2.1 GV-AS210 / 2110 / 2120
4.2.6 Connecting the PC
4.2.5 Connecting the Power
4.2.4 Connecting Backup Battery
4.2.3 Connecting Output Devices
4.2.2 Connecting Input Devices
Wiegand
4.2.1.A Wiegand Readers
RS485
4.2.1.B RS-485 Readers
Connect card readers
Connect AS210 / 2110 / 2120 to readers through
Wiegand or RS-485 interface.
Connect input devices
Connect AS210 / 2110 / 2120 to input devices
(Ex: a push button to exit).
Connect output devices
Connect AS210 / 2110 / 2120 to output devices
(Ex: a door lock).
Connect Backup Battery (Optional)
Connect AS210 / 2110 / 2120 to backup battery
in case the main power supply fails.
Connect to PC
Connect AS210 / 2110 / 2120 to a computer to
access its Web interface and connect with GV-
ASManager.
Connect to Power
Connect AS210 / 2110 / 2120 to power using a
12V DC adaptor (or a PoE adapter for AS2120).
GV-AS210 / 2110 / 2120

GeoVision GV-AS100 Specifications

General

Interface	RS-485
Case design	Housing
Built-in UPS	-
Number of users	40000 user(s)
Maximum number of doors	1 door(s)
Number of Wiegand readers supported	1
Power consumption	200 mA
Operating temperature (T-T)	0 - 65 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	27 mm
Width	96 mm
Height	137 mm
Weight	250 g
