GeoVision GV-AS100 Quick Start Guide

October 29, 2015 2

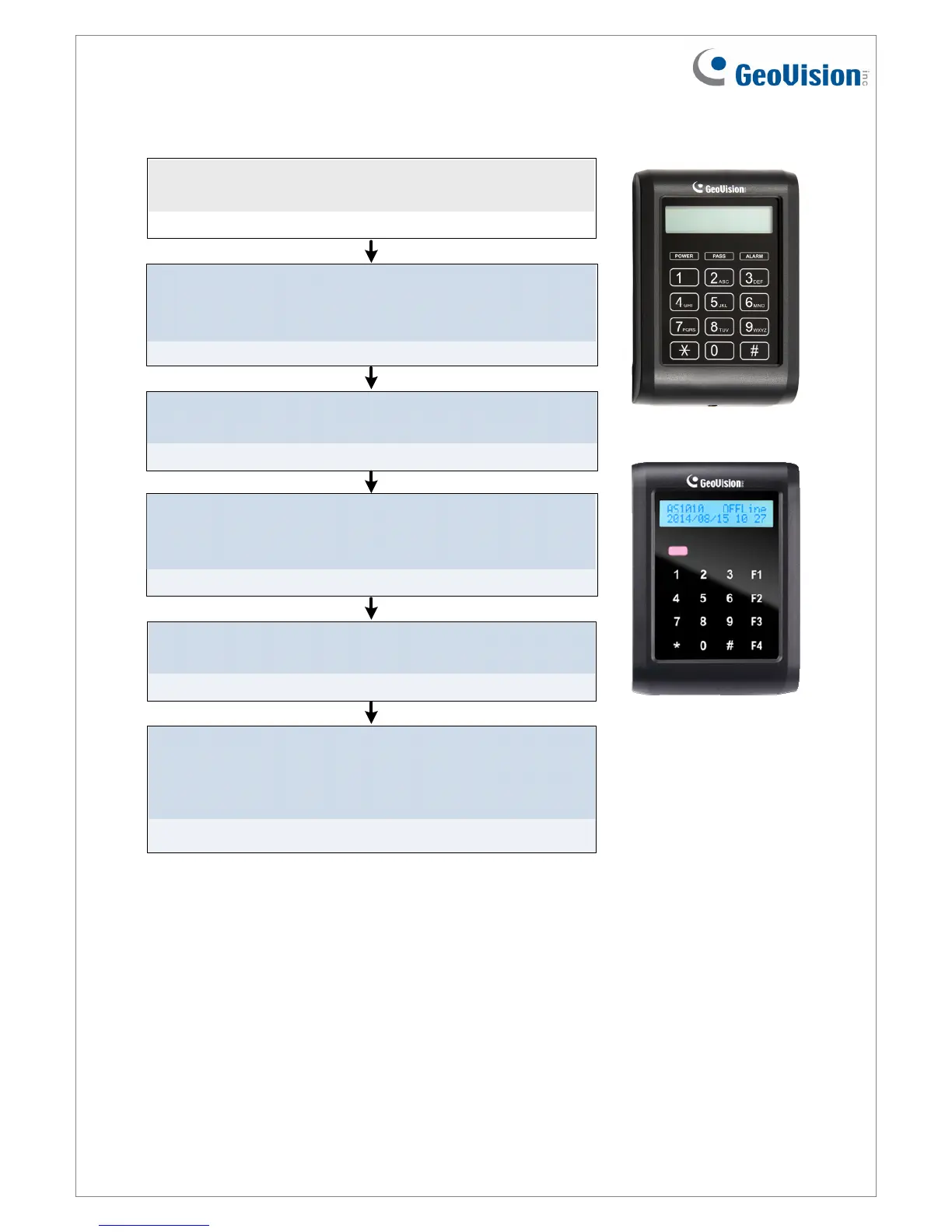

1.1 GV-AS100 / 1010
1.3 Programming Mode
1.2.5 Connecting the Power
1.2.4 Connecting the PC
1.2.3 Connecting Output Devices
1.2.2 Connecting Input Devices
1.2.1 Connecting Card Readers
Connect card readers (Optional)
Connect AS100 / 1010 to a reader.
Connect input devices
Connect AS100 / 1010 to input devices (Ex: a push button to
exit).
Connect output devices
Connect AS100 / 1010 to output devices (Ex: a door lock).
Connect to PC
Connect the controller to a computer through RS485
connection (AS100) or network connection (AS100 & AS1010).
Connect to Power
Connect AS100 / 1010 to power using the supplied adaptor.
Programming the GV-AS100 / 1010
Create a Master Card (AS100) or Enroll / Delete Card
(AS1010) to add and delete cards. For other settings, use the
built-in keypad to type the commands.
GV-AS100
GV-AS1010

GeoVision GV-AS100 Specifications

General

Interface	RS-485
Case design	Housing
Built-in UPS	-
Number of users	40000 user(s)
Maximum number of doors	1 door(s)
Number of Wiegand readers supported	1
Power consumption	200 mA
Operating temperature (T-T)	0 - 65 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	27 mm
Width	96 mm
Height	137 mm
Weight	250 g
