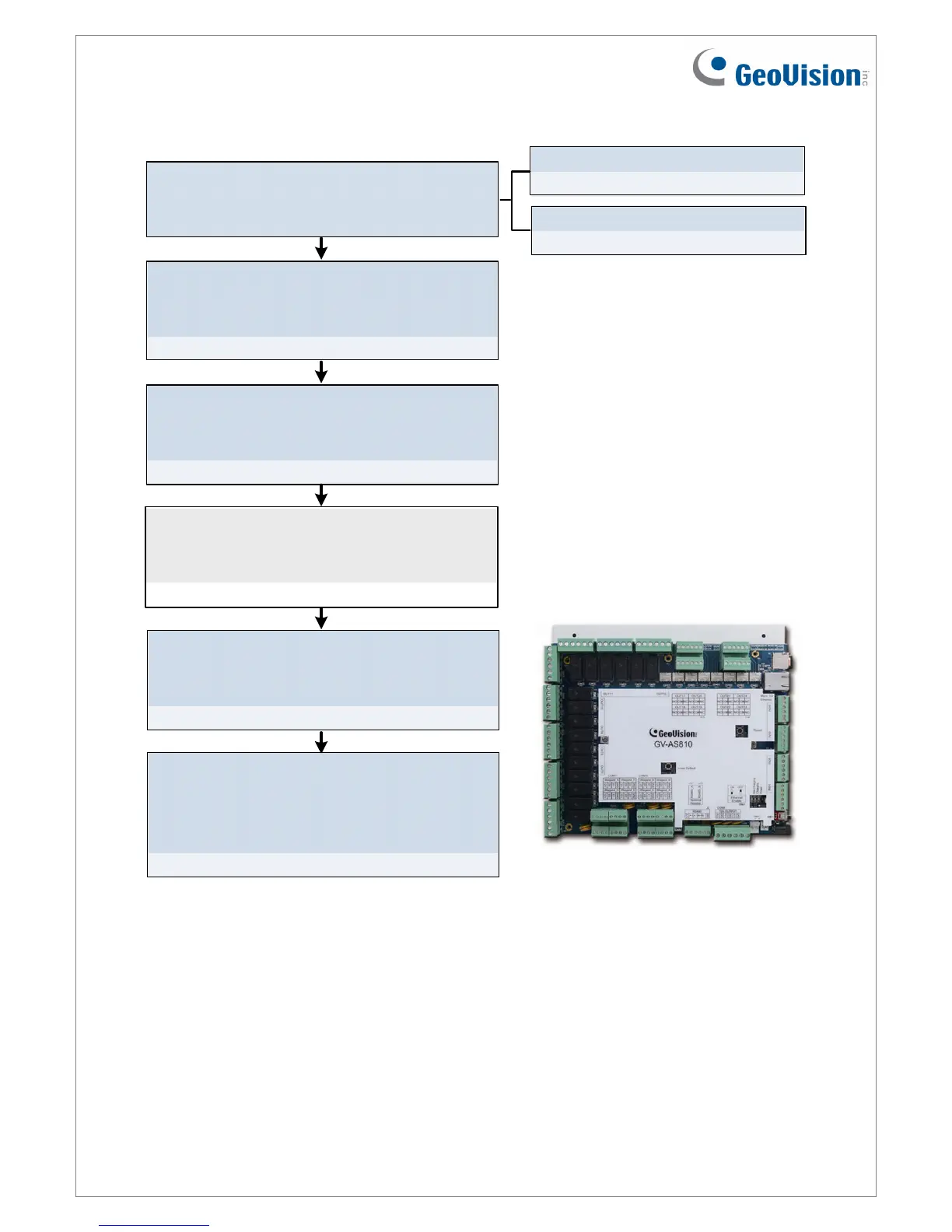

GeoVision GV-AS100 Quick Start Guide

October 29, 2015 6
2.2 GV-AS410 / 4110 / 810 / 8110
5.2.6 Connecting the PC
5.2.5 Connecting the Power
5.2.4 Connecting Backup Battery
5.2.3 Connecting Output Devices
5.2.2 Connecting Input Devices
Wiegand
5.2.1.A Wiegand Readers
RS485
5.2.1.B RS-485 Readers
Connect card readers
Connect AS410 / 4110 / 810 / 8110 to readers
through Wiegand or RS-485 interface.
Connect input devices
Connect AS410 / 4110 / 810 / 8110 to input
devices (Ex: a push button to exit).
Connect output devices
Connect AS410 / 4110 / 810 / 8110 to output
devices (Ex: a door lock).
Connect Backup Battery (Optional)
Connect AS410 / 4110 / 810 / 8110 to backup
battery in case the main power supply fails.
Connect to PC
Connect AS410 / 4110 / 810 / 8110 to a
computer to access its Web interface and
connect with GV-ASManager.
Connect to Power
Connect AS410 / 4110 / 810 / 8110 to power
using the supplied 12V DC adaptor.
GV-AS410 / 4110 / 810 / 8110

GeoVision GV-AS100 Specifications

General

Interface	RS-485
Case design	Housing
Built-in UPS	-
Number of users	40000 user(s)
Maximum number of doors	1 door(s)
Number of Wiegand readers supported	1
Power consumption	200 mA
Operating temperature (T-T)	0 - 65 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	27 mm
Width	96 mm
Height	137 mm
Weight	250 g
