GeoVision GV-AS100 Quick Start Guide

October 29, 2015 iii
Built-in Battery (GV-AS1010 / 110 / 1110 / 120 / 210 / 410 / 810 & GV-EV48)

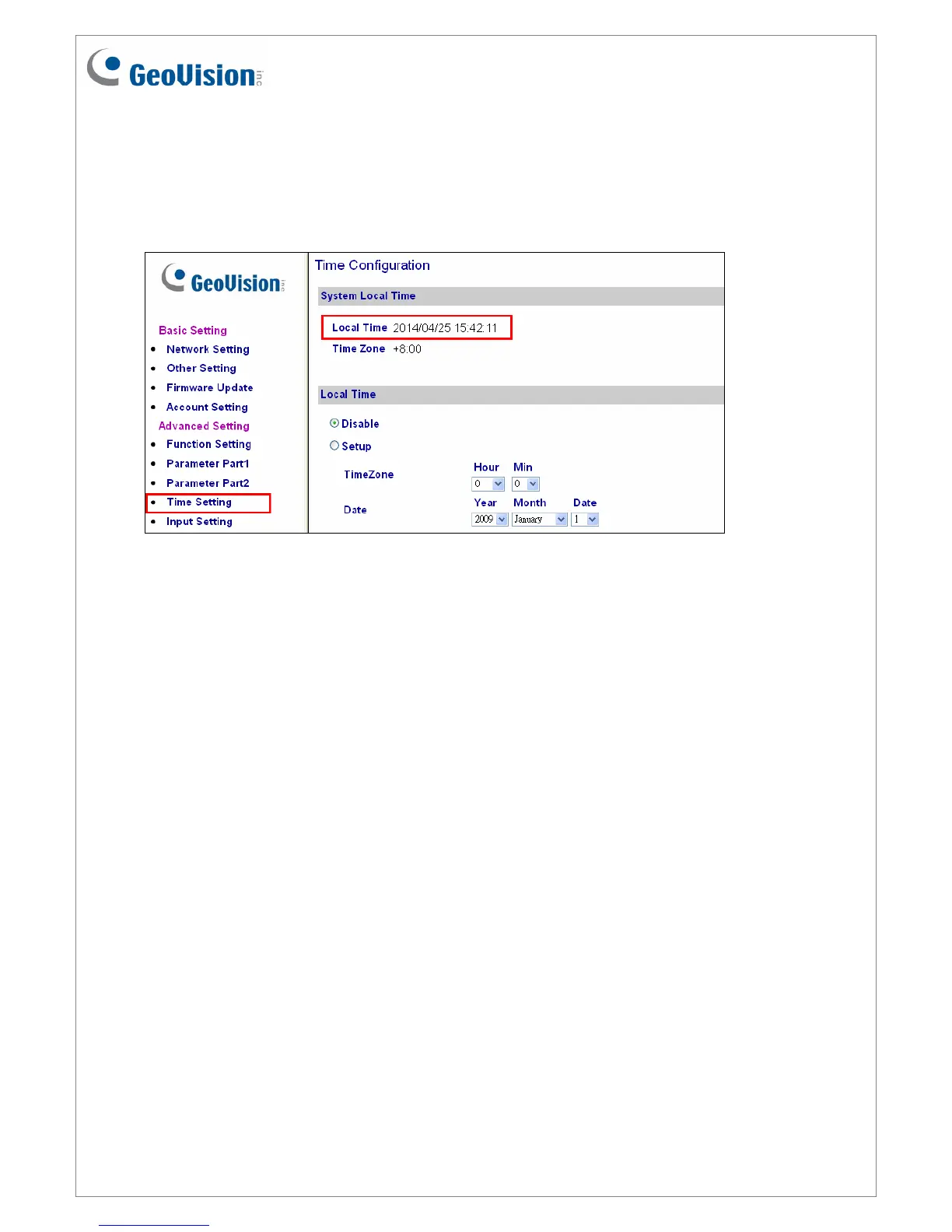

When the controller runs out of battery, the local time on the controller will be reverted back
to 1999/12/31. The controller time can be found on the Web interface of the controller on the
Time Setting page and in the Access Monitor / Alarm Monitor / Event Monitor of GV-
ASManager.
When you see the controller year shown as 1999 or 2000, disconnect the controller from
power and reconnect it to power. If the year is still shown as 1999 or 2000, the controller
battery needs to be replaced. When this occurs, connect the controller to a backup battery
and maintain connection with GV-ASManager at all times. When connected to GV-
ASManager, the controller’s time will be synchronized with GV-ASManager’s time.

GeoVision GV-AS100 Specifications

General

Interface	RS-485
Case design	Housing
Built-in UPS	-
Number of users	40000 user(s)
Maximum number of doors	1 door(s)
Number of Wiegand readers supported	1
Power consumption	200 mA
Operating temperature (T-T)	0 - 65 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	27 mm
Width	96 mm
Height	137 mm
Weight	250 g
