12.7.2 Voltage Load Expansion (Optional)

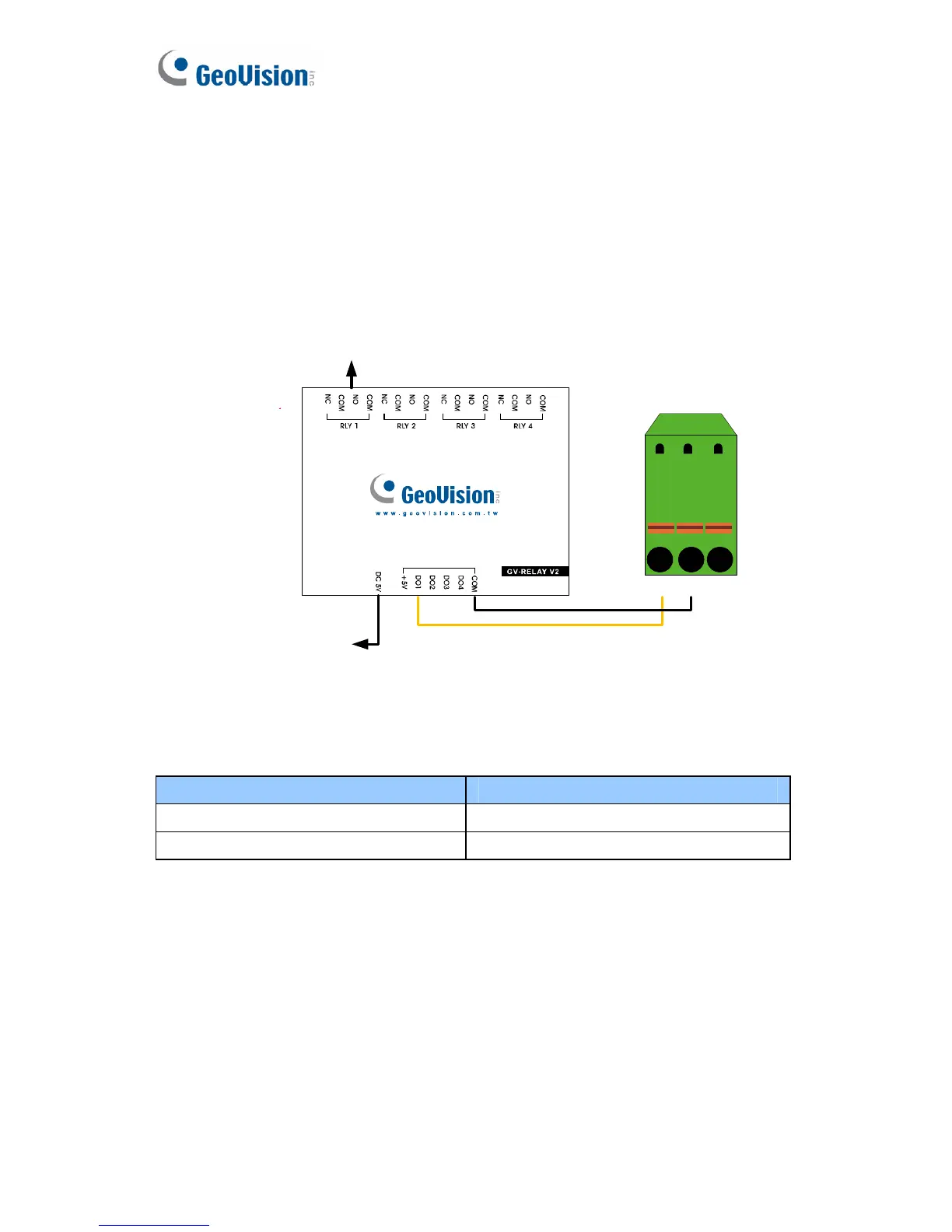

The camera can only drive a maximum load of 200mA 5V DC. To expand
the maximum voltage load to 10A 250V AC, 10A 125V AC or 5A 100V DC,
connect the camera to a GV-Relay V2 module (optional product). Refer to
the figure and table below.
Connect to Power
Output Device
I/O
3
2
1
Figure 12-14
GV-Relay V2 I/O Wires
COM Pin 2 (Ground)
DO1 Pin 1 (Output)
