Box Camera
2
2.4.2 GV-BX1200 Series / 1300 Series / 1500 Series /
2400 Series / 2500 Series / 3400 Series / 5300
Series

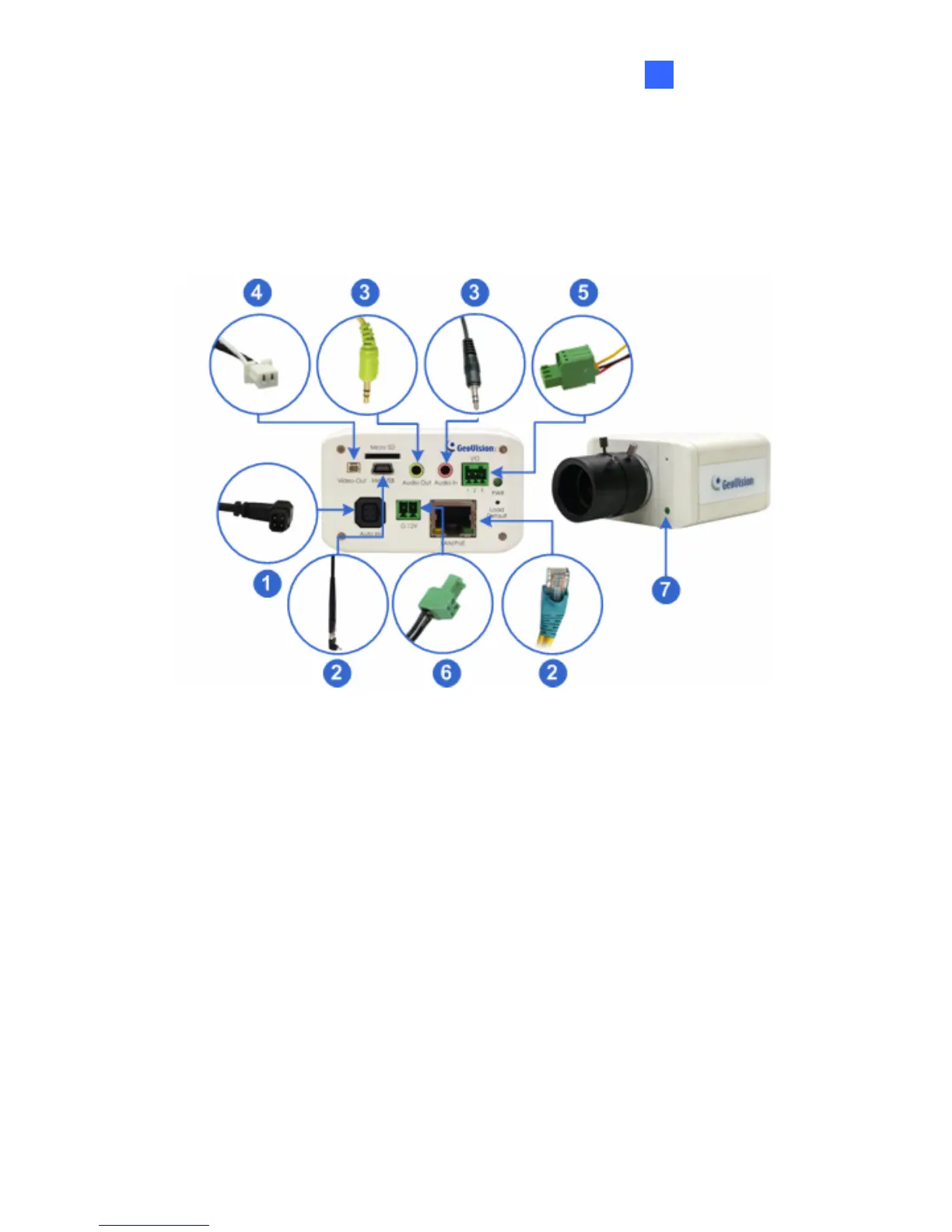

Figure 2-4
1. If you are using an auto iris model, plug the iris control cable to the
Auto Iris Connector on the camera.
2. Connect to network using one of the following methods:
• Wired Connection: Use a standard network cable to connect the
camera to your network and optionally connect a USB hard drive
to the mini USB port.
• Wireless Connection: Connect a GV-WiFi Adapter (optional
accessory).
3. Optionally connect a speaker and an external microphone.
4. Optionally connect a monitor using a Video Out wire. Enable this
function by selecting your signal format at the TV Out field on the Web
interface. See 21.1.1 Video Settings.
17
