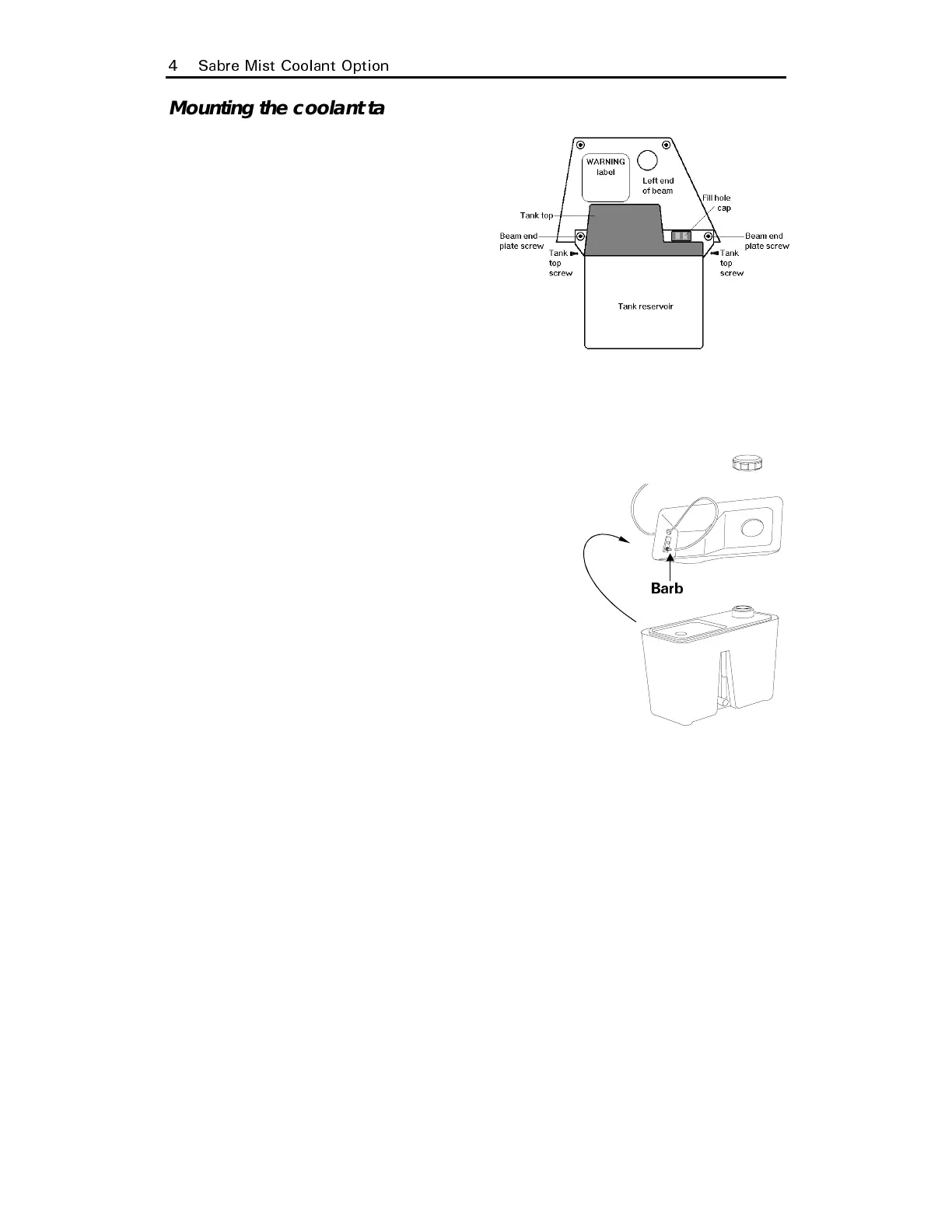

Mounting the coolant tank
1. Remove the fill hole cap
from the tank top.
Remove the two tank top
screws attaching the top to
the reservoir, then remove
the top.
Remove the two lower left
beam end plate screws
shown at the right.
Attach the tank reservoir
and bracket to the left end
of the beam with the screws
removed at step 3.
Assembling the coolant tank
1. Feed the hoses through the small hole in
the tank top.
2. Push the blue hose (the air hose) onto the
barb as shown in the illustration at the
right.
Note: You may need to trim excess hose
so that it fits comfortably within the
enclosure.
