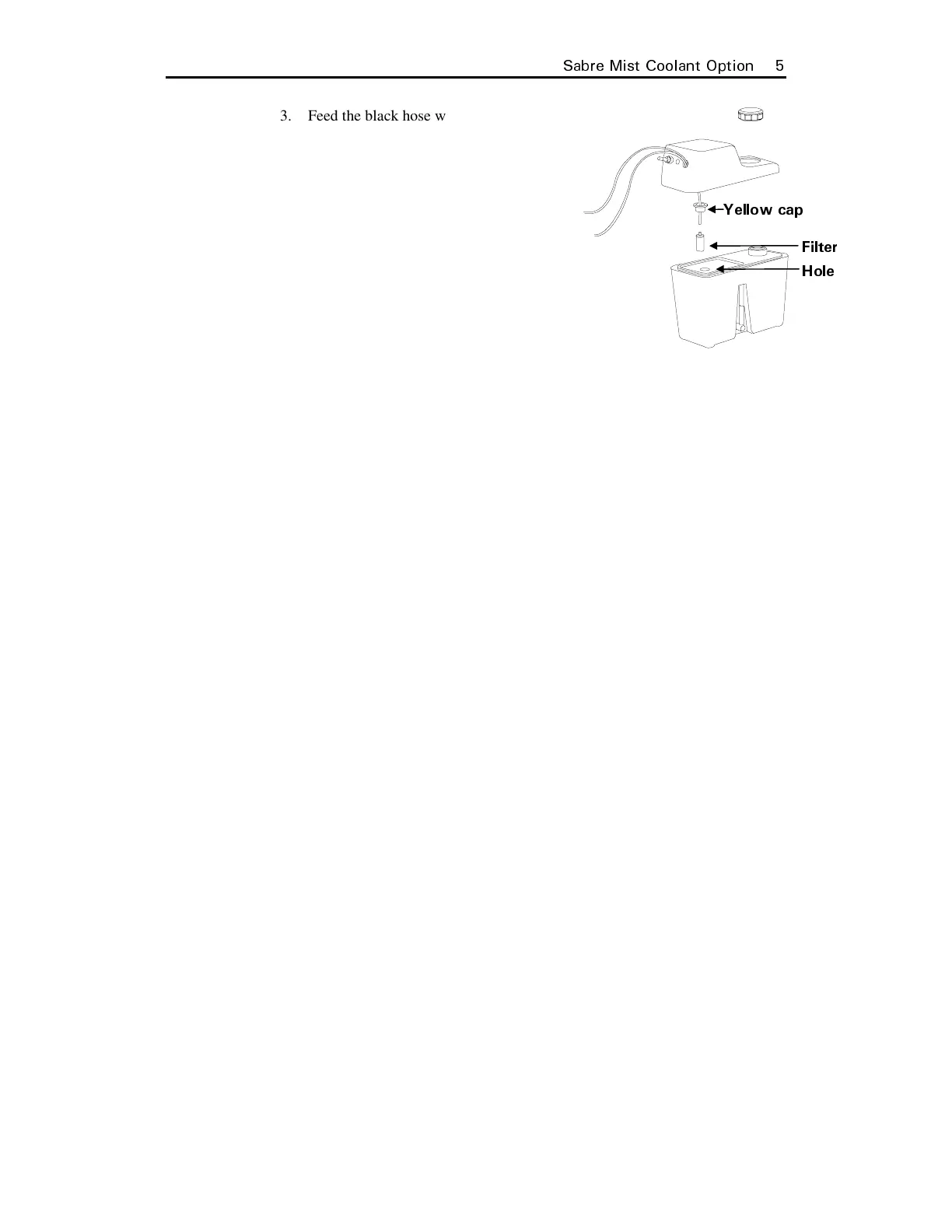

3. Feed the black hose with the red stripe
(coolant hose) through the yellow cap
supplied in the kit as shown in the
illustration.
4. Attach the filter supplied in the kit to the
end of the hose and feed it through the
hole in the top of the tank reservoir until
it rests on the bottom of the tank.
5. Press the yellow cap into the hole in the
top of the tank reservoir.
6. Replace the tank top and secure it to the
reservoir with the two hex screws.
7. Replace the fill hole cap.
8. Screw a compressed air quick disconnect fitting to the outside of the tank
top opposite of where you attached the blue air hose over the barb on the
inside. Seal the threaded connection with teflon tape.
Filling the coolant tank
TRIM mist coolant is a vegetable-based liquid which can skin over or clot if left
in the coolant tank for awhile. This can create restrictions in the liquid tubing,
the nozzle tips, and the pickup filter and tube. Do not mix more than you are
likely to use for a job.
1. Prepare the coolant mixture by mixing water and coolant in a 10-to-1 ratio.
You must use only TRIM mist coolant with the Trico mist system.
2. Remove the fill hole cap and pour the coolant mixture into the tank. Do not
overfill.
If you do not use all the mixture, empty any leftover mixture into a separate,
covered container. Put about a cup of plain warm water in the tank and open the
air and coolant valves as described in the next paragraph to rinse out the system.
Leftover coolant mixture can be reused. Just skim off any skin on the top of the
mixture and pour it into the coolant tank.
