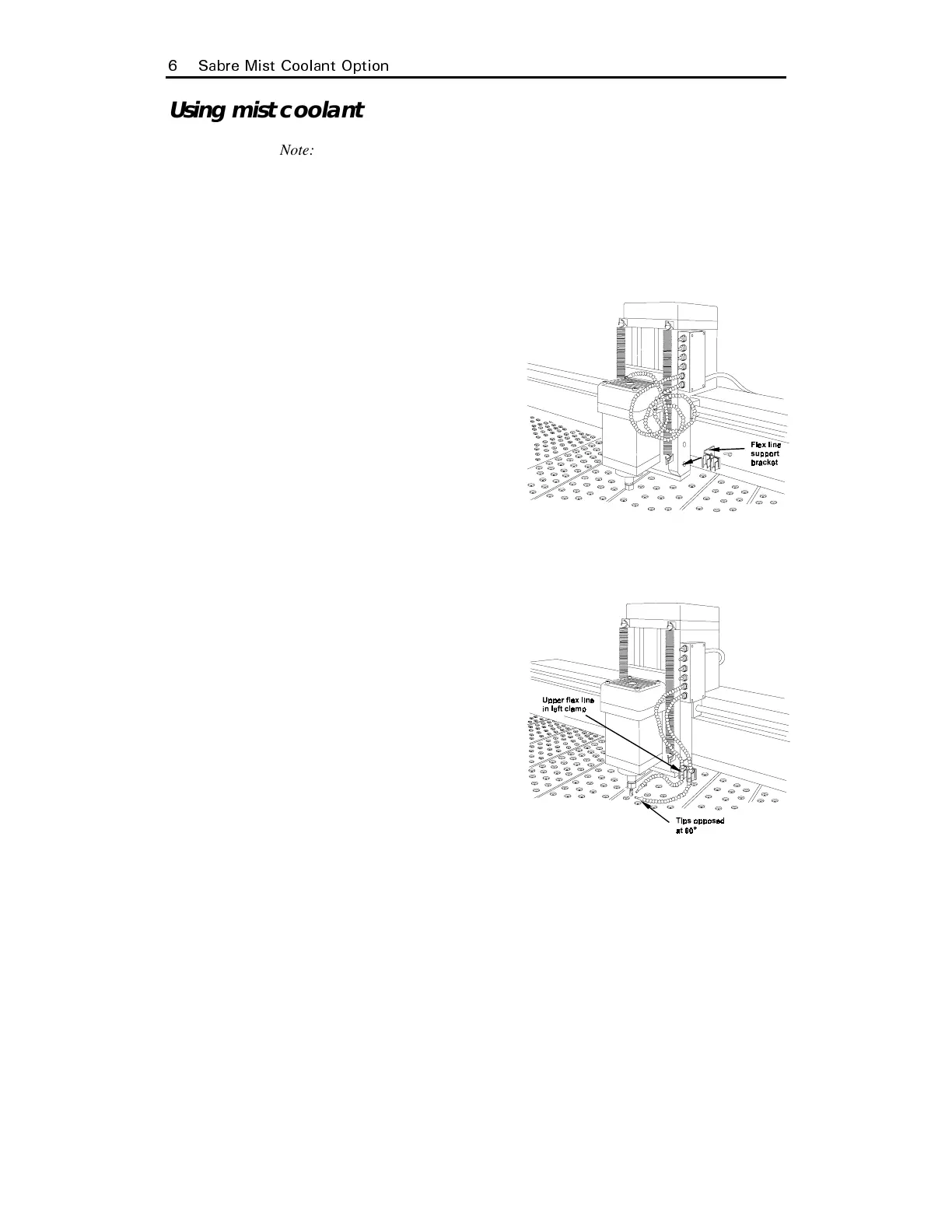

Using mist coolant
Note: The Mist Coolant Option cannot be used at the same time as the Chip
Removal System or the Engraving Option.
1. Disconnect the chip removal system vacuum hose from the vacuum shroud
and tuck it behind the motor carriage.
2. Remove the pressure foot and vacuum shroud from the carriage by
removing two screws from each side of the shroud. Store the screws with the
shroud.
3. Attach the flex line support
bracket to the lower right
vacuum shroud hole in the
carriage using an M6 X 16
socket screw and washer
supplied in the kit.
CAUTION: When uncoiling
and coiling the flex lines, do
not twist them or you may
kink the hoses within the
lines. To unkink hoses, pop
the flex line segments apart
one at a time until you locate
the kink, then reconnect the
line segments.
4. Carefully uncoil the flex lines.
5. Attach the upper flex line (Line
1) to the left clamp. Attach the
lower flex line (Line 2) to the
right clamp.
6. Position the tips at right angles
to each other, aimed at the point
where the tool will enter the
material being cut, and pointing
slightly down and forward. Do
not aim the tips pointing
toward the rear of the router
table
−
coolant can be sprayed
on the carriage lead screw
and damage it.
7. Use the quick disconnect plug to connect the compressed air hose to the
coolant tank and turn on the compressed air.
