Class II, Type A2 Biosafety Cabinet
User Manual
5
Electrical Services
The Class II, Type A2 Biosafety Cabinet operates on an 115v, 1-phase, 60 Hertz, 10 Amp electrical system. During
shipment, the power cord is coiled within the control panel. The plug of the power cord is a NEMA 5-15P
3-pronged hospital grade and should be connected to the appropriate 3-prong 115v receptacle. For convenience
of operations and service, all circuitry is located within the control panel.

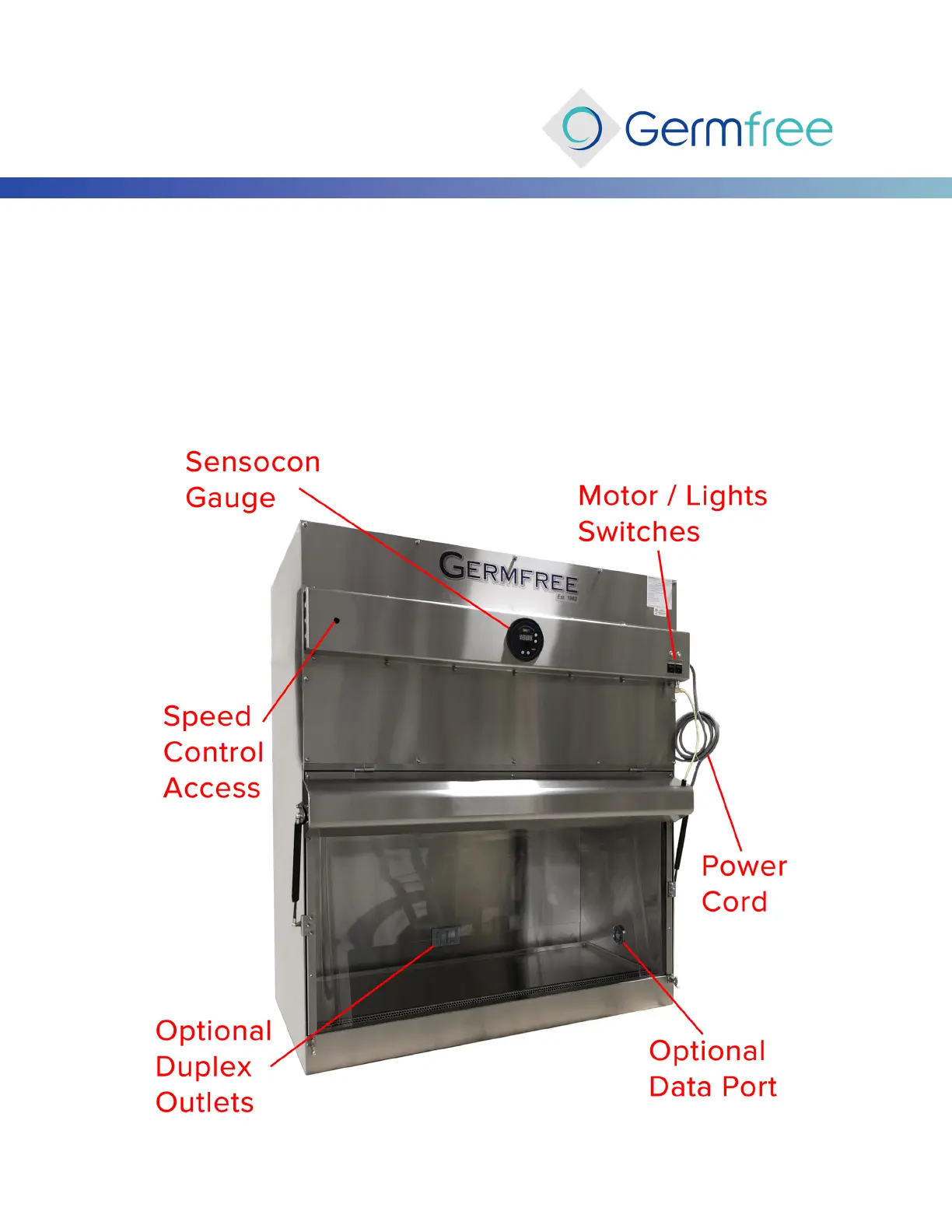

Standard services include the Motor ON/OFF switch, light switch, a Sensocon or Magnehelic (see front cover
image) gauge at the front of the unit and a speed control located in the control panel behind a plastic cap.
Optional duplex electric outlets may be located in the rear of the work area and optional data ports and/or
stopcocks may be placed at either side at the front of the unit, according to your specifications.
