4.8 Electrical safety tests
Ceiling-mounted version
1
2
3
4
5

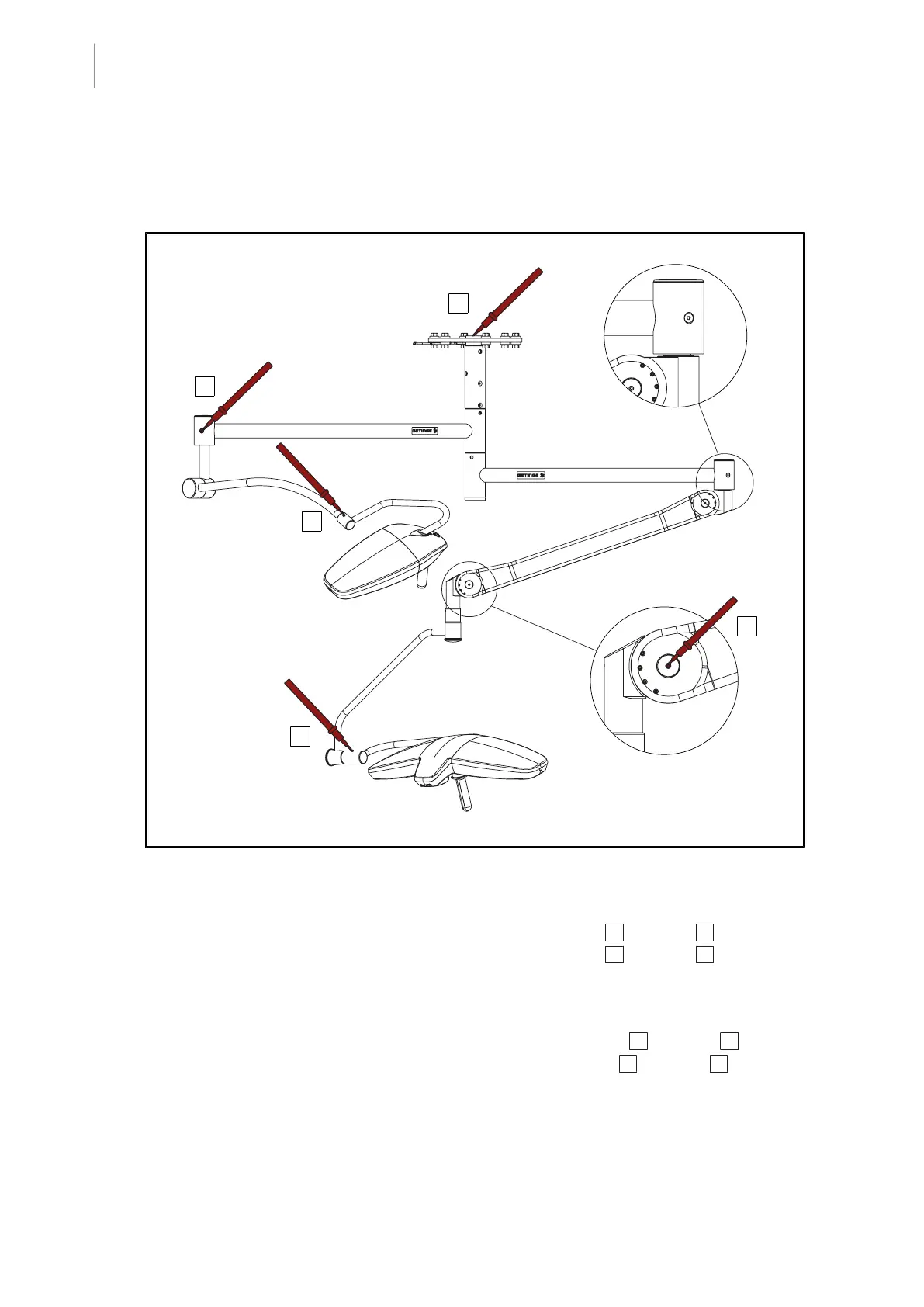

Fig.42: Safety tests, ceiling-mounted version
Safety test:
• For a single fork lighthead, perform a safety test between point 1 and point 2 .
• For a single fork lighthead, perform a safety test between point 1 and point 5 .
The earth resistance should be less than or equal to 300mΩ.
Continuity test:
• For a single fork lighthead, perform a continuity test between point 2 and point 3 .
• For a dual-fork lighthead, perform a continuity test between point 4 and point 5 .
