Connect the wiring of the upper and lower element. Do not forget to connect
the ground cable. Make sure that the correct cable is connected to the
corresponding control board slot.
4.3.2 Transport belts
Place the belt around the toothed wheel. (Pic 35), make sure that the arrows
on the belt are pointing in the movement direction of the belt.

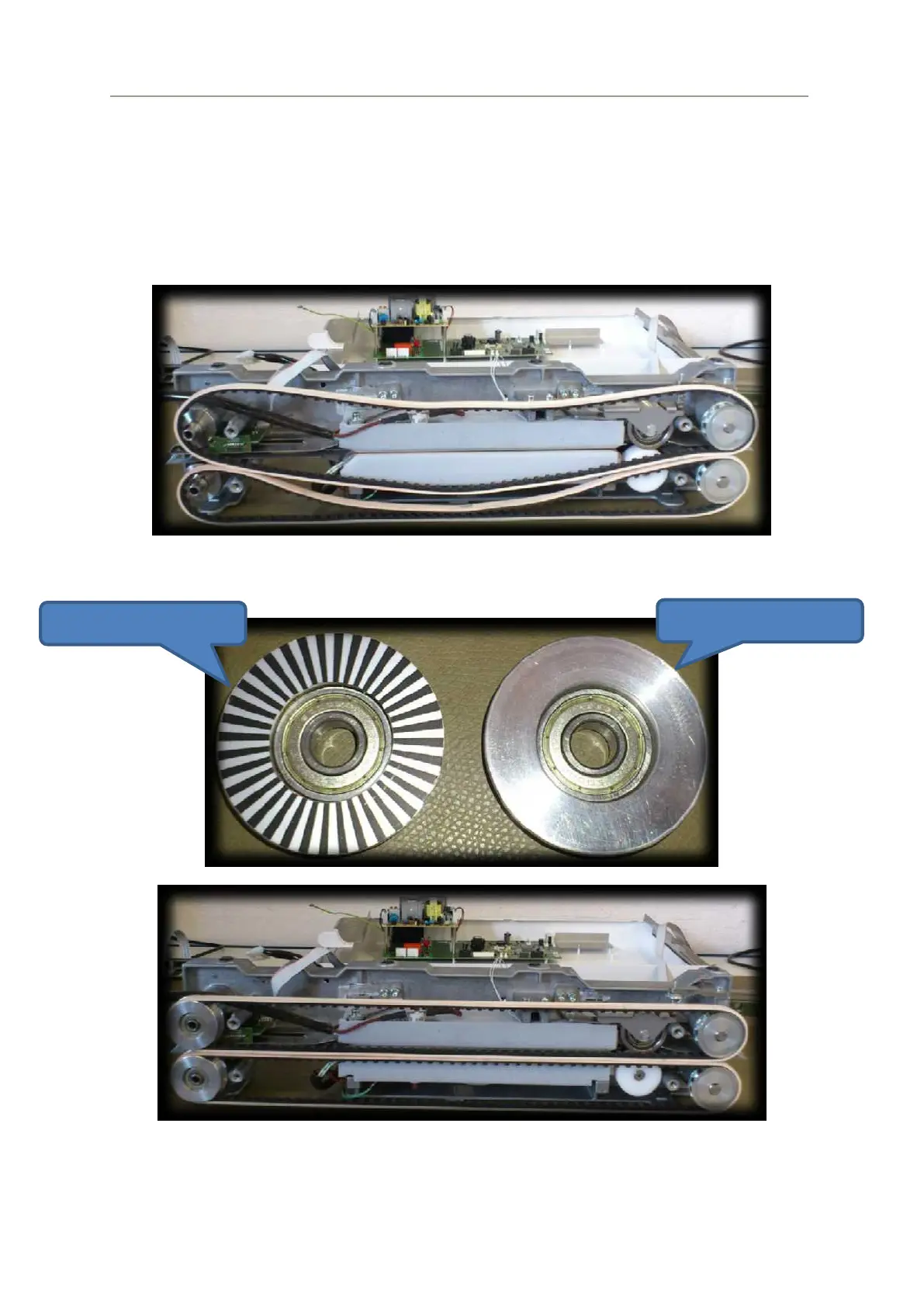

Pic 35
Place the smooth wheel in the belt (Pic 37). Make sure the wheel with sticker
goes to the upper belt (Pic 36).
Pic 36
Pic 37
