3.1.3. Permanent Mounting
For permanent mounting, brackets must be attached to the housing using the T-slots on the
base of the unit. Ensure that the mounting surface (e.g. cabinet door, print station side panel)
is sufficiently strong to support the weight of the
e
-Brick and attached cabling; four fixing
points are recommended, see Figure 4.

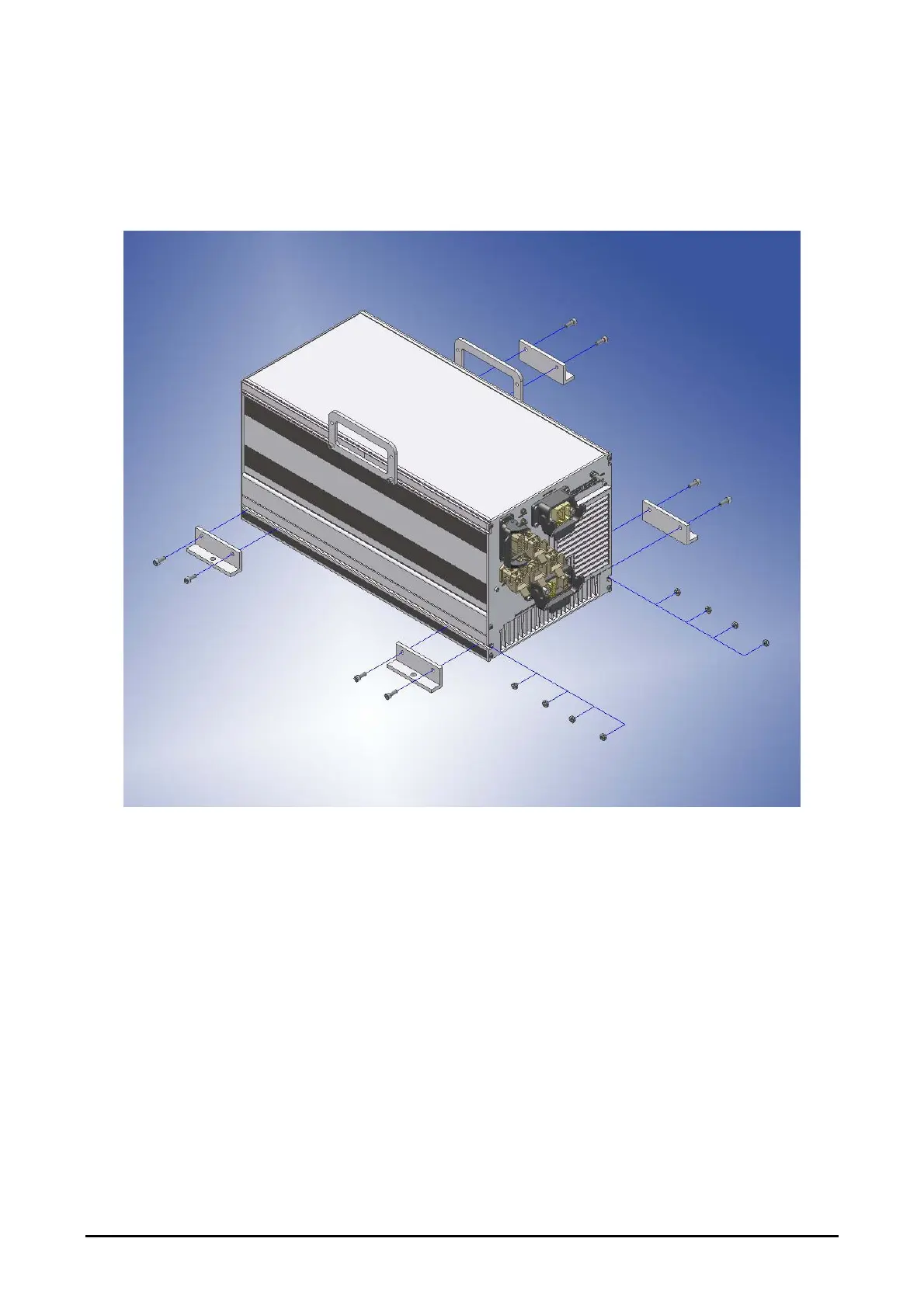

Figure 4: Cabinet mounting
Note: the fixing brackets shown in Figure 4 are for illustration purposes only; specific brackets
or fixings will be determined by the application. If necessary, please contact GEW for advice
and engineering support.
GEW UV
e
-Brick installation and operating manual 13 of 49
