GEW e-Brick 9kW - Page 24

P1
P7
24V
P1 & P7
not fitted
on slave
P8 only fitted
on Profibus
master e-Brick
PE
K1
P8
P6
P2
P4
P3
P5

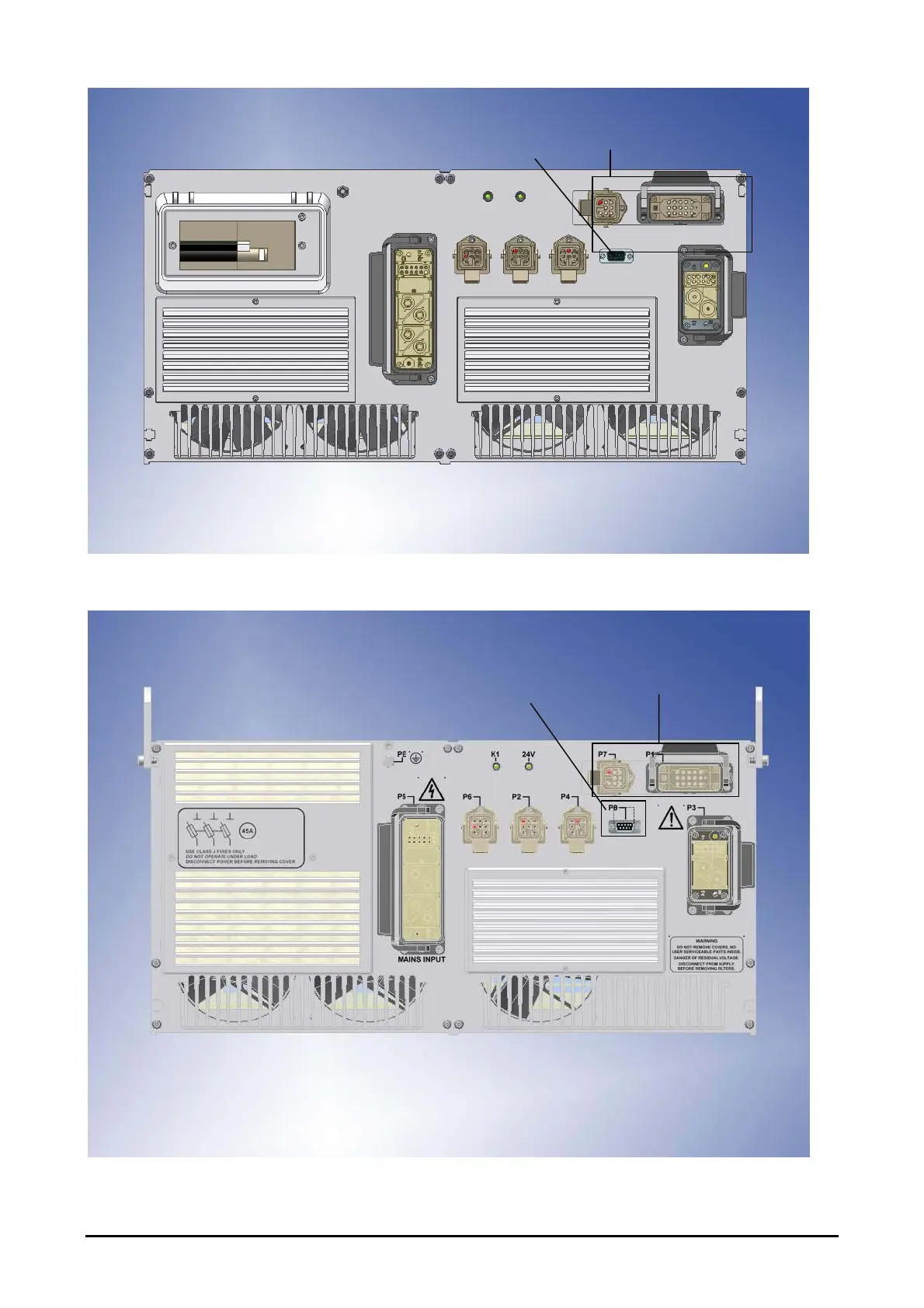

Figure 7(a): Rear panel (22kW Master) connection details
P8 only fitted
on Profibus
master e-Brick
P1 & P7
not fitted
on slave
Figure 7(b): Rear panel (22kW – 33276/33485 Variant) connection details
GEW UV
e -Brick installation and operating manual 24 of 49
