GEZE E740 Syncro - 6 Mounting Instructions; Mounting Instructions for Inward-Opening Window

27
2
3
6
4
4
6
3
2
6 Mounting instructions
6.1 Mounting instructions for inward-opening window
6.1.1 Drilling template for 2 drives

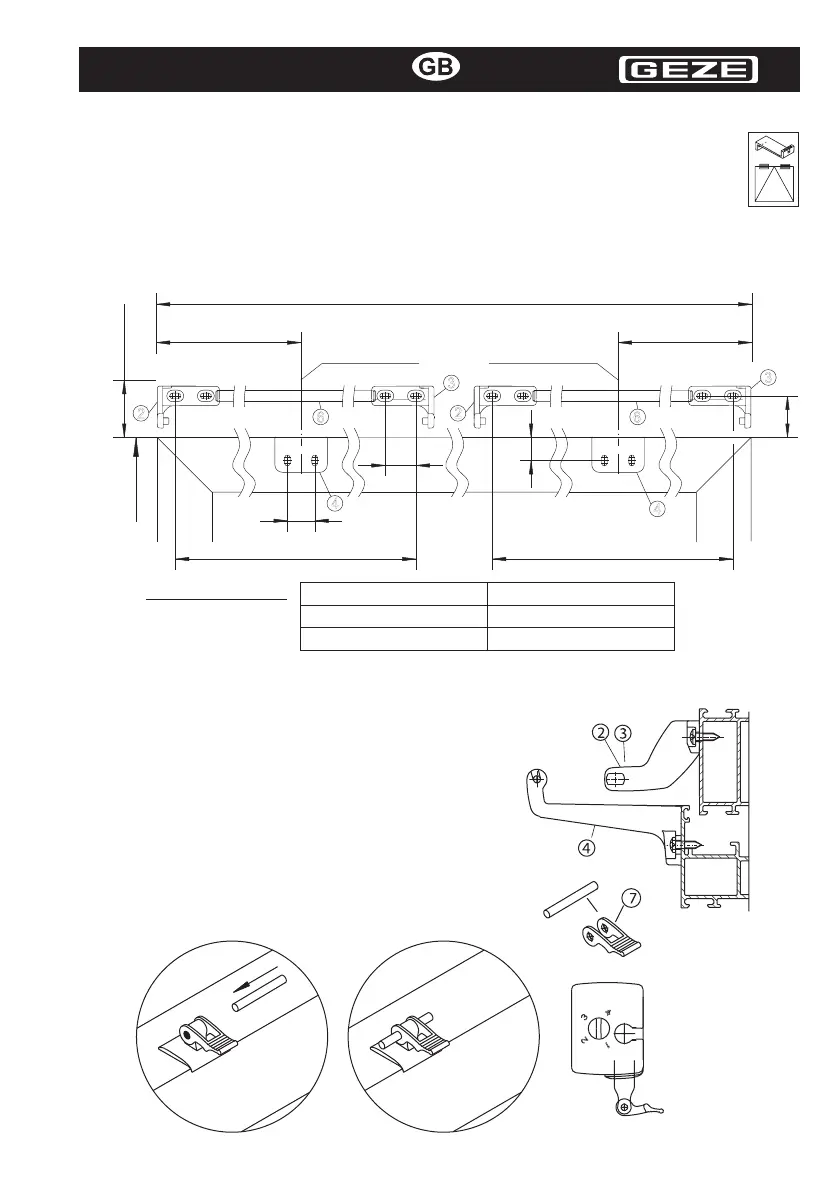

Drill the tting holes for the drive holders (2), (3) and bracket IW (4),
use the drilling template (colour blue).
6.1.2 Mounting
Position the drive holders (2) and (3) using the spacer (6).
Remove the spacer and mount the drive holders.
Mount the bracket IW (4).
Mount the pin and quick-release fastener (7) to the drive.
58
Space re- quired above
25
28
f
Drive centre
Casement width a
390 390
21
38
f
Drive centre
Casement edge
Casement width a Mounting dimension f
950 - 999 mm 212 mm
1000 - 2400 mm 1/4 a
Range of application:
