GEZE E740 Syncro - Mounting Instructions for Outward-Opening Window

29
Position of the bracket
OW (5) up to 350 mm
casement height
Position of the bracket
OW (5) above 350 mm
casement height
2
3
6
6
3
2
5
5

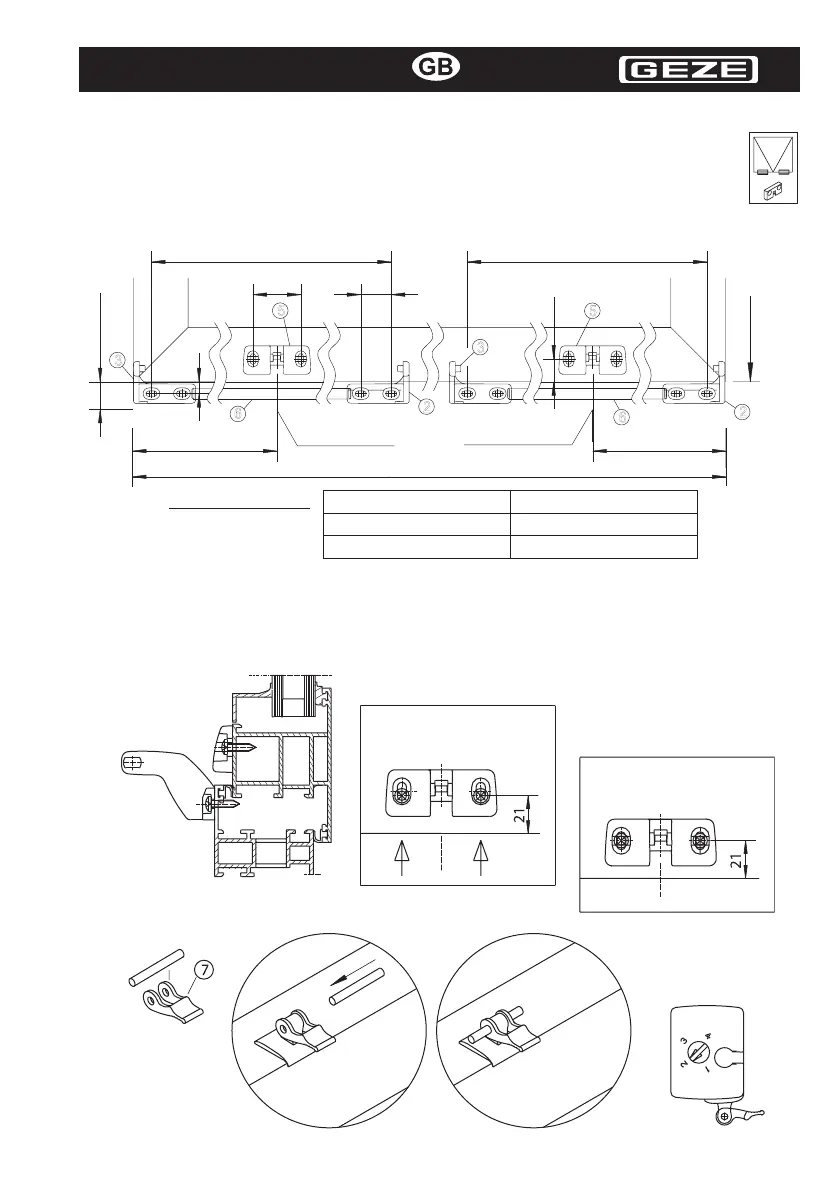

6.2 Mounting instructions for outward-opening window
6.2.1 Drilling template for 2 drives
Drill the tting holes for the drive holders (2), (3) and bracket OW (5),
use the drilling template (colour red).
6.2.2 Mounting
Position the drive holders (2) and (3) using the spacer (6).
Remove the spacer and mount the drive holders.
Mount the bracket OW (5).
Mount the pin and quick-release fastener (7) to the drive.
Drive centre
Drive centre
390
390
44 28
f
Casement width a
f
21
Casement edge
29
Space required
below
Casement width a Mounting dimension f
950 - 999 mm 212 mm
1000 - 2400 mm 1/4 a
Range of application:
