GEZE E740 Syncro - Mounting Instructions Skylight

31
9
8
5
5
8
9

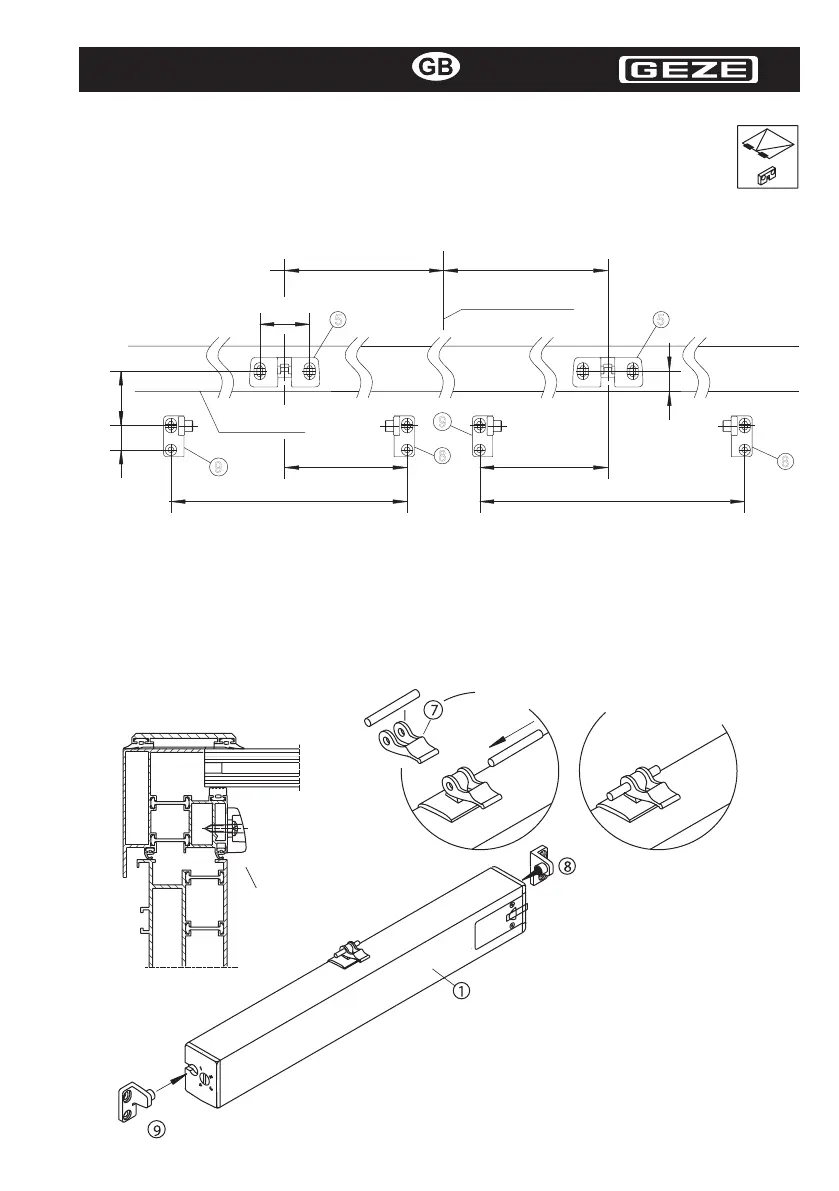

6.3 Mounting instructions skylight
6.3.1 Drilling template for 2 drives
Drill the tting holes for the drive holders (9), (10) and bracket OW (5).
Use the drilling template (colour green).
6.3.2 Mounting
Slide in and position the drive holders for roof windows
(8, 9) at the drive (1).
Mount together with the drive.
Mount the pin and quick-release fastener
(7) to the drive.
Mount the
bracket OW (5).
Window centre
436
436
218 218
f
f
44
21
48
Casement edge
Mounting dimension f = 1/4 window width
