ECdrive H
13
Installation

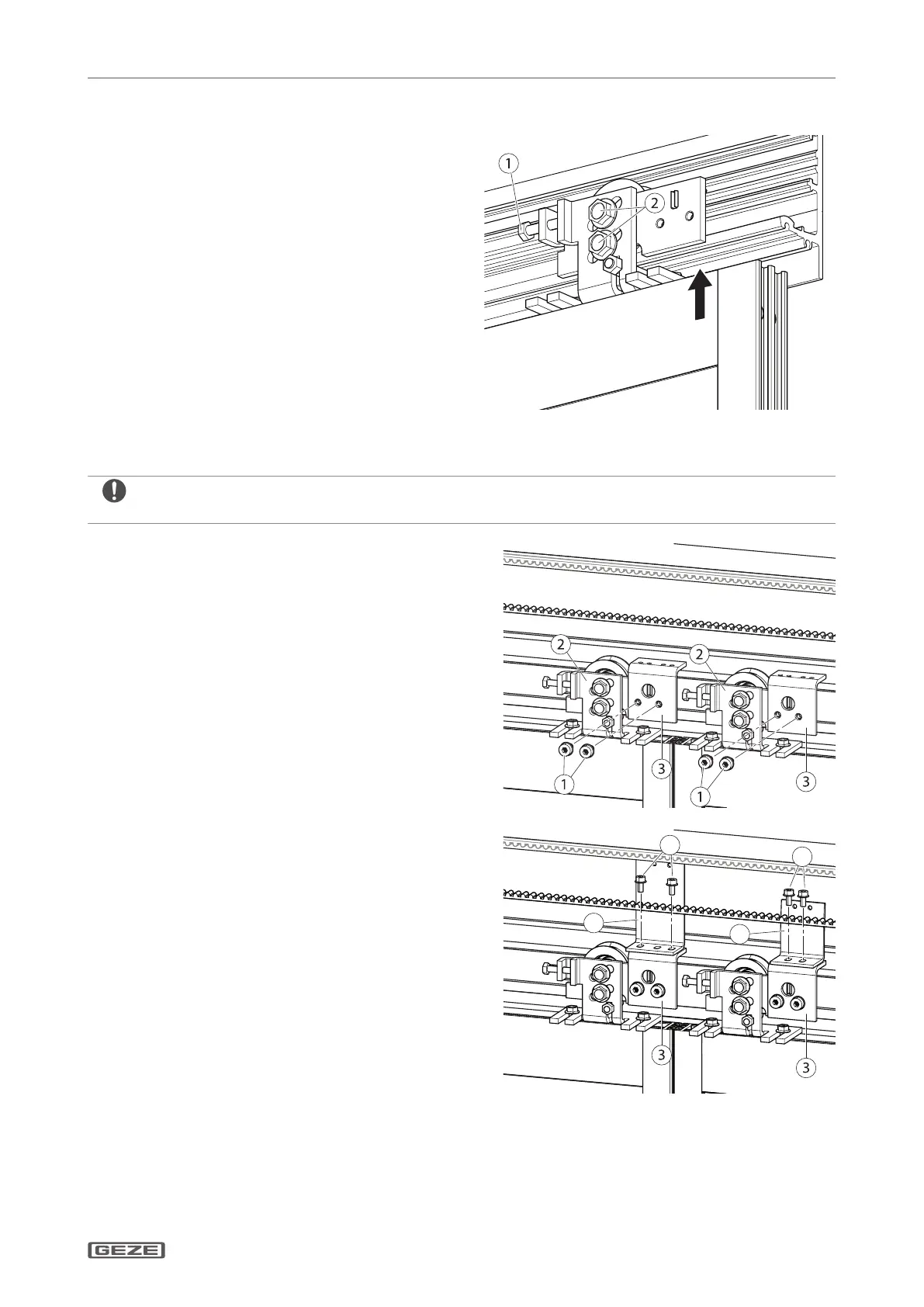

6.2.6 Aligning the door leaves
X
Adjust the height of the door leaf with the
screw(1).
X
Tighten screws (2) after adjusting the door leaf.
X
Install fastening bolt and adjust height.
Gap between bolt and running rail = 0.5mm (cor-
responds to about 4 sheets of copy paper).
6.2.7 Screwing driver onto roller carriage
Drivers must not touch any obstacle over the entire movement path.
X
Secure angle (3) to roller carriage (2) with
2screws (M6) (1).
X
Secure driving long arm (5) and driving short arm
(6) to angle (3) with 2screws (M5) (4).
X
Tighten screws (1) and (4).
4
4
5
6
