ECdrive H
12
Installation

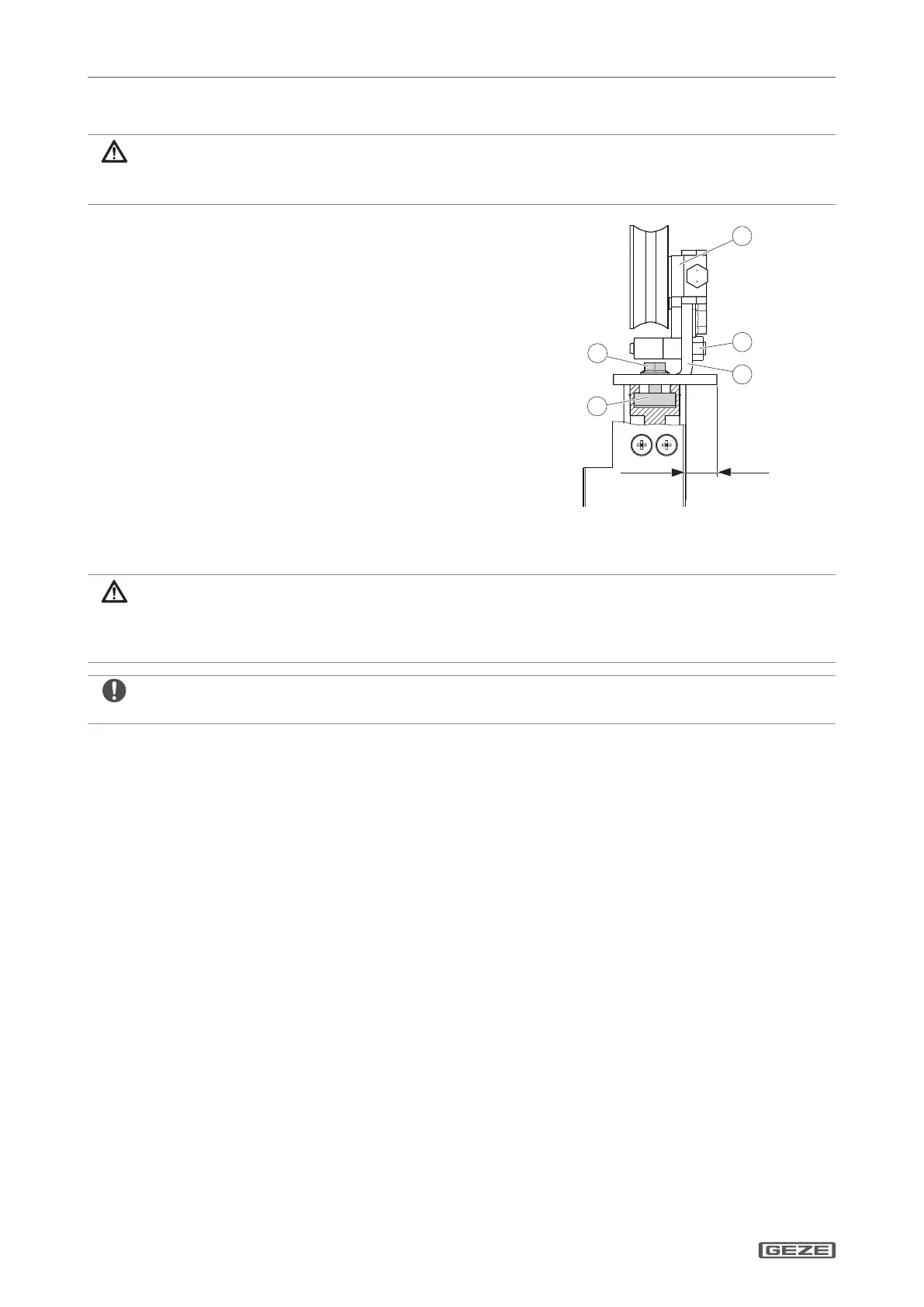

6.2.4 Suspending the door leaves
ATTENTION!
Danger of injury by broken glass!
X
Always mount the door leaf together with another person.
X
Loosen fastening bolt (2).
X
Dismantle roller holder (1) with rollers.
X
Secure bracket support (3) to the top edge of the
door using the square nut (4) and screw (5).
X
Mind shearing and drawing-in spots in accord-
ance with DIN18650. See safety analysis.
6.2.5 Setting up the door leaves
ATTENTION!
Risk of injury caused by crushing!
The door leaves are still unsecured and slide easily.
X
Make sure that the door leaves are not moved accidentally or by unauthorised persons.
X
Clean running rail.
X
Insert carrier roller with roller holder into running rail and secure to bracket support.
