ECturn & ECturn Inside
7
Description
ECturn Inside

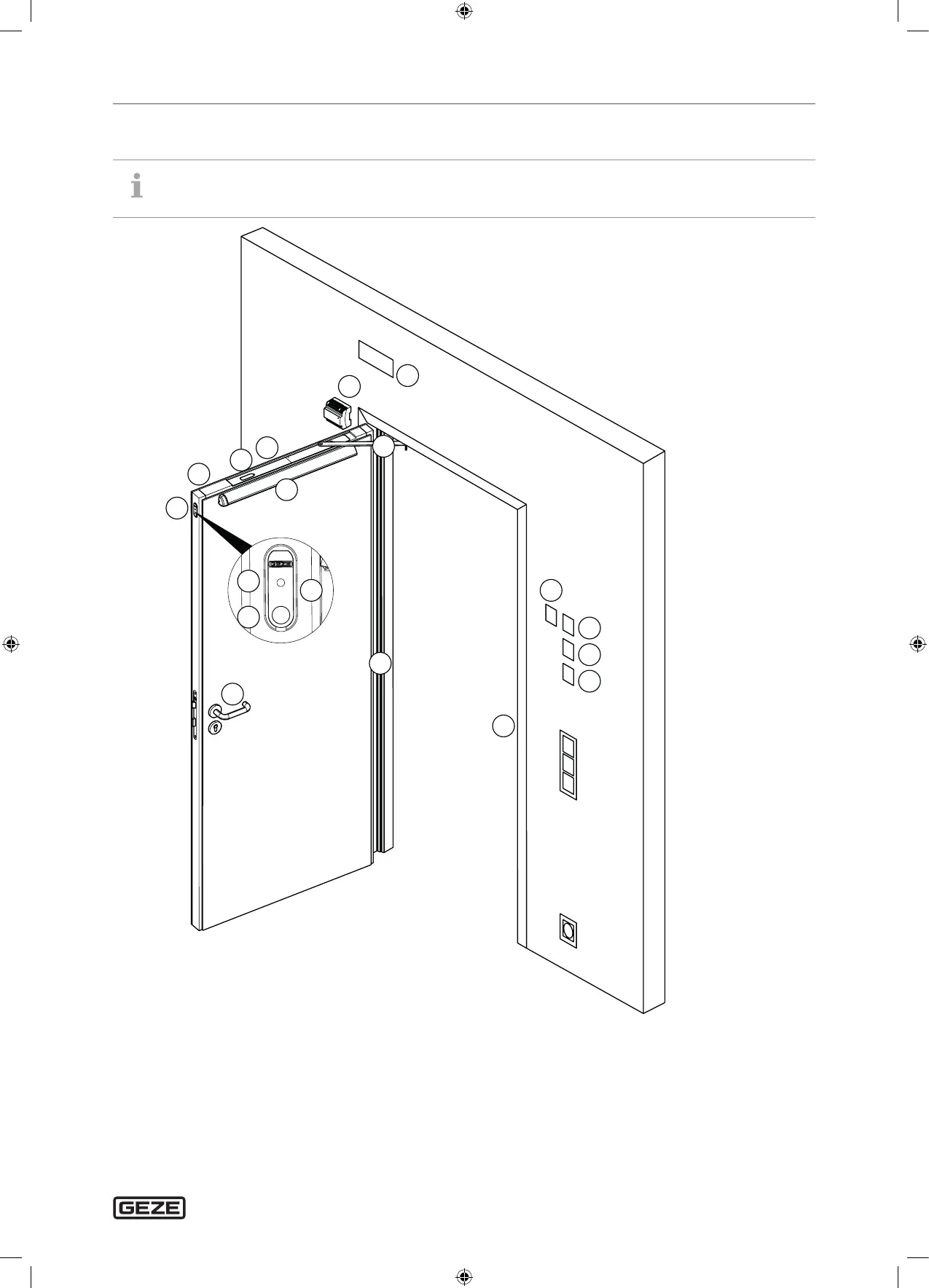

The most important components are shown. Due to the limited number of wires available in the door leaf, only
certain combinations are possible (see wiring diagram ECturn Inside).
2
16
3
1
4
5
6
8
8
7
13
11
17
15
14
12
9
10
1 Mechanical contact (optional)
2 Programme switch (optional)
3 Key switch release programme switch (optional)
4 Stop switch (optional)
5 Electric strike
6 Concealed door transmission cable (optional)
7 Door handle
8 Operating mode switch in the control cover (standard),
alternatively separate e.g. in the main closing edge (optional)
9 Push button mode of operation
10 LED mode of operation
11 Safety indicator open (back of door)
12 Safety indicator close
13 Drive unit
14 Rechargeable battery (optional, in the door leaf)
15 Power supply (in the ush-mounted box)
16 Contact sensor (optional)
17 Lever
