GEZE ECturn User Manual

ECturn & ECturn Inside
8
Description

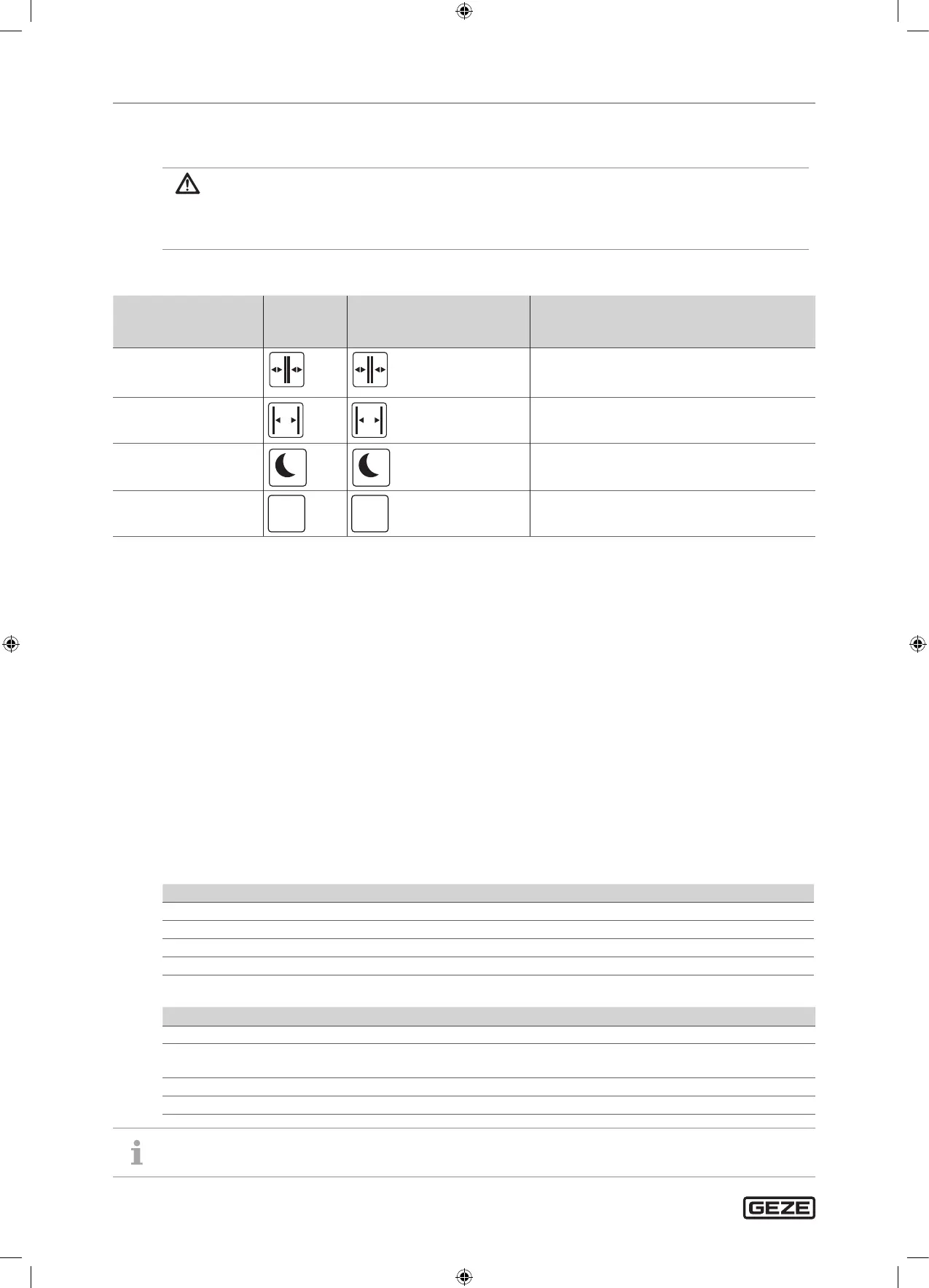

3.3 Overview of modes of operation
CAUTION!
Danger of injury due to impact and crushing!
X
When the rechargeable battery is connected, the drive unit of the door can move, even if the power
supply is disconnected.
The following mode of operation can be set on the ECturn & ECturn Inside:
Mode of operation MPS/MPS-ST/
TPS**
DPS Explanatory notes
Key Display
Automatic
aU
Door opens and closes again.
The activation devices are active.
Refer also to Chapter 3.5.
Hold open
DO
Door remains open.
Night mode
Na
Door opens and closes only when activated using
the key switch
OFF
OFF OFF
Of
Door is enabled and can be moved by hand. The
activation devices are inactive.
*) Mechanical programme switch MPS/mechanical programme switch with integrated key switch MPS-ST (ECturn Inside only)
**) Keypad programme switch
***) Display programme switch
3.4 Operating elements
The modes of operation can be set using the following operating elements:
à Operating modes push button on the drive (refer to chapter 3.4.1)
à Mechanical programme switch MPS with/without integrated key switch (optional) (see chapter 3.4.2) ECturn Inside only
à Keypad programme switch (optional) (see chapter 3.4.4)
à Display programme switch (optional) (see chapter 3.4.3)
à Wireless pushbutton (option) - in wireless channel 1 to select between automatic and hold open (see separate
documentation for the automatic wireless program)
3.4.1 Operating modes switch with mode of operation display
The operating modes switch can be used to select the mode of operation on the drive unit. The operating modes
display lights up in the colour of the current mode of operation:
Operating modes displays
Mode of operation Colour of the operating modes display
O -
Night mode red
Automatic green
Hold open blue
Information and fault displays
State
Colour of the
operating modes display
The control has not been taught yellow (continuous light)
The control has not been initialised yet lights up in the colour of the current mode of operation periodically inter-
rupted by two brief ashing impulses (1Hz)
One or more faults are queued ashes quickly (10Hz) in the colour of the current mode of operation
The operating modes push button is deactivated operating modes display is switched o
In the O mode of operation, there is no fault display on the operating modes display.
